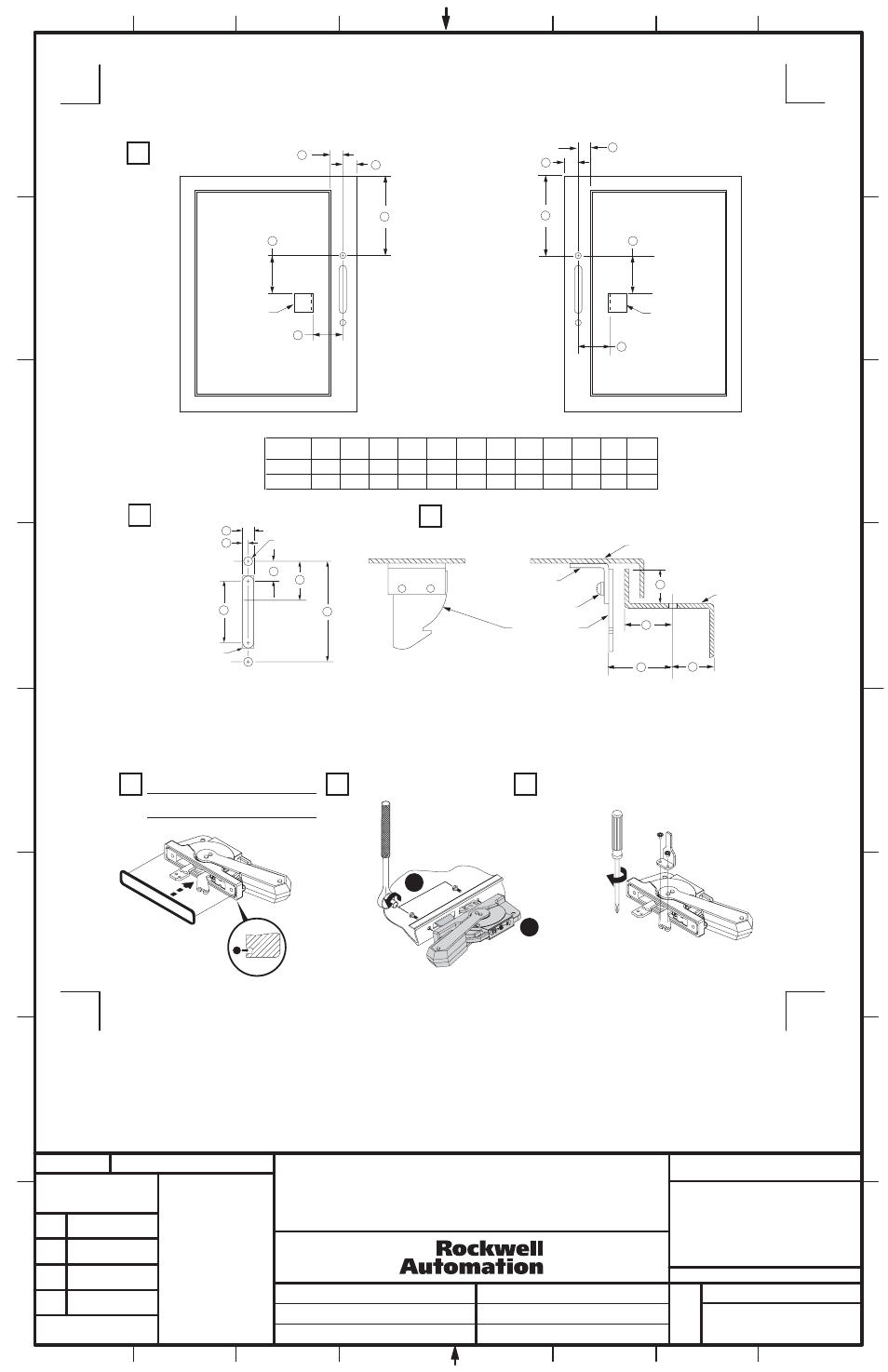

Handle Installation
6
1
3
7-11 lb-in
Door Catch
Mounting
Bracket
E
D
Door Catch
Mounting
Bracket
Locate Handle
Right Hand Flange
Left Hand Flange
Square Corners or 1/4" R.
DIMENSIONS NOT SUITABLE FOR 1494V-R2 HANDLE
(2) - 21/64" Dia. Holes
Drill Handle Holes
D
1 - 7/32"
1 - 5/8"
A
(min)
B
(min)
C
(max)
D
NEMA
SIZE
400A
E
F
G
H
J
600A
1 - 7/32"
1 - 5/8"
3 - 49/64"
6 - 1/2"
3"
5"
9/16"
3 - 49/64"
6 - 1/2"
3"
5"
9/16"
K
1/2"
1/2"
L
1/4"
1/4"
M
3/4"
3/4"
B
C
C
B
A
C
B
A
E
4
2
F
G
M
J
K
L
H
Door Catch
Mounting Bracket
Door Catch
30 lb-in
Enclosure Door
D
Enclosure
Base
Locate Door Catch Mounting Bracket
Install Defeater Lever
(Note: After handle is mounted on the enclosure flange.)
5
Install Handle to Flange
Install Gasket
Notes:
A) Enclosures with a Flange Thickness less than 3/16" use dimensions above.
B) Enclosures with a Flange Thickness 3/16" and greater use dimensions in Mounting Kit 1494V-H6. This kit requires "B" dimension of 1-7/32" min.
C) For large enclosure use 1-1/8" "M" dimension, using large enclosure door hardware (1494V-L3, 1494V-LL3).
D) The door catch mounting bracket is provided with projections for welding; however, holes can be drilled in the bracket using the
projections for locating hole centers. After proper location, it may be used as a template and drill corresponding holes in the enclosure door.
Fasten the bracket with hardware supplied by user. If properly assembled, the hardware should not be accessible for tampering with by
unauthorized personnel.
(2)
14 - 3/16"
18 - 3/16"
29/32"
29/32"
50-65 lb-in
Important: Use grease from grease capsule to keep
o-ring seal in handle groove during installation.
DISCONNECT SWITCH AND ACCESSORY KITS
INSTALLATION INSTRUCTION SHEET
