Table 2 - wiring diagrams, Important – Rockwell Automation 1608S I-Sense User Manual User Manual

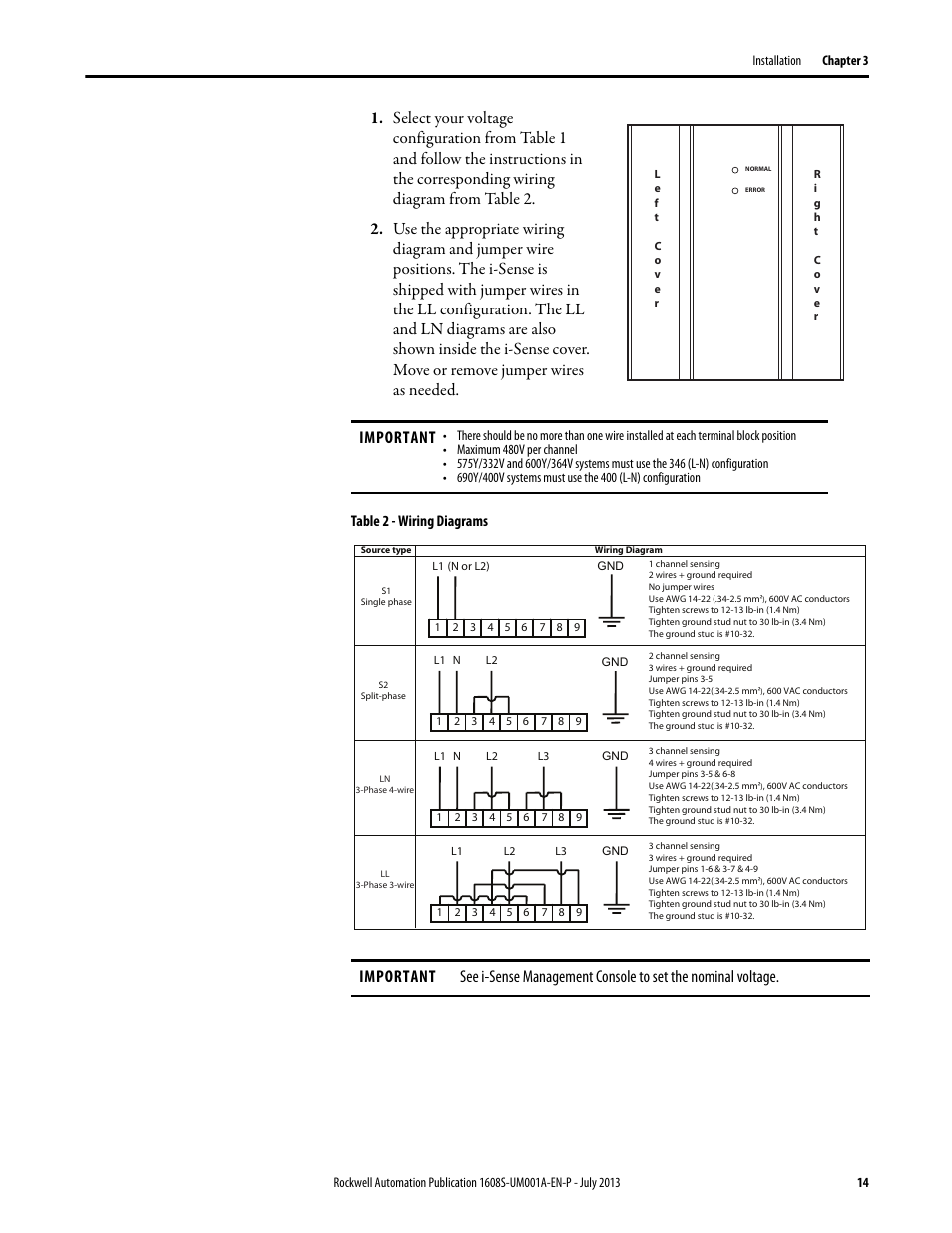

Page 14
