Accessing Terminations For top entry remove the top gland plate, shown in Figure 2 , to access input and
output terminals. This plate may be removed for drilling or punching holes for
conduit. Alternate bottom entry should utilize the bottom gland plate shown in
Figure 1 . Access to the communications port is above the front doors, as shown in
Figure 6 on page 13 . A separate conduit knock-out is provided for top entry of
communications conductors, as shown in Figure 2 .
Note: When punching or drilling holes for conduit fittings, take care to avoid
dropping metallic particles inside the enclosure. Metallic contamination will void
the product warranty.

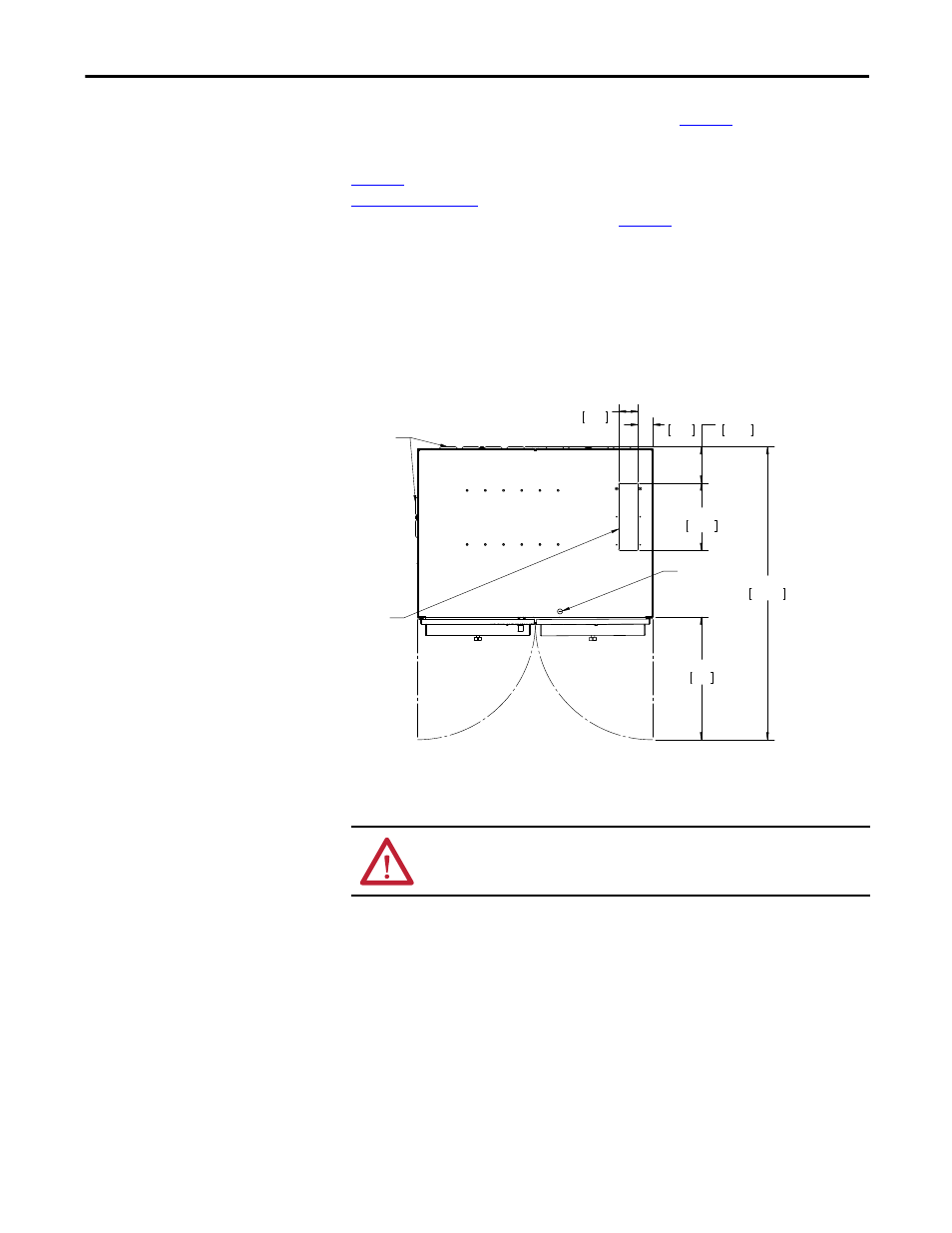

Figure 2 - Top Conductor Entry
$5($
5(&200(1'('
)25723
&21'8,7(175<
6+2:1:,7+287
&29(5
0,1,080
>@&/($5$1&(
72%(0$,17$,1('
)5206,'($1'%$&.
/289(5('9(176
)253523(5&22/,1*
'2256:,1*
,2.12&.287
WARNING: Metallic particles inside the enclosure will void the warranty.
