All parameters are specified at 124V, 1.3A, 230Vac input, 25°C ambient and after a 5 minutes run-in time, unless noted otherwise.
4 Rockwell Automation Publication 1606-RM006A-EN-P - January 2014
Bulletin 1606 Switched Mode Power Supplies
3. AC Input
AC input nom. AC 100-240V -15% / +10%, TN/TT/IT-mains
AC input range 85-264Vac continuous operation
264–300Vac < 0.5s
Allowed voltage L or N to earth max. 264Vac or 375Vdc
Input frequency nom. 50–60Hz ±6%
Turn-on voltage typ. 46Vac see Fig. 3-1
Shut-down voltage typ. 44Vac see Fig. 3-1
AC 100V AC 120V AC 230V
Input current (rms) typ. 0.63A 0.54A 0.3A at 24V, 1.3A see Fig. 3-3
Power factor *) typ. 0.55 0.52 0.49 at 24V, 1.3A see Fig. 3-4
Crest factor **) typ. 3.1 3.3 3.9 at 24V, 1.3A
Start-up delay typ. 90ms***) 90ms***) 90ms***) see Fig. 3-2
Rise time typ. 40ms 40ms 40ms at 24V, 1.3A, 0mF, see Fig. 3-2
typ. 90ms 90ms 100ms at 24V, 1.3A, 1.3mF
Turn-on overshoot max. 250mV 250mV 250mV see Fig. 3-2
*) The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.
**) The crest factor is the mathematical ratio of the peak value to RMS value of the input current waveform.
***) At low temperatures, start-up attempts may occur which extends the start-up delay

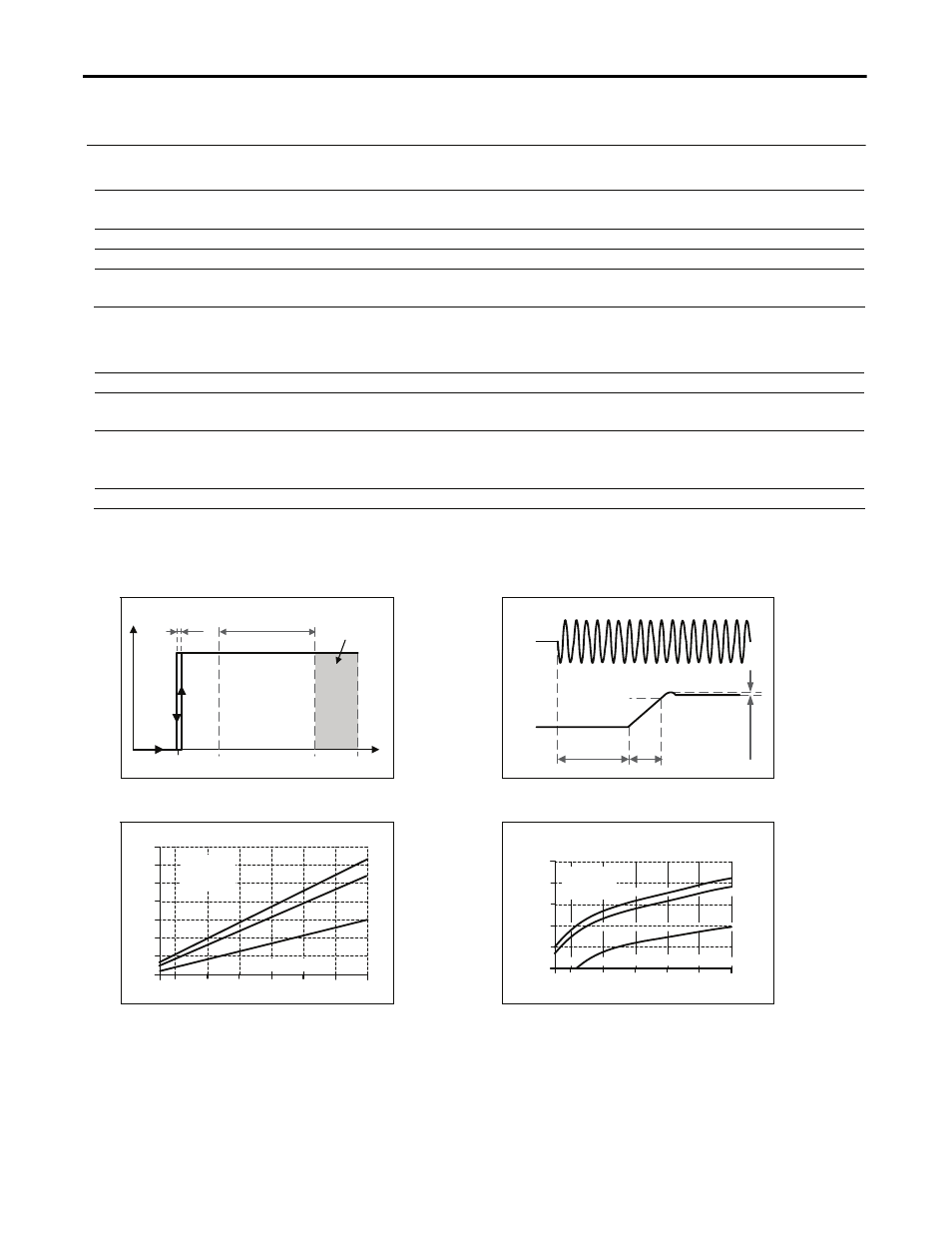

Fig. 3-1 Input voltage range Fig. 3-2 Turn-on behavior, definitions
Turn-on
85V
Rated
input range max.
500ms
V
IN
P
OUT
45V 300Vac 264V
Shut
-down
2V
Start-up
delay
Rise
Time
Overshoot
- 5%
Output
Voltage
Input
Voltage
Fig. 3-3 Input current vs. output load at 24V Fig. 3-4 Power factor vs. output load at 24V
1.3A 0.3 0.5 0.9 0
0
0.2
0.7A
Input Current, typ.
1.1
0.4
0.7
0.5
0.3
0.1
0.6
b
c
a
0.1
a) 100Vac
b) 120Vac
c) 230Vac
Output Current
1.3A 0.3 0.5 0.7 1.1
0.40
0.45
0.50
0.55
0.60
0.65
Power Factor, typ.
a) 100Vac
b) 120Vac
c) 230Vac
b
c
a
0.9
Output Current
