All parameters are specified at 124V, 1.3A, 230Vac input, 25°C ambient and after a 5 minutes run-in time, unless noted otherwise.
2 Rockwell Automation Publication 1606-RM006A-EN-P - January 2014

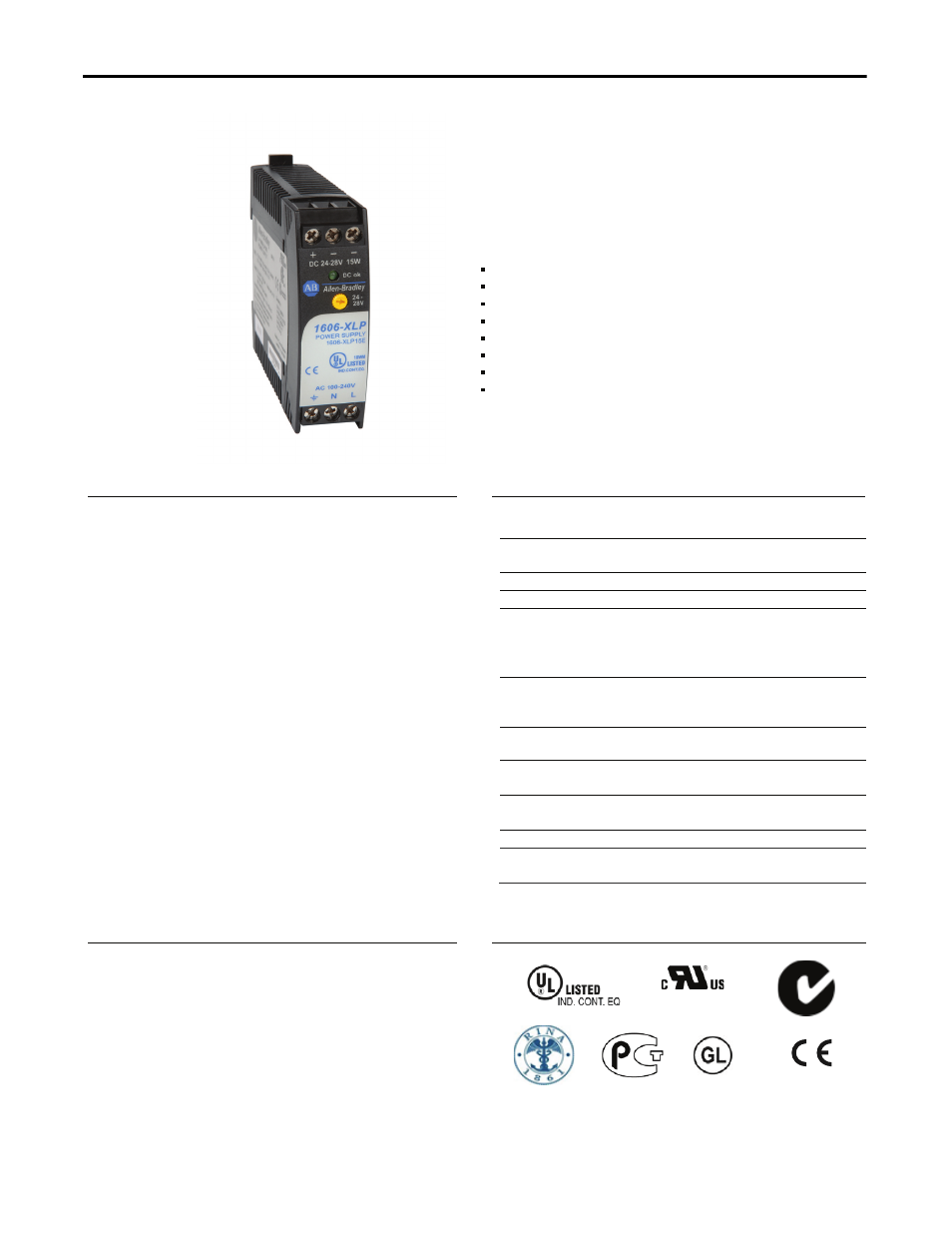

Bulletin 1606 Switched Mode Power Supplies
Power Supply
100-240V Wide Range Input
NEC Class 2 Compliant
Adjustable Output Voltage
Efficiency up to 89.4%
Compact Design, Width only 22.5mm
Full Power between -10°C and +60°C
Large International Approval Package
3 Year Warranty
Description
Compact size, light weight, easy installation onto the
DIN rail and the utilization of quality components only
are what makes this family of power supplies so easy to
deploy and use within seconds.
The rugged electrical and mechanical design as well as a
high immunity against electrical disturbances on the
mains provide reliable output power. This offers
superior protection for equipment connected to the
public mains network or exposed to harsh industrial
environments.
This small-footprint series offers output voltages from
5 to 56Vdc and a power rating from 15W to 120W.
Specification Quick Reference
Output voltage DC 24V
Adjustment range 24 - 28V
Output current 1.3A at 24V
1.1A at 28V
Output power 30W
Output ripple < 50mVpp 20Hz to 20MHz
Input voltage AC 100-240V -15% / +10%
Mains frequency 50-60Hz ±6%
AC Input current 0.54 / 0.3A at 120 / 230Vac
Power factor 0.52 / 0.49 at 120 / 230Vac
AC Inrush current typ. 18 / 35A peak value at
120 / 230Vac 40°C
and cold start
DC Input 88-375Vdc below 110Vdc
derating required
Efficiency 88.5 / 89.4% at 120 / 230Vac
Losses 4.1 / 3.7W at 120 / 230Vac
Temperature range -10°C to +70°C operational
Derating 0.8W/°C +60 to +70°C
Hold-up time typ. 31 / 141ms at 120 / 230Vac
Dimensions 22.5x75x91mm WxHxD
Weight 140g / 0.31lb
Catalog Numbers
Power Supply 1606-XLP30EQ 24-28V Standard unit
Certifications
UL 508
UL 60950-1
NEC Class 2
Marine EMC, LVD, RoHS
GOST R RINA
C-TICK
