Enclosure without handle cutout, Right hand flange, Left hand flange – Rockwell Automation 1494V-DSxx Series D Variable Depth Disconnect Switch User Manual

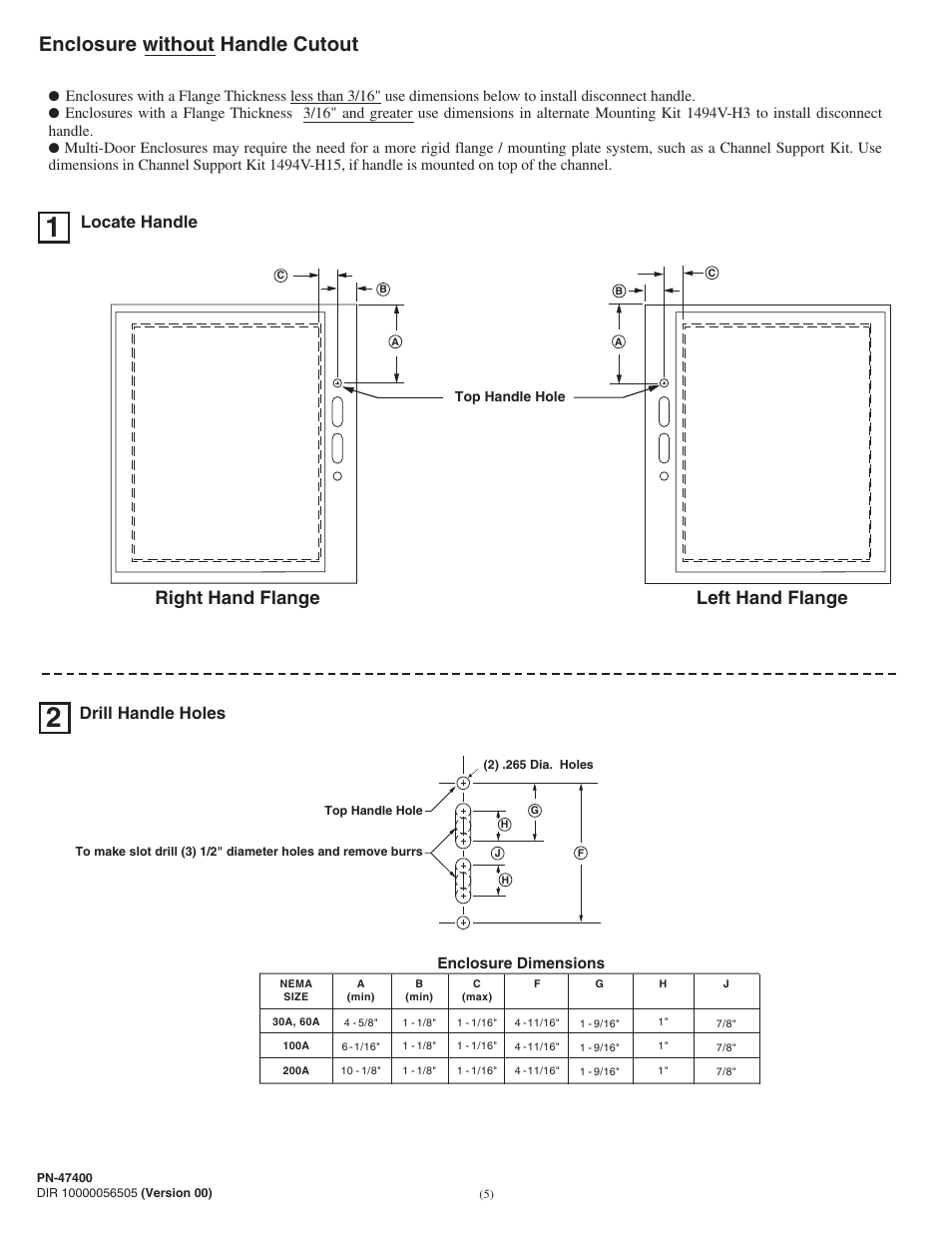

Page 5: Locate handle, Drill handle holes
