All parameters are specified at 24V, 2.5A, 230Vac input, 25°C ambient and after a 5 minutes run-in time, unless noted otherwise.
Rockwell Automation Publication 1606-RM007A-EN-P - February 2014 5
Bulletin 1606 Switched Mode Power Supplies
Fig. 3-5 De-rating requirements for
low input voltages
0
85Vac
10
20
30
40
50
60W
Input Voltage
A... < +45°C
B... < +60°C
A
B
90Vac
Allowable
Output Power
4. Input Inrush Current
A NTC limits the input inrush current after turn-on of the input voltage. The inrush current is input voltage and
ambient temperature dependent.
The charging current into EMI suppression capacitors is disregarded in the first microseconds after switch-on.
AC 100V AC 120V AC 230V
Inrush current max. 17A
peak
21A
peak
40A
peak
40°C ambient, cold start
typ. 14A
peak
16A
peak
32A
peak
40°C ambient, cold start
Inrush energy typ. 0.15A 2 s 0.2A 2 s 1.0A 2 s 40°C ambient, cold start

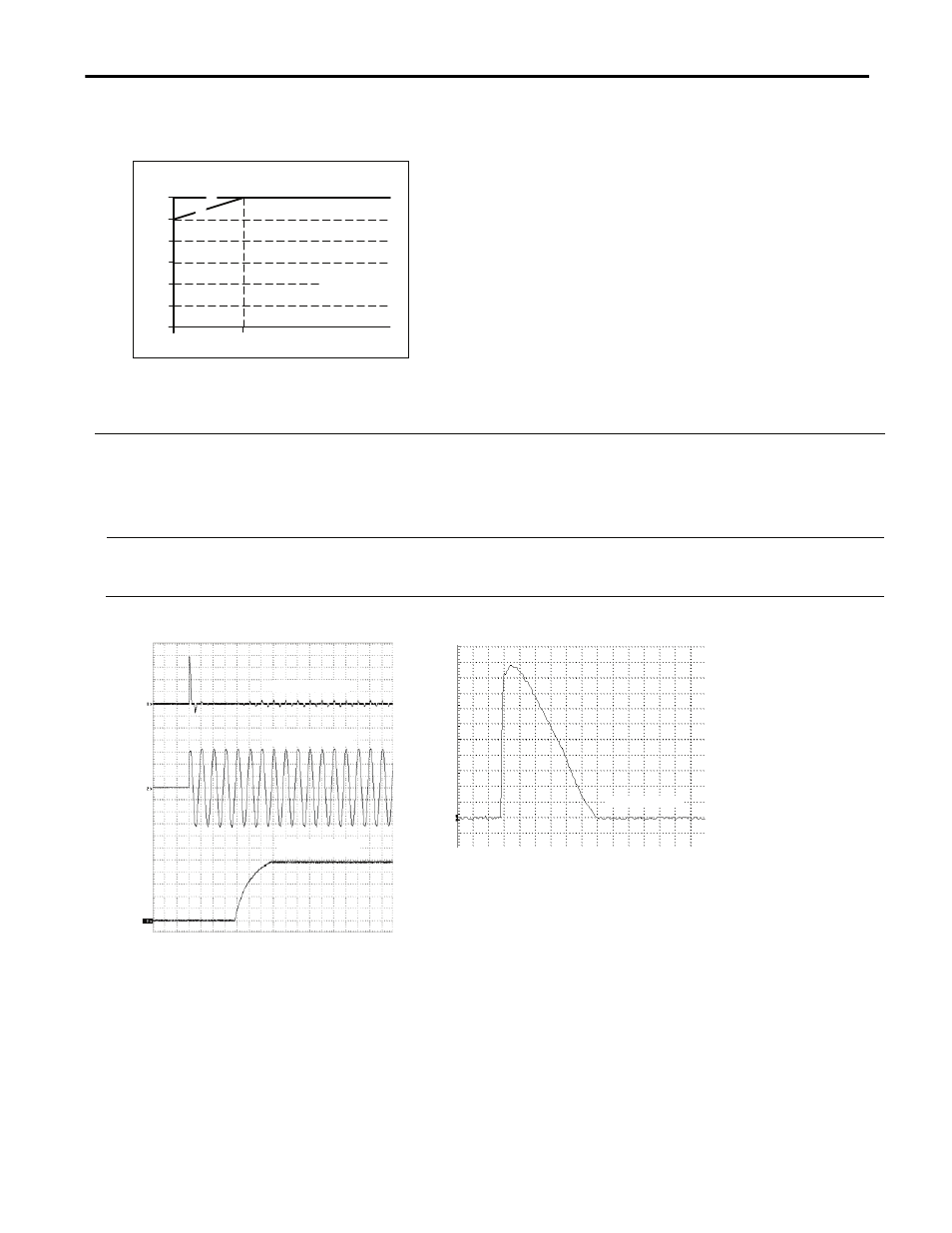

Fig. 4-1 Input inrush current, typical behavior Fig. 4-2 Input inrush current, zoom into first peak
Input Voltage
Input Current
Output Voltage
Input Current
Input: 230Vac
Output: 24V, 2.5A
Ambient: 25°C
Input current 2A/DIV
Time basis:
0.5ms / DIV
Input: 230Vac
Output: 24V, 2.5A
Ambient: 25°C
Upper curve:
Input current 5A/DIV
Middle curve: Input voltage 100V/DIV
Lower curve: Output voltage 5V/DIV
Time basis: 20ms / DIV
