Parameters and Programming 5-7
38 [Boost Select]

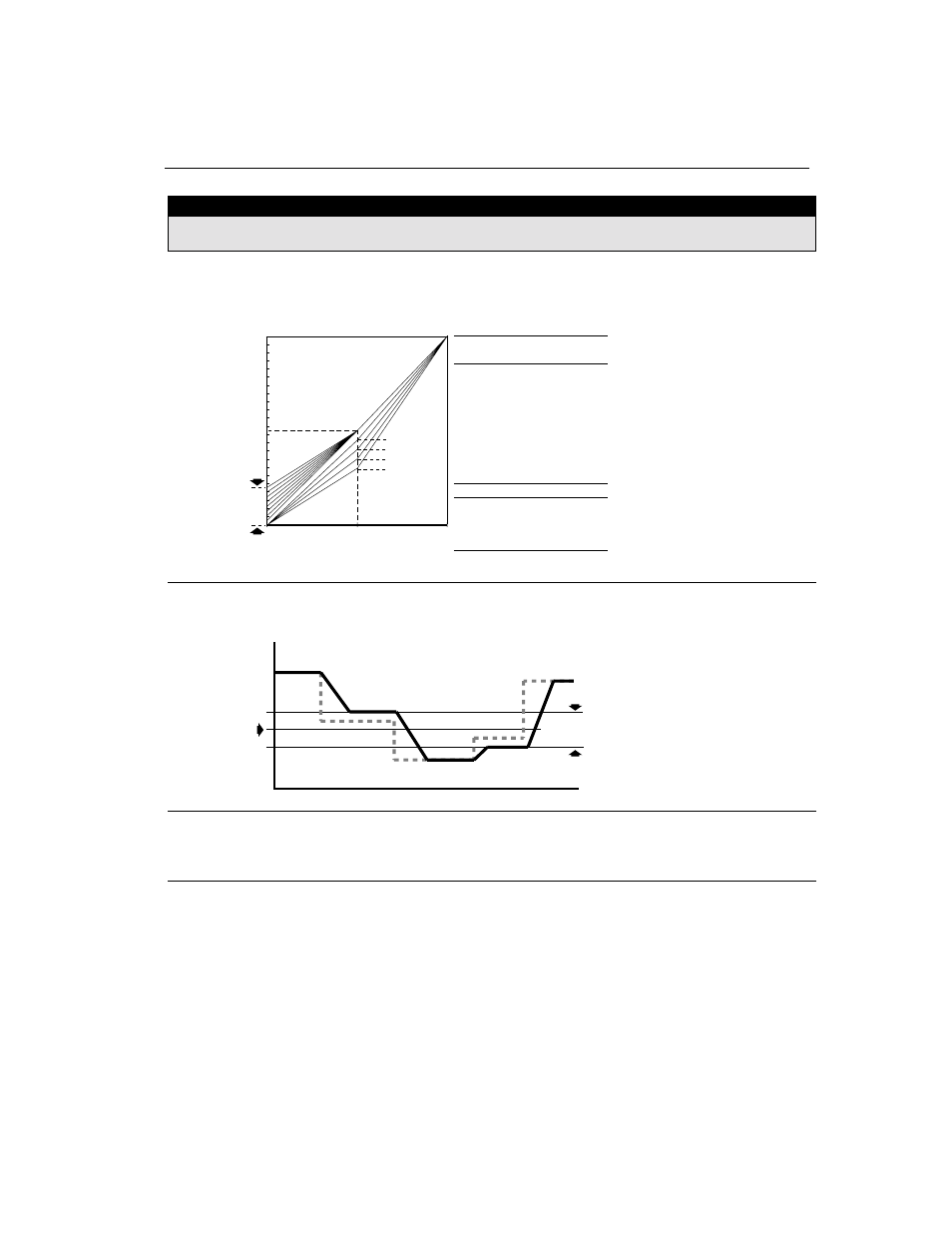

Sets the boost voltage and redefines the Volts per Hz curve. Settings 0 – 8 can
provide increased torque at low frequency. Settings 9 – 12 are used to reduce
energy consumption.
0/12 Numeric
Value 2
39 [Skip Frequency]
Works in conjunction with P40 - [Skip Frequency Band] creating a range of
frequencies at which the drive will not operate continuously.
0/240 1 Hz 240 Hz
40 [Skip Frequency Band]
Determines the band around the P39 - [Skip Frequency] parameter. The actual
band width will be 2 times P40 - [Skip Frequency Band] - 1/2 the band above and
1/2 the band below. A value of zero will disable the skip frequency.
0/30 1 Hz 0 Hz
Program Group
No. Parameter Name/Description
Min./Max.
Range
Units
Factory
Default
% [Base Frequency]
% [Base
Vo
ltage]
100
50
1/2 Base Volts
1/2
Base Freq.
9
10
11
12
0 50 100
1
8
See
Settings 1-8
Setting Boost Voltage
(% of [Base Voltage])
0
1
2
3
4
5
6
7
8 0
2.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
Setting Fan/Pump Curves ➊
9
10
11
12 45.0
40.0
35.0
30.0
➊ Break Point Voltages in percent of [Base Voltage]
tu
pt
u
O
y c n e u q e r F
r e ll o r t n o C
Frequency
Time
Skip
Frequency
Setting
Command
Frequency
2 x P40
[Skip Freq Band]
Setting
