GuardShield™ Safe 2 Safety Light Curtain User Manual
21
R
Original instructions

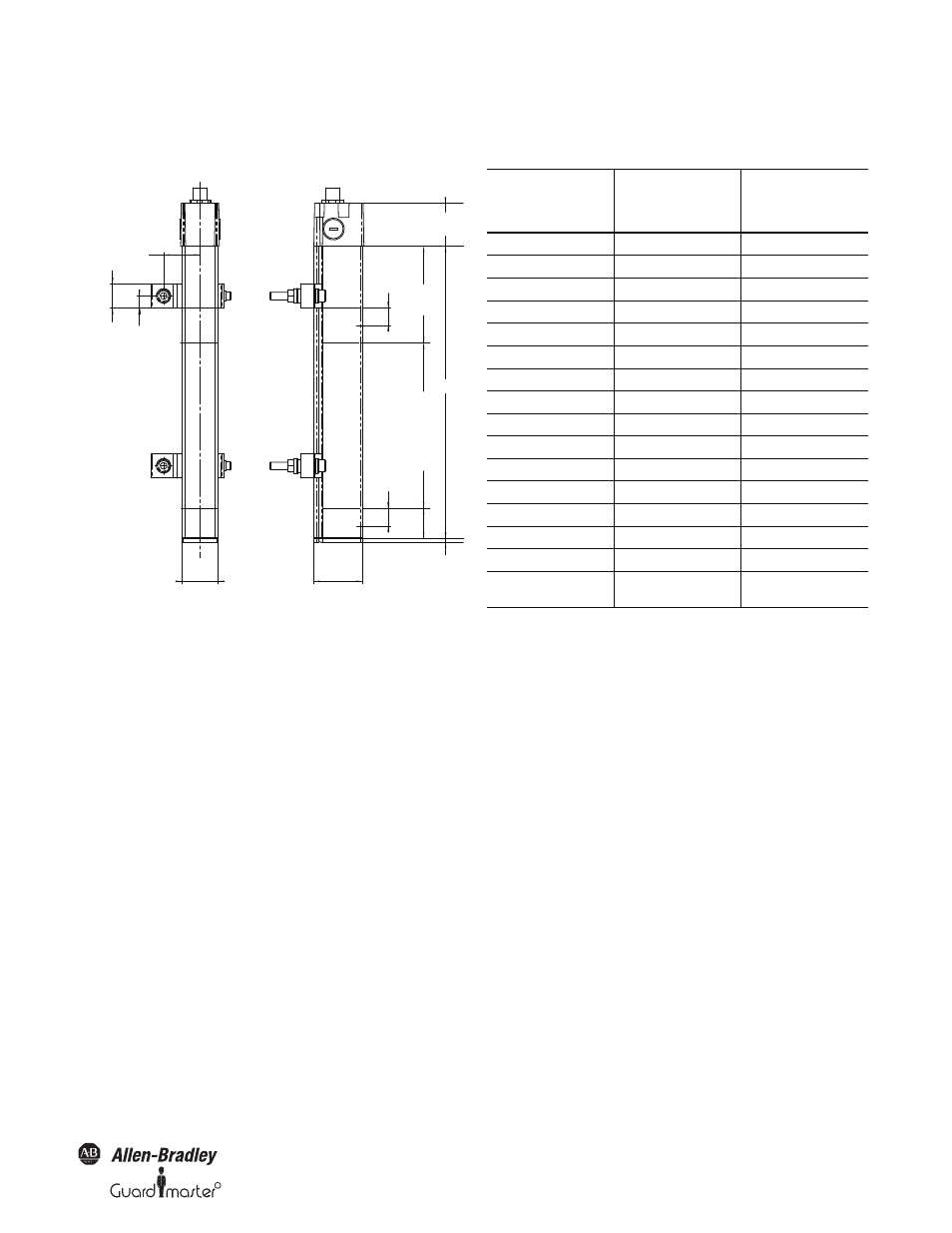

Dimensional Drawings [mm (in.)]
Figure 20: Safe 2
Type
A
Protective Height
[mm (in.)]
B
Profile Length
[mm (in.)]
445L-P2S0120YD
120 (4.7)
290 (11.4)
445L-P2S0240YD
240 (9.4)
410 (16.1)
445L-P2S0360YD
360 (14.2)
530 (20.9)
445L-P2S0480YD
480 (18.9)
650 (25.6)
445L-P2S0600YD
600 (23.6)
771 (30.4)
445L-P2S0720YD
720 (28.3)
891 (35.1)
445L-P2S0840YD
840 (33.1)
1011 (39.8)
445L-P2S0960YD
960 (37.8)
1131 (44.3)
445L-P2S1080YD
1080 (42.5)
1252 (49.3)
445L-P2S1200YD
1200 (47.2)
1372 (54.0)
445L-P2S1320YD
1320 (52)
1492 ( 58.7)
445L-P2S1440YD
1440 (56.7)
1612 (63.5)
445L-P2S1560YD
1560 (61.4)
1733 (68.2)
445L-P2S1680YD
1680 (66.1)
1853 (72.9)
445L-P2S1800YD
1800 (70.9)
1973 (77.6)
445L-P2S1920YD
1920 (75.6)
2093 (82.3)
20
(0.79)
10
(0.39)
30
(1.18)
30
(1.18)
40
(1.56)
3
(0.12)
25
(0.98)
14.75
(0.58)
alignment
module
laser
A
protection length
B
profile length according to table
145
(5.71)
14.75
(0.58)
35
(1.38)
alignment
module
laser
alignment
module
laser
alignment
module
laser
