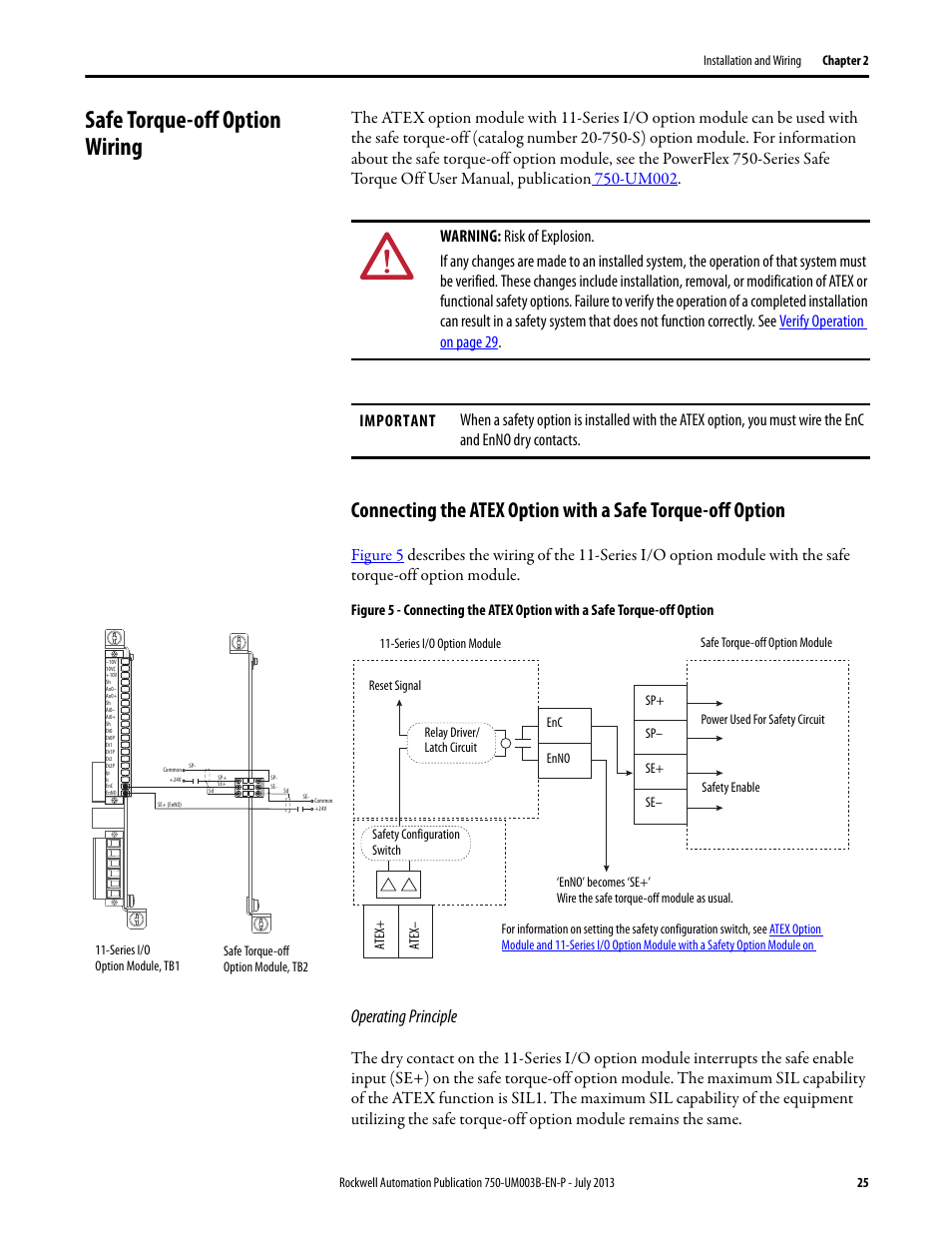

Safe torque-off option wiring, Operating principle – Rockwell Automation 20-750-ATEX PowerFlex 750-Series ATEX Option Module User Manual
Page 25
