1-6 Introduction
Display Description
The keypad has a four-character LED display which shows parameter numbers,
parameter values, and fault codes. The keypad monitors its connection to the drive.

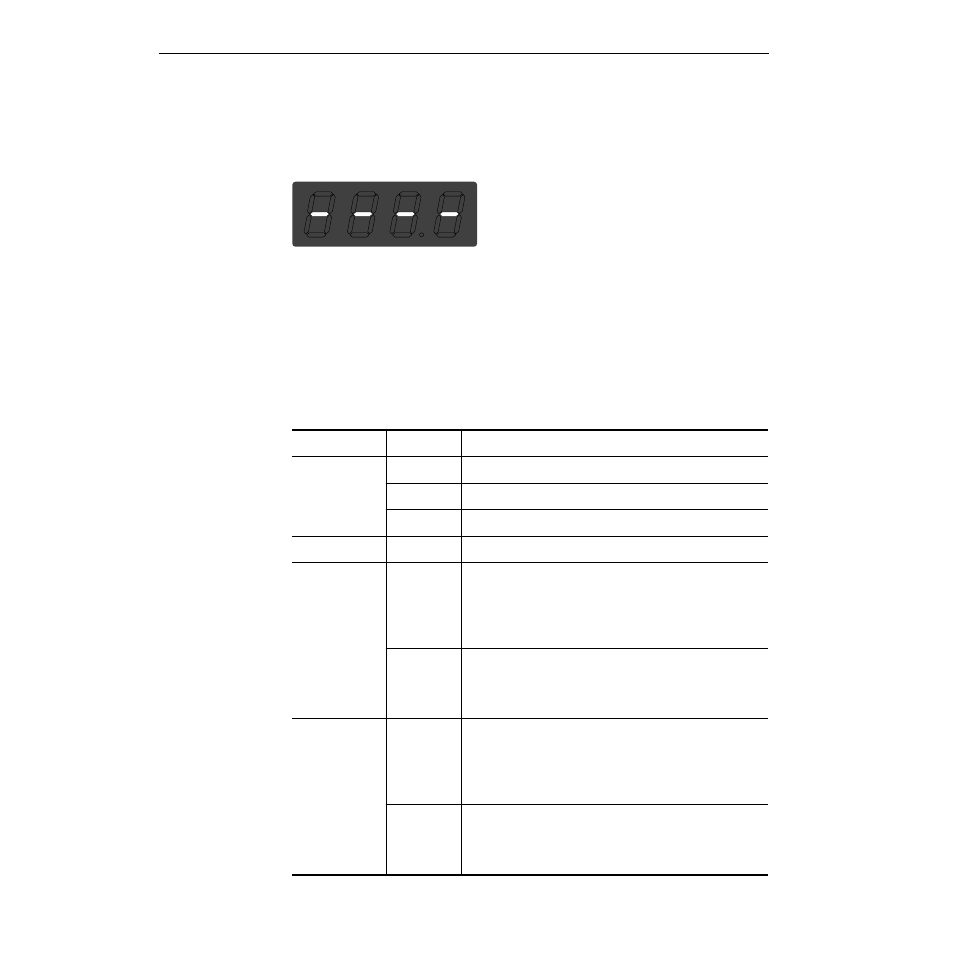

If this connection fails due to electrical noise or a hardware failure, the following
is displayed.
If the drive faults, the display will flash indicating the presence of the fault, and
the fault code will be displayed. Pressing the Up or Down arrow, Enter, or Escape
key will return the keypad to Display mode. If the fault condition is reset without
pressing one of these keys, the display will return to the display or program
parameter that was selected prior to the occurrence of the fault.
Drive Status Indicators
The keypad has four status LEDs which serve as mode and direction indicators.
LED Functions Table 1.B
Name Status Description
PROGRAM On The keypad is in Program mode.
Off The keypad is in Display mode.
Flashing The keypad is in Edit mode.
RUN On The drive is running.
FORWARD On If keypad control is selected (P46 = 2 or 6), this LED will turn on
if the direction commanded by the keypad is forward.
If keypad control is not selected, this LED will turn on when the
drive is running forward.
Flashing The FORWARD LED will flash when the drive is commanded to
change direction from forward to reverse and will stop flashing
when the motor decelerates to zero. The REVERSE LED will
illuminate indicating the commanded direction.
REVERSE On If keypad control is selected (P46 = 2 or 6), this LED will turn on
if the direction commanded by the keypad is reverse.
If keypad control is not selected, this LED will turn on when the
drive is running reverse.
Flashing The REVERSE LED will flash when the drive is commanded to
change direction from reverse to forward and will stop flashing
when the motor decelerates to zero. The FORWARD LED will
illuminate indicating the commanded direction.
