Rockwell Automation 21G 750-Series POD Remote Mounting Kit User Manual
Page 9
Rockwell Automation Publication 750-IN015B-EN-P - September 2011
PowerFlex 750-Series Control Pod Remote Mounting Kit
9
8.
Disconnect the factory installed internal 24V power supply cable from
converter terminal block TB1 mounted on the converter control panel
right side wall.
9.
Disconnect the factory installed inverter fiber-optic cable from the INV
transceiver located on the power layer interface board.

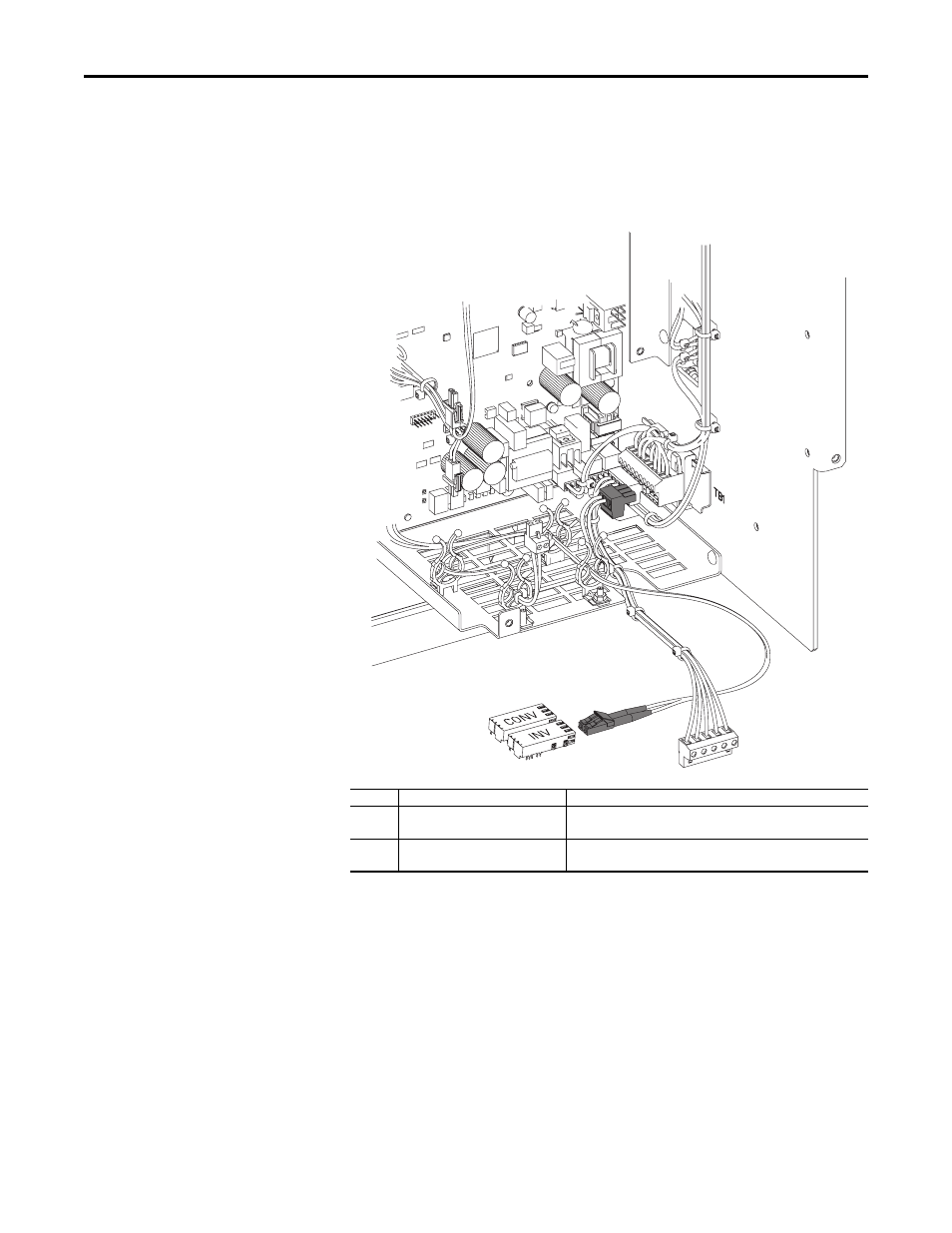

No.
Name
Description
➊
Internal 24V Power Connection Three point connector disconnects from TB1 mounted on
converter control panel right side wall.
➋
Inverter Fiber-optic Connection
Fiber-optic cable disconnects from INV fiber-optic
transceiver on power layer interface board in card cage.
➊
➋
