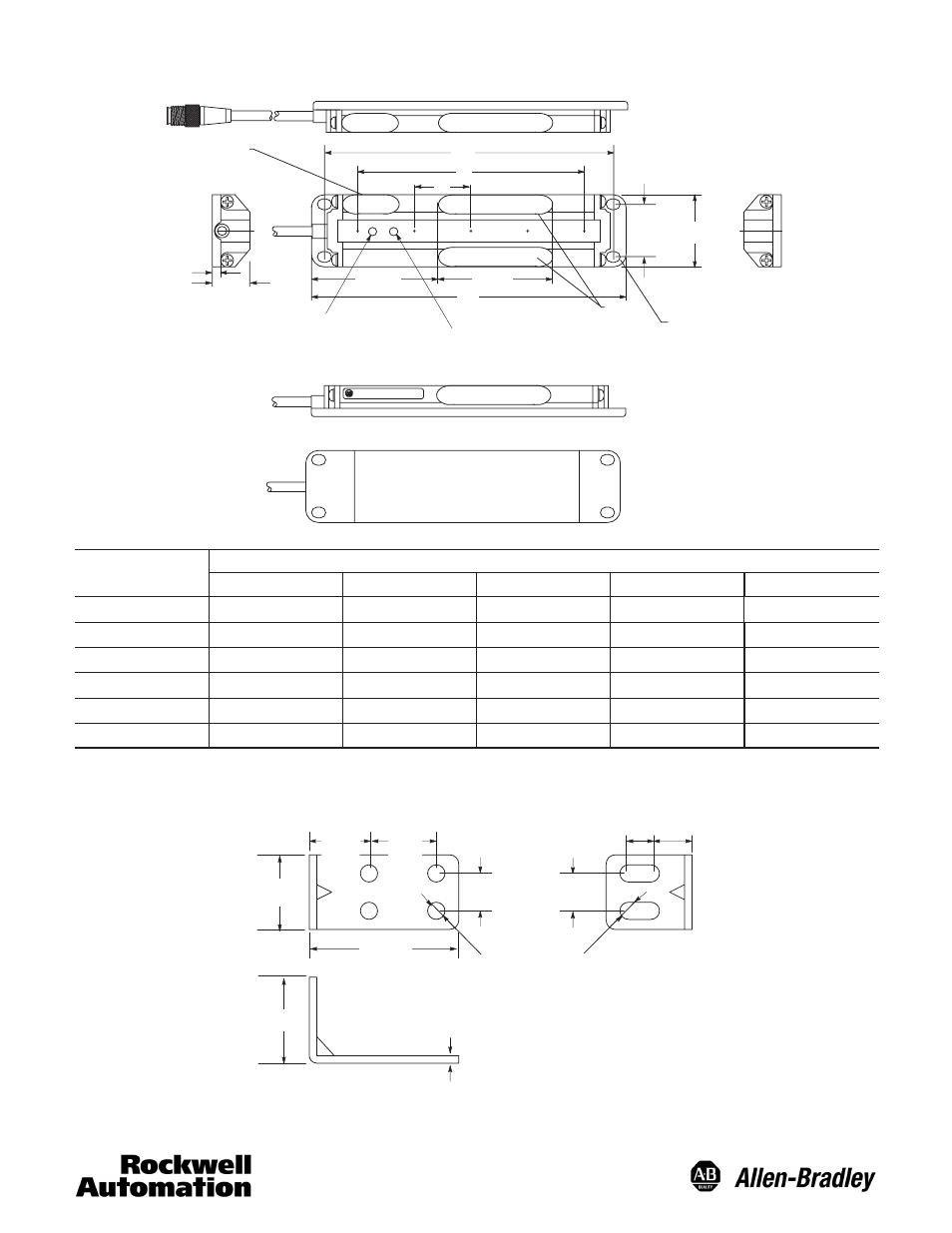

Dimensions—mm (inches)
P
18
(0.7)
32
(1.25)
L1
Job
Indicator
4.5 (0.17) Dia.
M
57 (2.24) 51 (2.0)
L2
Switch Cover
Light Status Indicator,
Green/Orange (Receiver)
Power, Green (Retro/Diffuse)
Dark Indicator, Orange (Receiver)
Power Indicator, Green (Transmitter)
Output ON Indicator, Orange (Retro/Diffuse)
13
(0.51)
4.0 (0.15)
45PVR-1LEB1-F4 Ser A
Dimensions—mm (inches)
Cat. No. N Ê M L1 L2 P
45PVA-1LEB1-F4 5 100 (3.9) 130 (5.1) 140 (5.5) 25 (1.0)
45PVA-1LEB2-F4
10 225 (8.9) 255 (10.0) 265 (10.4) 25 (1.0)
45PVA-1LEB3-F4 13 300 (11.8) 330 (13.0) 340 (13.4) 25 (1.0)
45PVA-1LEB4-F4
16 375 (14.8) 405 (16.0) 415 (16.3) 25 (1.0)
45PVA-2LEA1-F4 4 87 (3.4) 130 (5.1) 140 (5.5) 29 (1.1)
45PVA-2LEA2-F4 8 203 (8.0) 255 (10.0) 265 (10.4) 29 (1.1)
Ê N = Number of optical axis.
Accessories
Mounting Brackets
11
(0.43)
6
(0.23)
4.6
(0.18) Dia.
4.6
(0.18) Dia.
10
(0.39)
10
(0.39)
20
(0.78)
40 (1.57)
16
(0.63)
18
(0.7)
2 (0.07)
23
(0.91)
#60-2773 (2 brackets)
(included)
