Rockwell Automation 45PVA Part Verification Array - Manual (Page 5)

5
DistanceĊm (ft)
Typical Specified
1
(3.3 ft)
0 0.5
(1.6 ft)
1.5
(4.9 ft)
2
(6.6 ft)
20
30
40
50
60
70
80
90
0
10
Minimum Object SizeĊmm

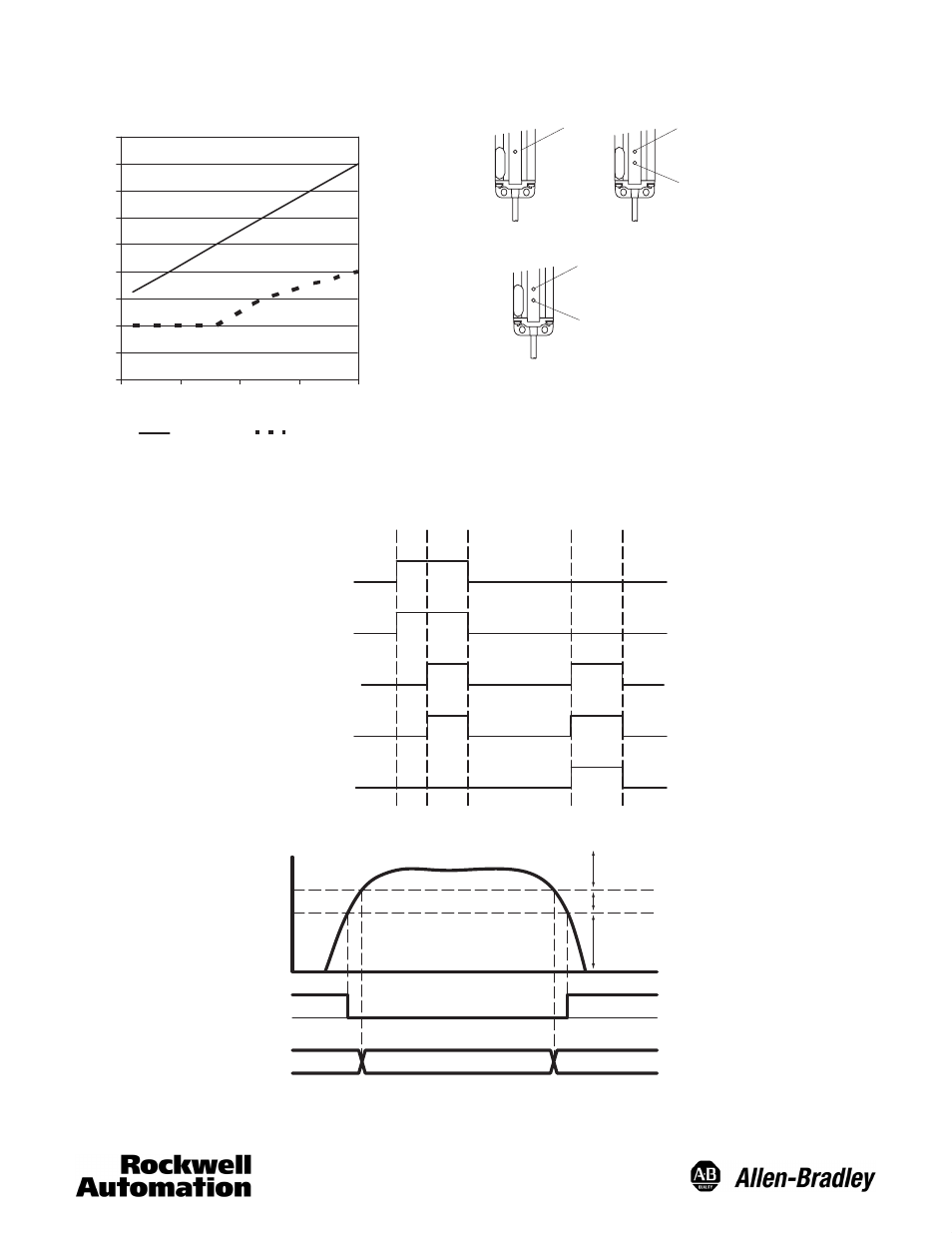

Minimum Detectable Object Size
Retroreflective Mode
Transmitter Receiver
Power Indicator
(Green)
Dark Indicator (Orange)
Lights when the beam is interrupted
Light Status Indicator (Green/Orange)
Green: Stable light condition (>1.5 x gain).
Orange: Misaligned or interrupted beam.
Retroreflective/Diffuse
Output Indicator (Orange)
Power Indicator (Green)
Blinks orange & green during power up sensitivity
adjustment
Operating Indicator
Job Indicator & Warning Indicator
The green job indicator LED is on when the input to the PVA is on. The output signal is turned on when the target is present
(when in Dark On or Normally Open mode). For example, when the operator’s hand is in the bin. The red warning indicator is on
when the target is present and the input is off.
OFF ON OFF
Input
Green Job Indicator (determined by input)
Target Present (operator hand in bin)
Output (determined by target present)
Red Warning Indicator
ON
ON
ON
ON
ON
ON
Light Margin and Operating Indicators (transmitted beam receiver only)
Dark Indicator
(Orange)
Light status
Indicator
x1.5
x1.0
Operating Level
Stable light
area
Unstable light
area
Dark area
Light
Orange
Green
Light
Orange
Note: Use a dry, soft cloth for cleaning the lens and case. Lightly wipe it off. Never use solvents such as thinner.
