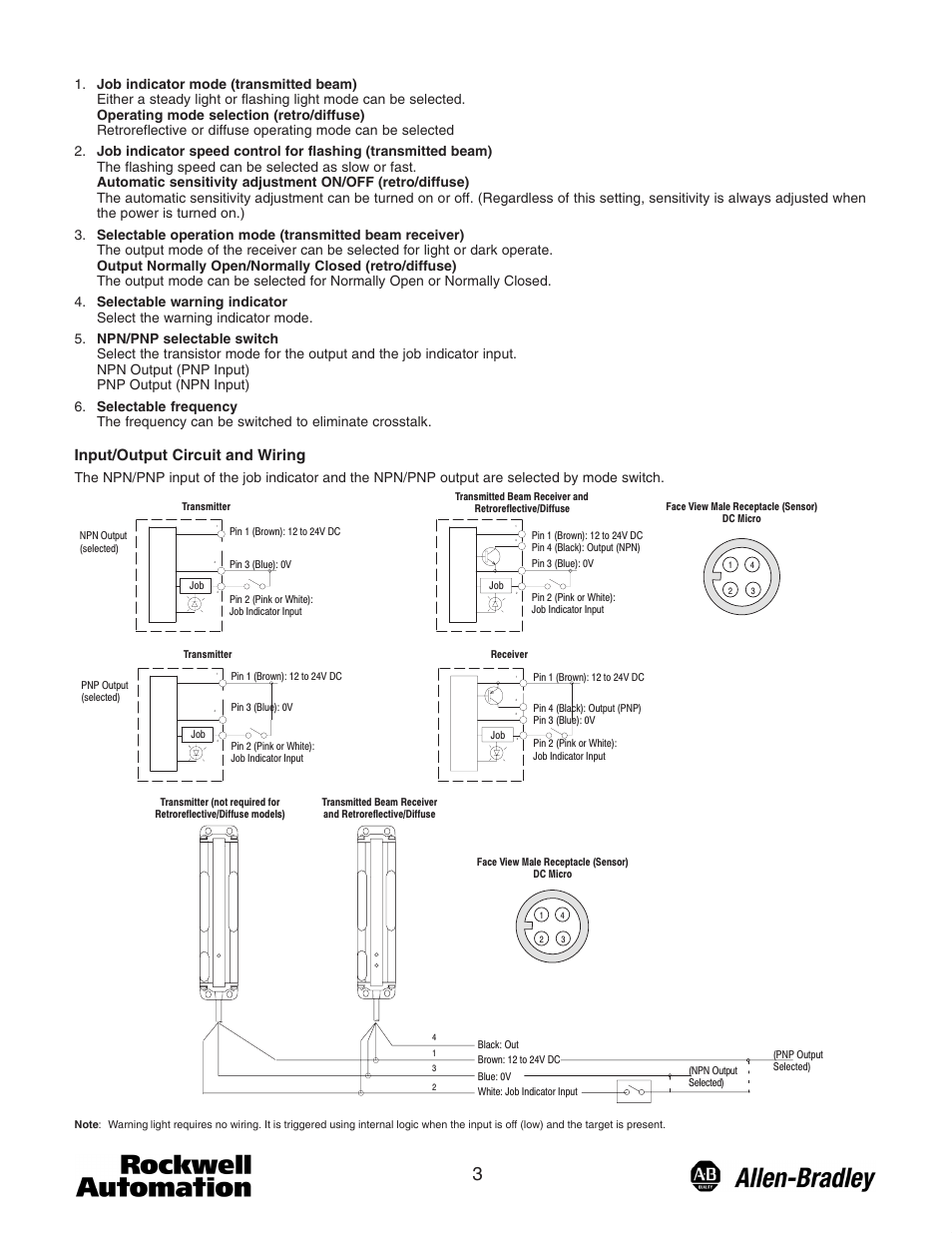

Input/output circuit and wiring – Rockwell Automation 45PVA Part Verification Array User Manual
Page 3
