Step 6: remove the existing scr modules, Step 7: install the new scr modules – Rockwell Automation 20P PowerFlex DC Drive - Frame A SCR Modules for Drive w/Power Traces Circuit Board User Manual
Page 16
16
PowerFlex® DC Drive - Frame A SCR Modules for Drives with a Power Traces Circuit Board
Step 6: Remove the
Existing SCR Modules

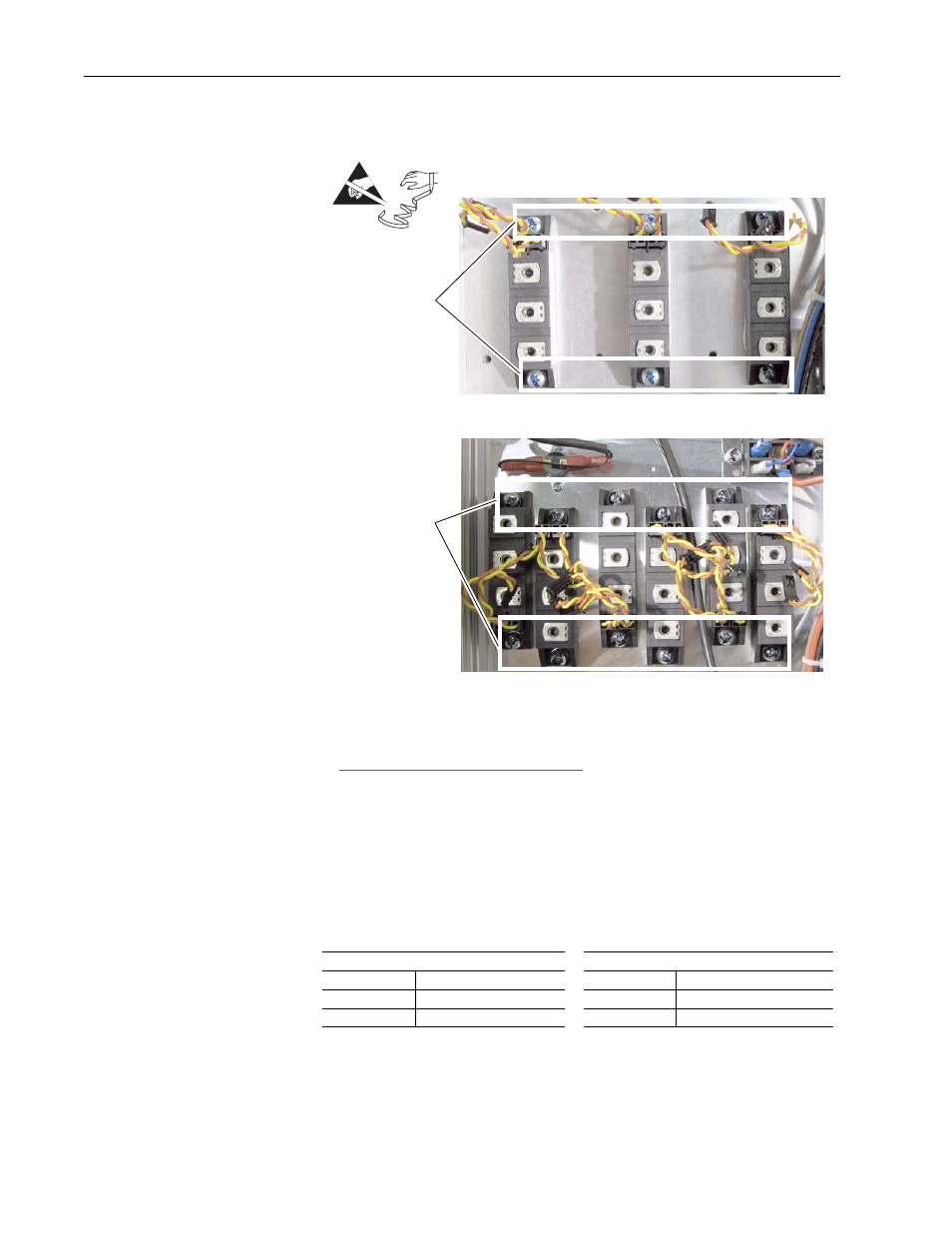

1. Remove the two screws and washers that secure each SCR Module to
the heatsink and remove the SCR Modules.
Step 7: Install the New
SCR Modules
Install the new SCR modules in reverse order of removal as detailed in Step
6:
Remove the Existing SCR Modules
above.
Important: Verify that each SCR Module is orientated in the same position
as it was prior to removal.
Important: Thermal grease must be applied to the bottom of the SCR
modules before securing them to the heatsink.
Use the following table to determine the proper tightening torque for the
SCR Modules installed.
=
Regenerative drive
Non-Regenerative drive
Remove screws
Remove screws
230V AC Input
460V AC Input
Part Number
Final Torque
Part Number
Final Torque
SK-20P-S7F44
2.5…4 N•m (22…35.4 lb•in)
SK-20P-S7F73
2.5…4 N•m (22…35.4 lb•in)
SK-20P-S7F45
2.5…4 N•m (22…35.4 lb•in)
SK-20P-S7F74
2.5…4 N•m (22…35.4 lb•in)
