Rockwell Automation 20D Stegmann Feedback Option Board for PowerFlex 700S Drives User Manual
Page 8
8
Stegmann Feedback Option Board for PowerFlex® 700S Drives
Frame 9-14 Size Drives
Continue with

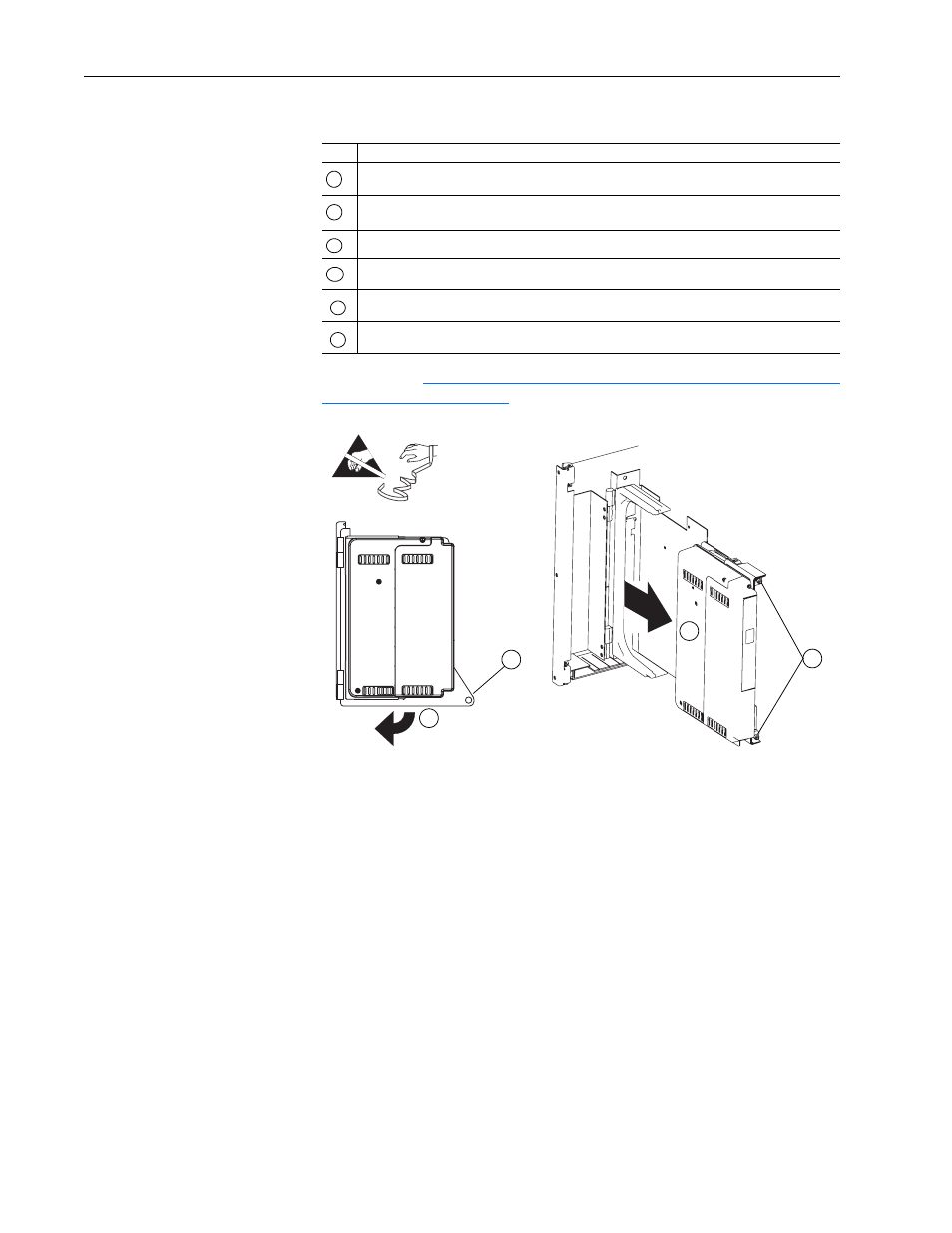

Remove the Cassette Covers on Drives with Phase II Control
Task Description
Unplug any fiber optic ControlNet and SynchLink cables from the control assembly.
Unplug any remaining I/O and communications cables from the control assembly and set them
aside.
Loosen the captive screw.
Swing the control assembly away from the control frame.
Loosen the screws on the face of the cassette.
Remove the cassette from the drive.
A
B
C
D
E
F
=
C
D
E
F
