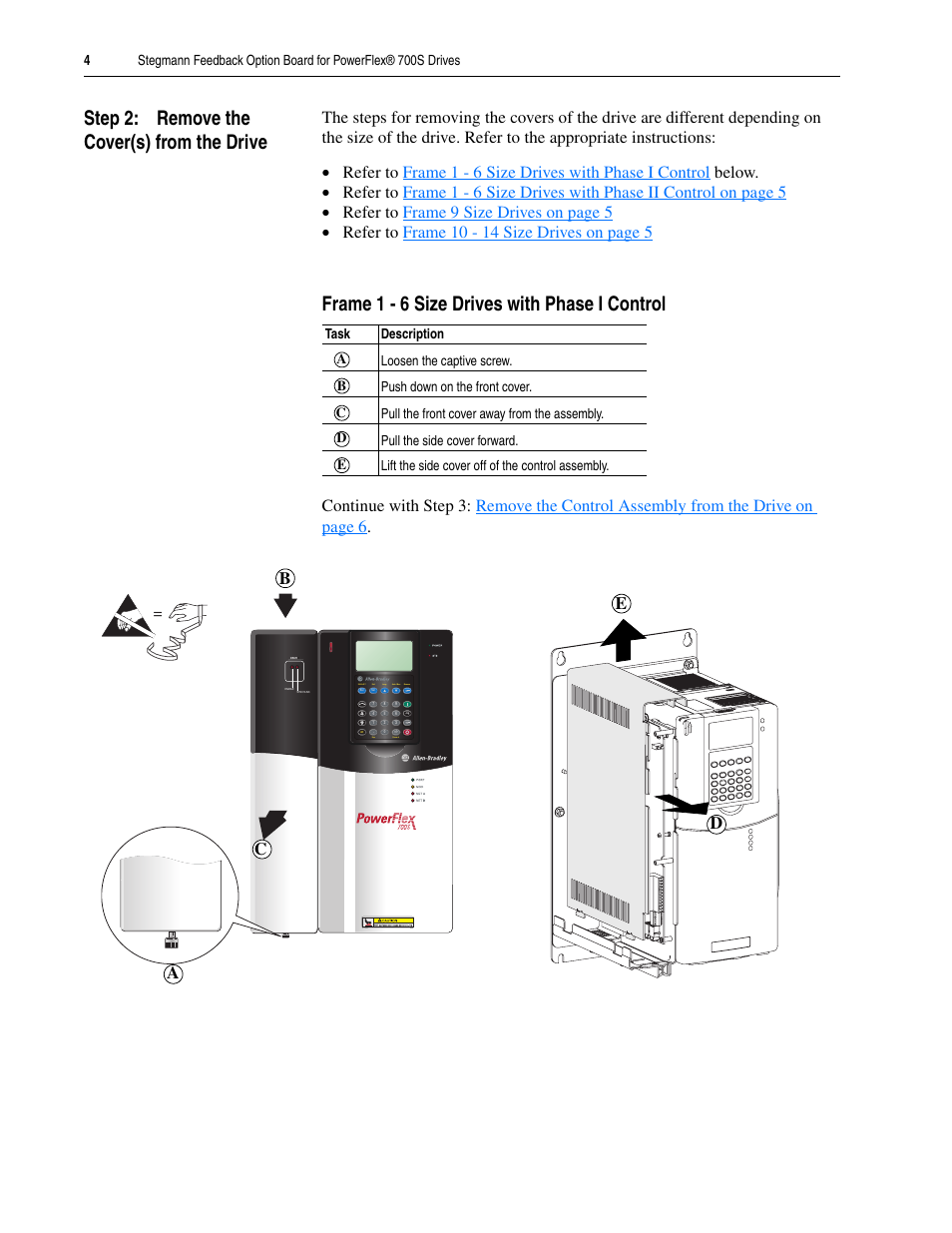

Step 2: remove the cover(s) from the drive, Frame 1 - 6 size drives with phase i control, Ac b d e – Rockwell Automation 20D Stegmann Feedback Option Board for PowerFlex 700S Drives User Manual
Page 4
