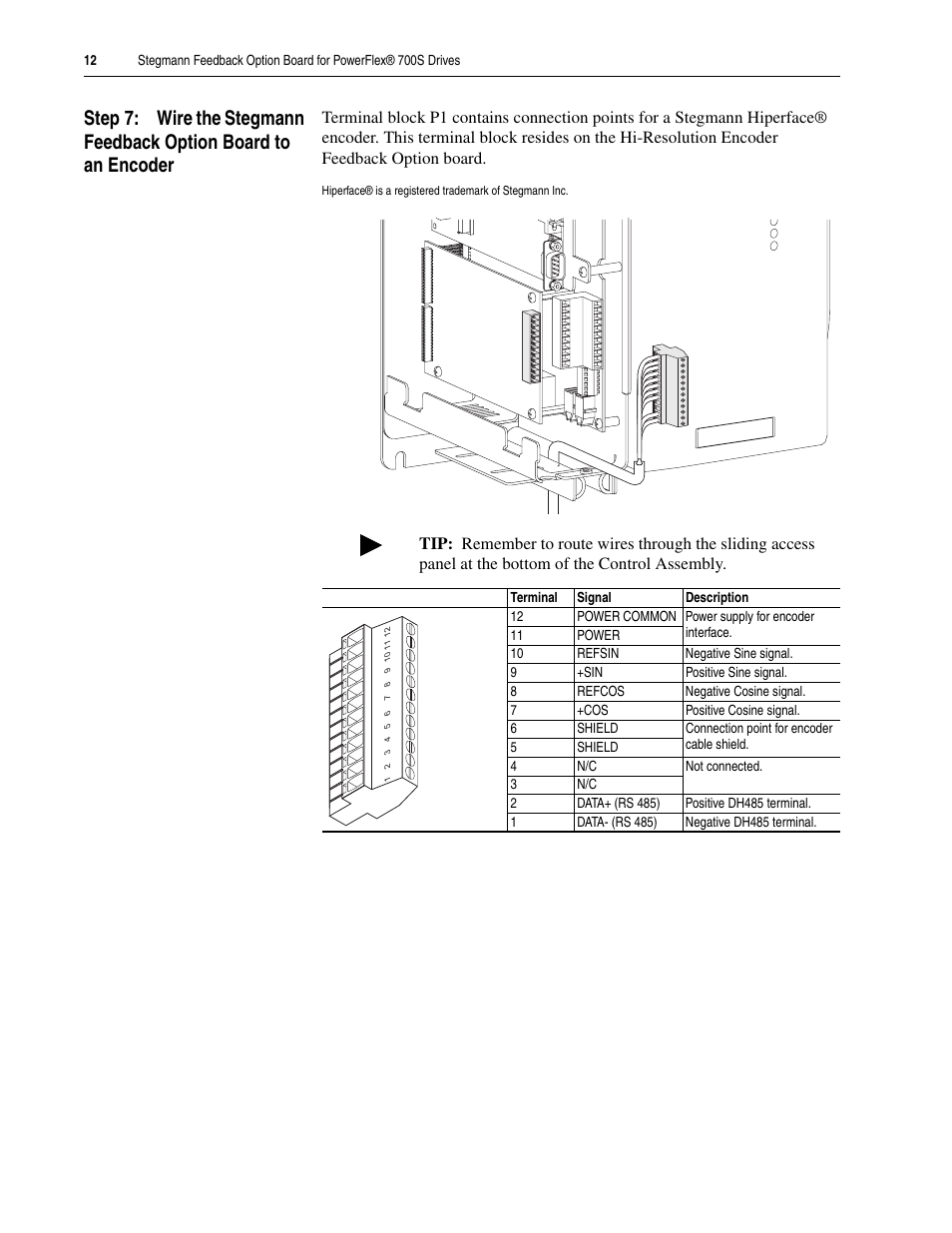

Wire the stegmann feedback option board to an, Ep 7, Wire the stegmann feedback option – Rockwell Automation 20D Stegmann Feedback Option Board for PowerFlex 700S Drives User Manual
Page 12
