Dimensions—inches (mm) – Rockwell Automation 42QA ColorSight Series 9000 Photoelectric Sensors User Manual
Page 12

12 ColorSight Series 9000 PHOTOSWITCH
R
Photoelectric Sensor
75027--031--01(A), November 1999
12. Sequence the target in and out of the sensors field of view to ensure
proper color discrimination. It may be necessary to adjust the 8-turn
knob to a higher setting to provide a higher degree of color
discrimination.
13. Congratulations! The sensor has successfully learned the target.

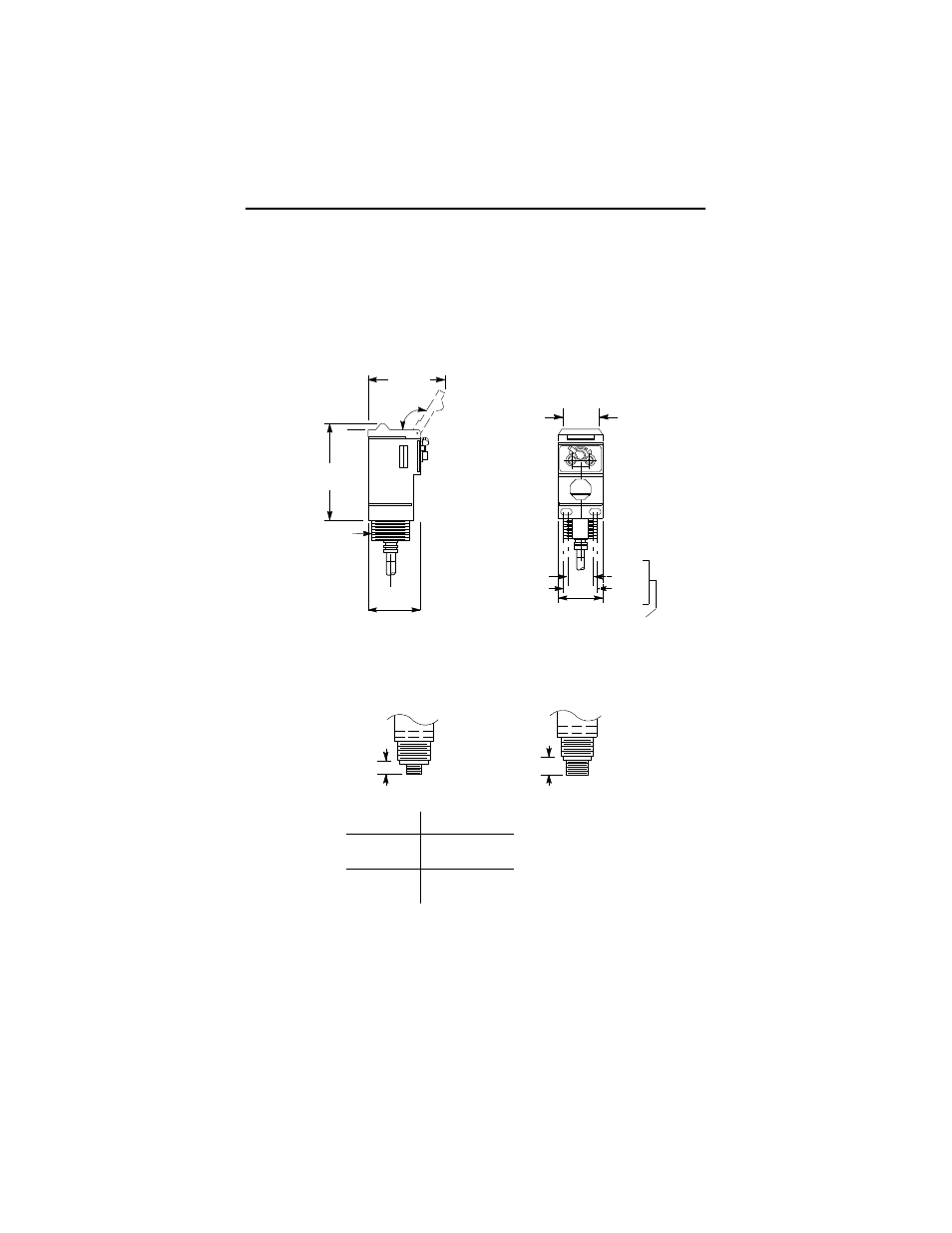

Dimensions—inches (mm)
40
(1.58)
41.91
(1.650)
40.00
(1.575)
74.93
(2.950) Ref
2.190
(55.62)
M30 X 1.5
External Thread
1/2 NPSM
Internal Thread
24.64
(0.970)
30.35
(1.195)
Mounting Hole
Centerline
13.97 (0.550)
17.78 (0.700)
Micro Style
Mini Style
Connector Version
Thread Size
DC
M12 x 1
1 Keyway
7/8--16 UN
1 Keyway
Micro Style
Mini Style
