Installation/Assembly
Connecting the Vacuum Hose and Water Supply
17. Fit the hose joints to the water supply, drain and vacuum hoses at first,
and connect to the cooling water and vacuum pipes.
1. In case the joints are connected to the condenser, remove them.
2. Insert the hose joints into the water supply and drain hoses (inside diameter, 9mm) , hold by the
attached hose clamps and fix to the cooling pipes of cooling condenser.
In the same way, insert the hose joint into the vacuum hose (inside diameter of 6mm),fix to the
vacuum suction pipe (hose clamp is not necessary).
Do not fit the hoses to the hose joints connected to the condenser.

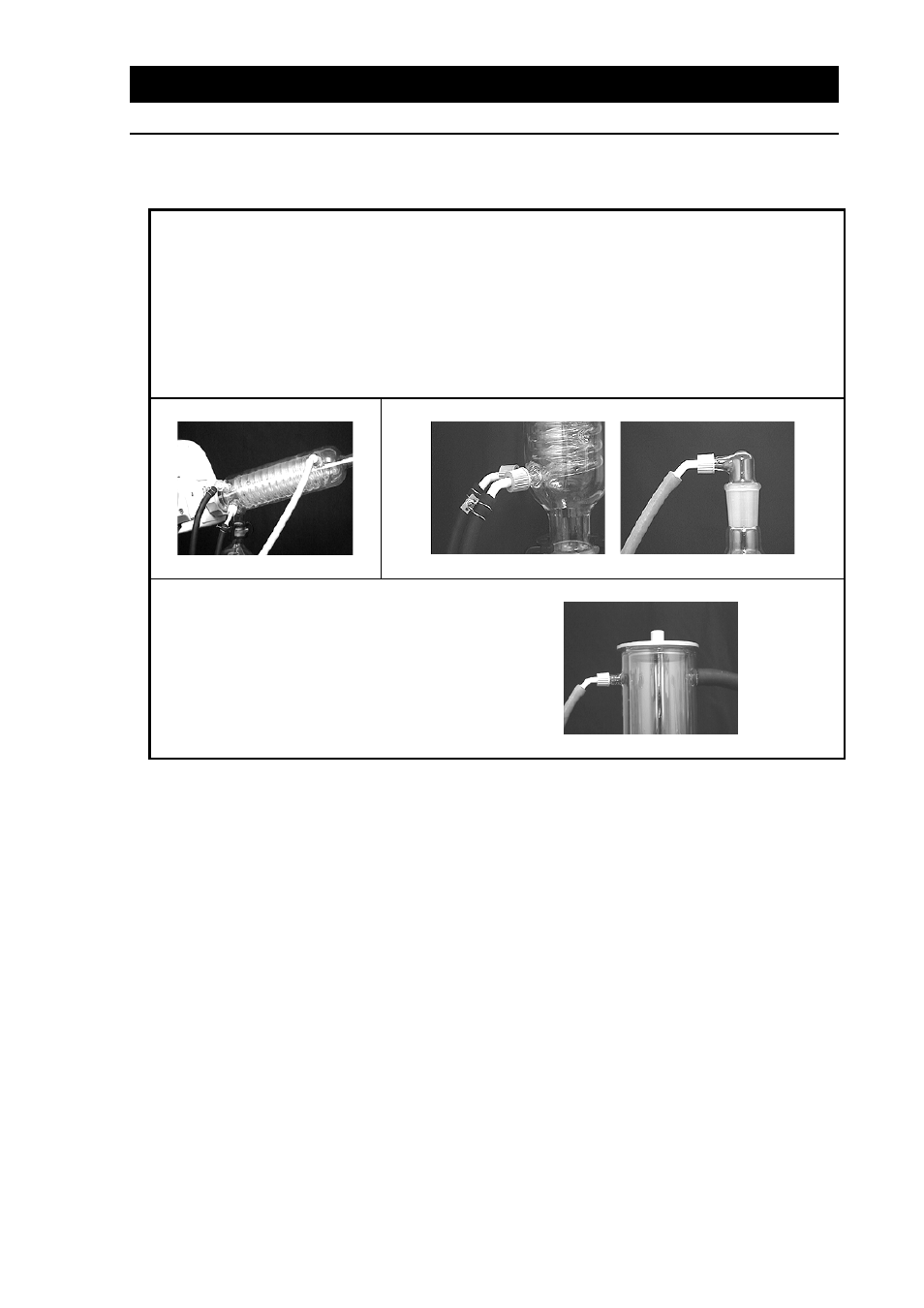

● ● ● ●In case of glass A ● ● ● ●In case of glass B
● ● ● ●In case of glass C
Connect the drain hose with the inside diameter of
18mm to drain of cooling condenser.
