Unisteer 8001020-02 S10 Rack & Pinion 1996-2004 - Manual (Page 7)

pg. 7 655590

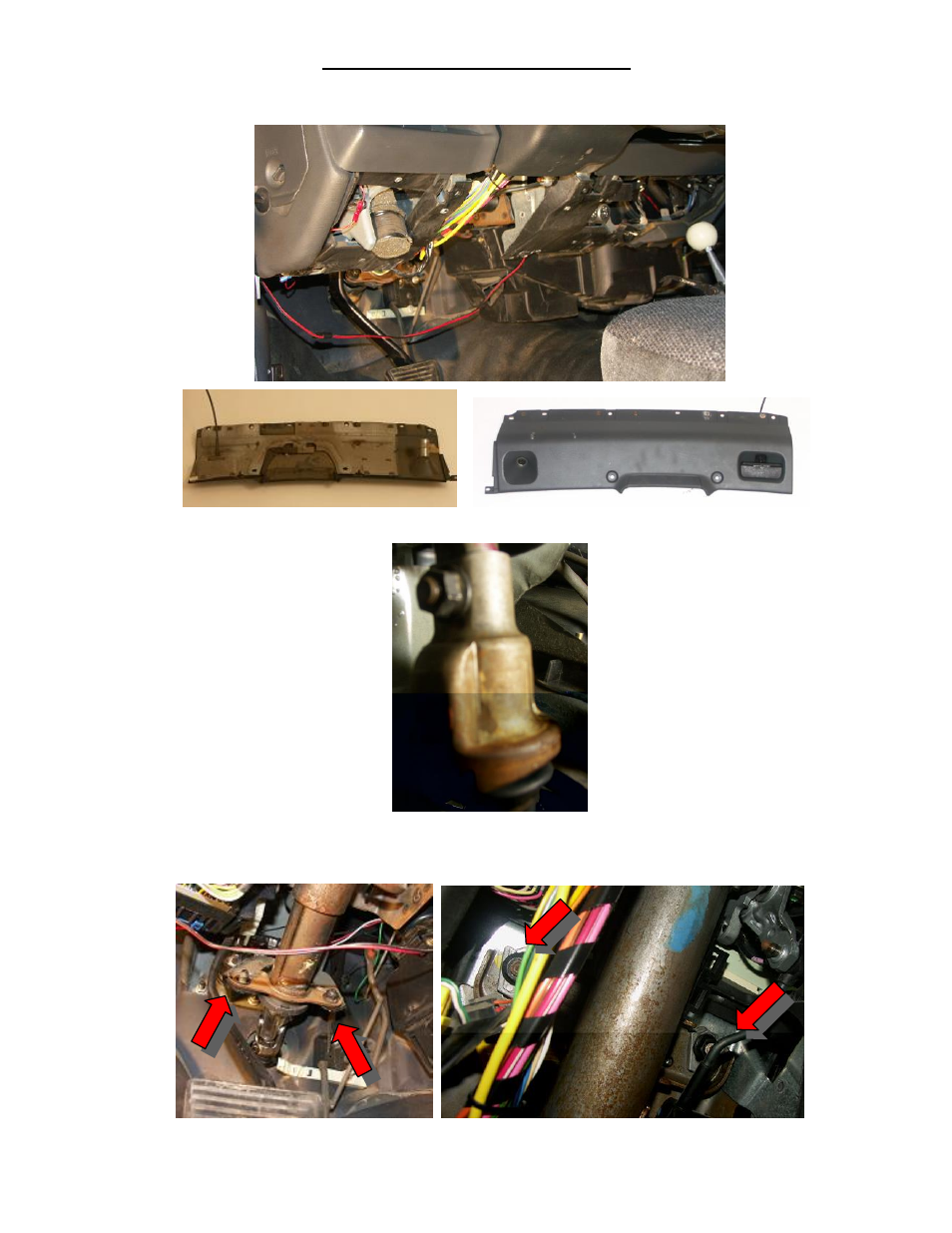

Steering-Shaft Installation
1. Remove lower dash trim on the driver’s side. It may be necessary to disconnect the emergency brake
release and cigarette lighter power wire to remove the panel depending on your application.
2. Remove single thru-bolt on steering column closest to firewall.
3. Loosen two lower mounting bolts or nuts and remove two upper mounting screws or nuts towards top of
steering column. Pull column towards you to allow room to disconnect joint at firewall from steering
column.
(Loosen) (Remove)
