pg. 10

655590

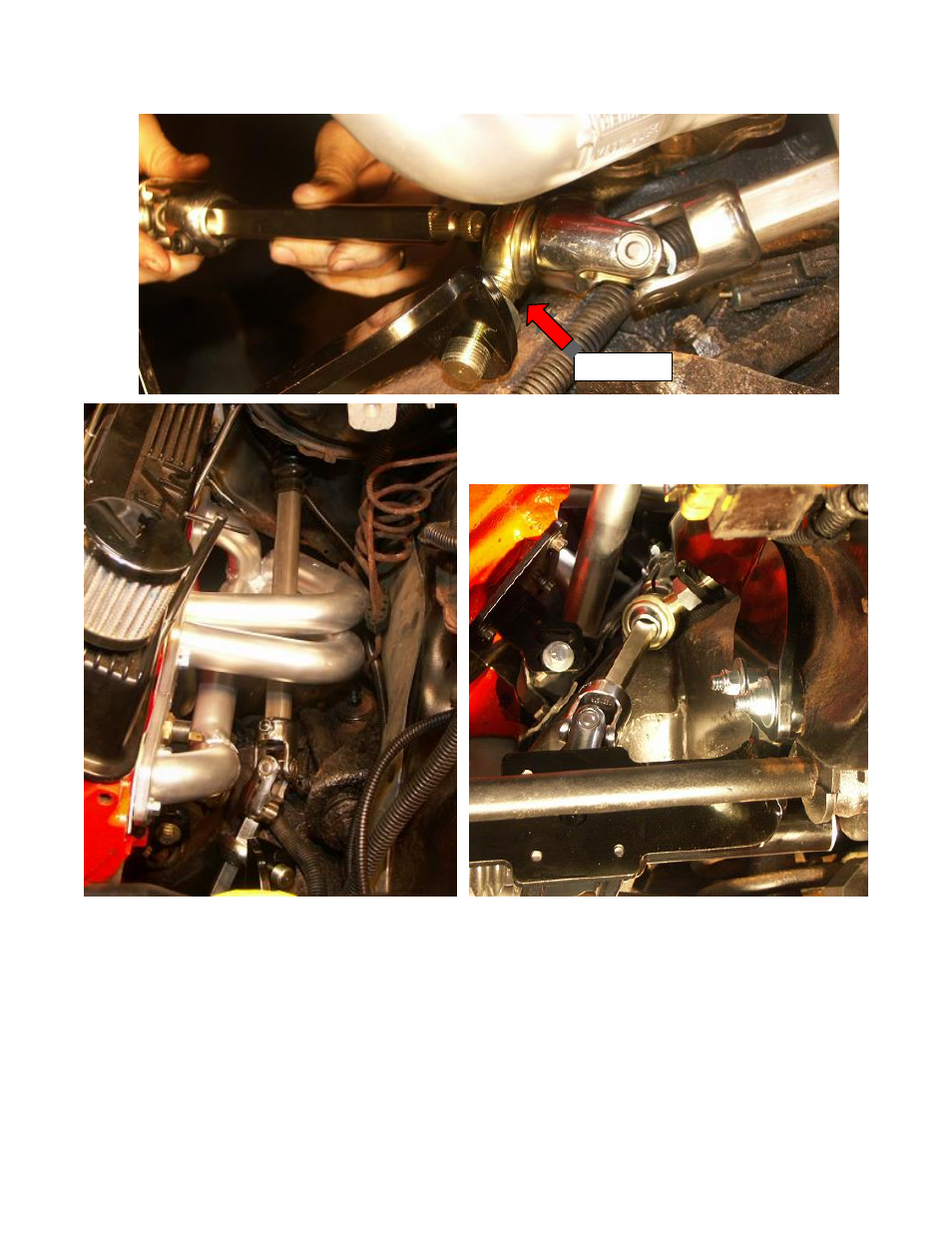

11. Thread the jam nut onto the heim-joint then insert heim joint into the hole on the column support bracket

approx. 10 turns.

12. Insert the lower shaft through heim-joint and into u-joint on middle shaft.

13. Connect lower u-joint to Rack and Pinion gear.

Heim Joint
