Bac-8001 draft222_21, Application drawing – Titus Alpha BAC-8001/BAC-8201 Cooling Only User Manual
Page 18
BAC-8001 and BAC-8201 VAV Controllers
Installing the controllers
Application drawing
18
Application
drawing
The BAC-8001 and BAC-8201 controllers are configured by the manufacturer for
single-duct cooling or heating VAV control. Connect the controller as shown in
the illustration
BAC-8001 and BAC-8201 application on page 21
.

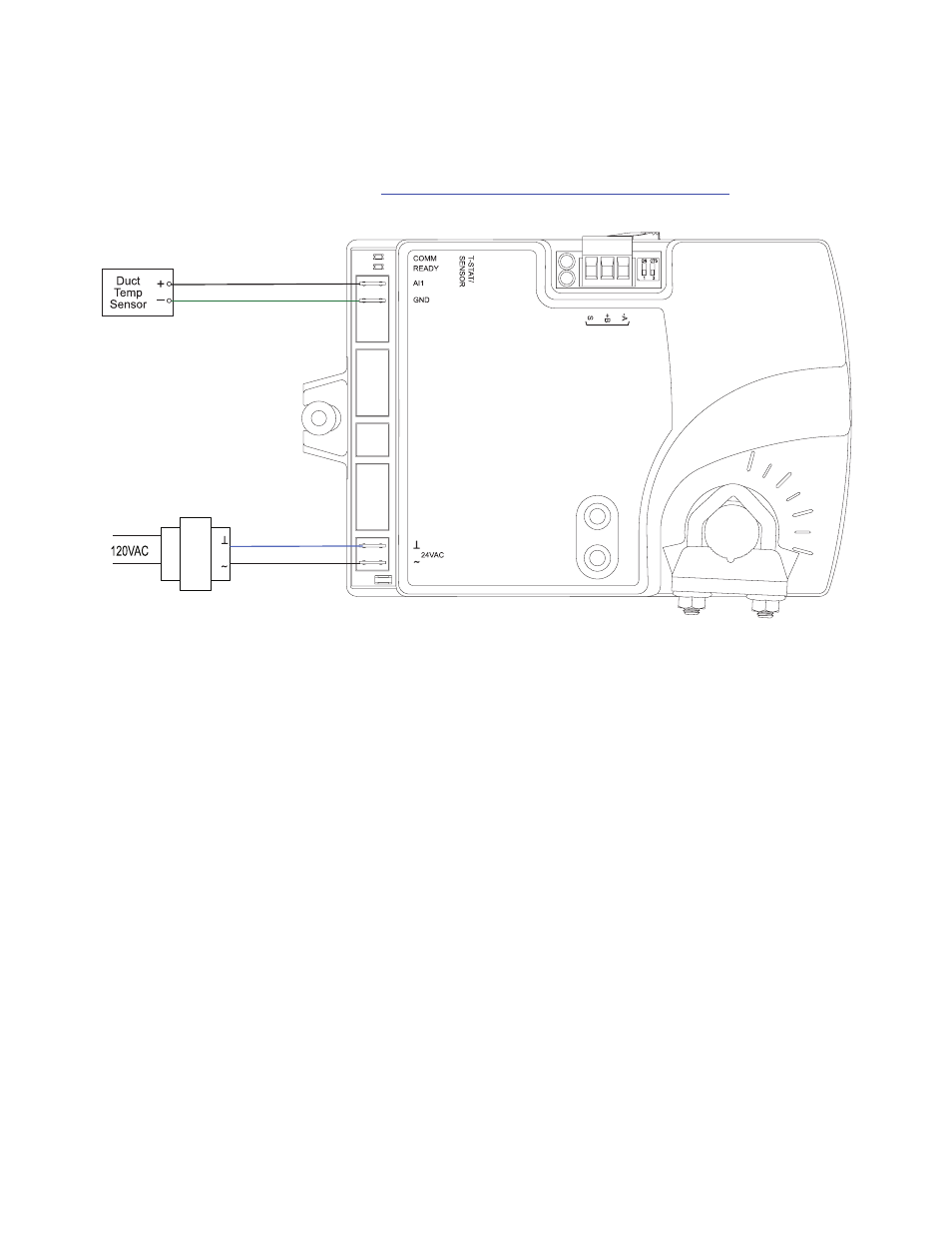

Illustration 2-12 BAC-8001 and BAC-8201 application
