Frame Parts
Comp 10 2014 (BOOK SIZE) 10.7

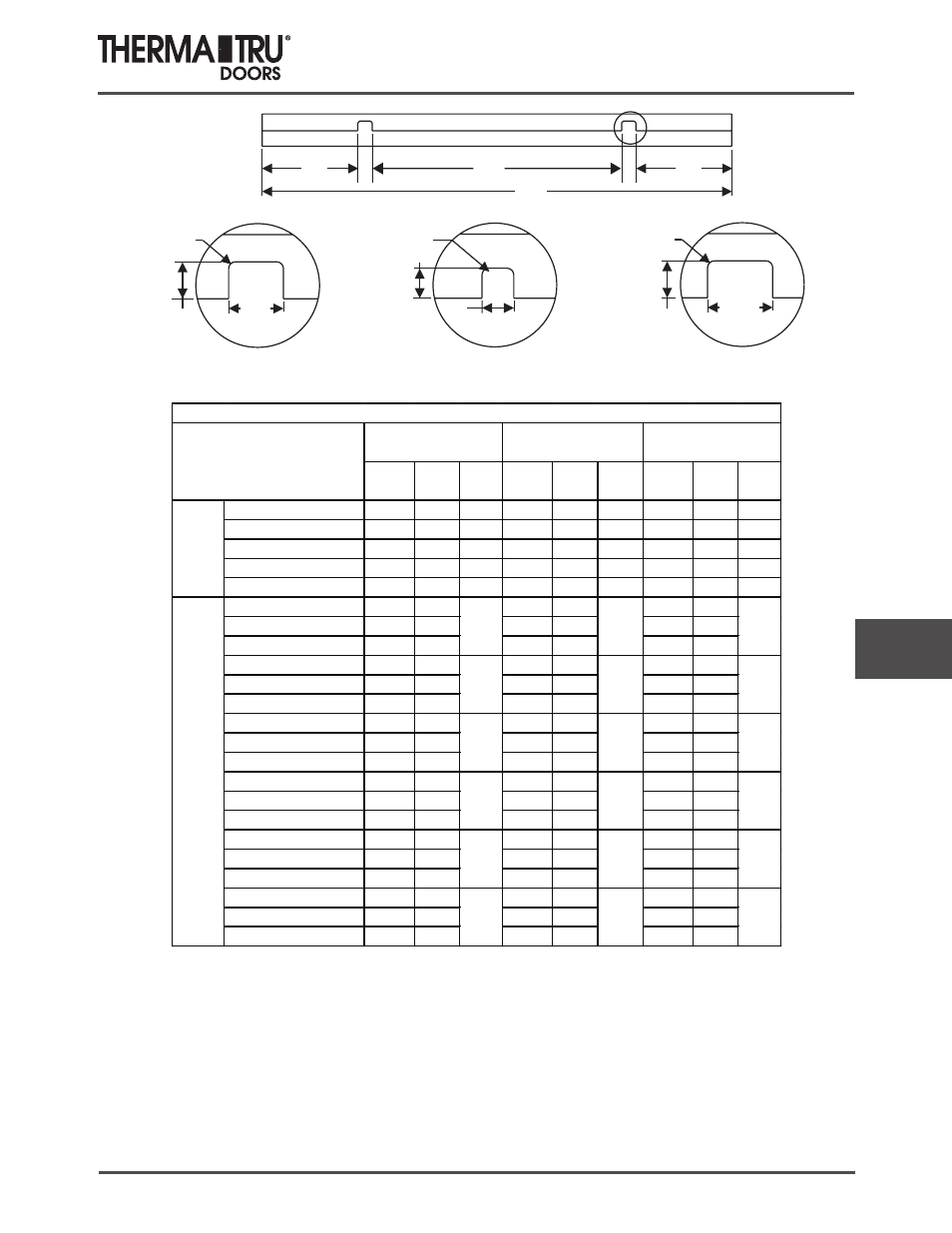

Head Jambs
A
B
R .250 (2)
Code E
2.020”
1.359”
Code P
R .250 (2)
.906”
1.234”
R .250 (2)
Code W
2.520”
1.359”
C
A B C A B C A B C
7/0 TRIPLE 86.470 27.647 27.136 86.470 28.204 28.250 87.470 27.647 27.136
7/6 TRIPLE 92.470 29.647 29.136 92.470 30.204 30.250 93.470 29.647 29.136
8/0 TRIPLE 98.470 31.647 31.136 98.470 32.204 32.250 99.470 31.647 31.136
8/6 TRIPLE 104.470 33.647 33.136 104.470 34.204 34.250 105.470 33.647 33.136
9/0 TRIPLE 110.470 35.647 35.136 110.470 36.204 36.250 111.470 35.647 35.136
2/4 W/2-10" SL 50.156 9.490 50.156 10.047 51.156 9.490
2/4 W/2-12" SL 54.156 11.490 54.156 12.047 55.156 11.490
2/4 W/2-14" SL 58.156 13.490 58.156 14.047 59.156 13.490
2/6 W/2-10" SL 52.156 9.490 52.156 10.047 53.156 9.490
2/6 W/2-12" SL 56.156 11.490 56.156 12.047 57.156 11.490
2/6 W/2-14" SL 60.156 13.490 60.156 14.047 61.156 13.490
2/8 W/2-10" SL 54.156 9.490 54.156 10.047 55.156 9.490
2/8 W/2-12" SL 58.156 11.490 58.156 12.047 59.156 11.490
2/8 W/2-14" SL 62.156 13.490 62.156 14.047 63.156 13.490
2/10 W/2-10" SL 56.156 9.490 56.156 10.047 57.156 9.490
2/10 W/2-12" SL 60.156 11.490 60.156 12.047 61.156 11.490
2/10 W/2-14" SL 64.156 13.490 64.156 14.047 65.156 13.490
3/0 W/2-10" SL 58.156 9.490 58.156 10.047 59.156 9.490
3/0 W/2-12" SL 62.156 11.490 62.156 12.047 63.156 11.490
3/0 W/2-14" SL 66.156 13.490 66.156 14.047 67.156 13.490
3/6 W/2-10" SL 64.156 9.490 64.156 10.047 65.156 9.490
3/6 W/2-12" SL 68.156 11.490 68.156 12.047 69.156 11.490
3/6 W/2-14" SL 72.156 13.490 72.156 14.047 73.156 13.490
TRIPLE AND SINGLE WITH 2 SIDELITES
PATIO MULLION
(MACHINING CODE P)
WIDE MULLION
(MACHINING CODE W)
TR
IP
LE
P
AT
IO
U
NI
TS
CO
NT
IN
U
O
U
S
-
2
SI
DE
LI
TE
27.136 28.250 27.136
29.136
35.136 36.250 35.136
41.136 42.250 41.136
30.250 29.136
31.136 32.250 31.136
33.136 34.250 33.136
ENTRY MULLION
(MACHINING CODE E)
B
