Frame Parts

Comp 10

2014 (BOOK SIZE)

10.11

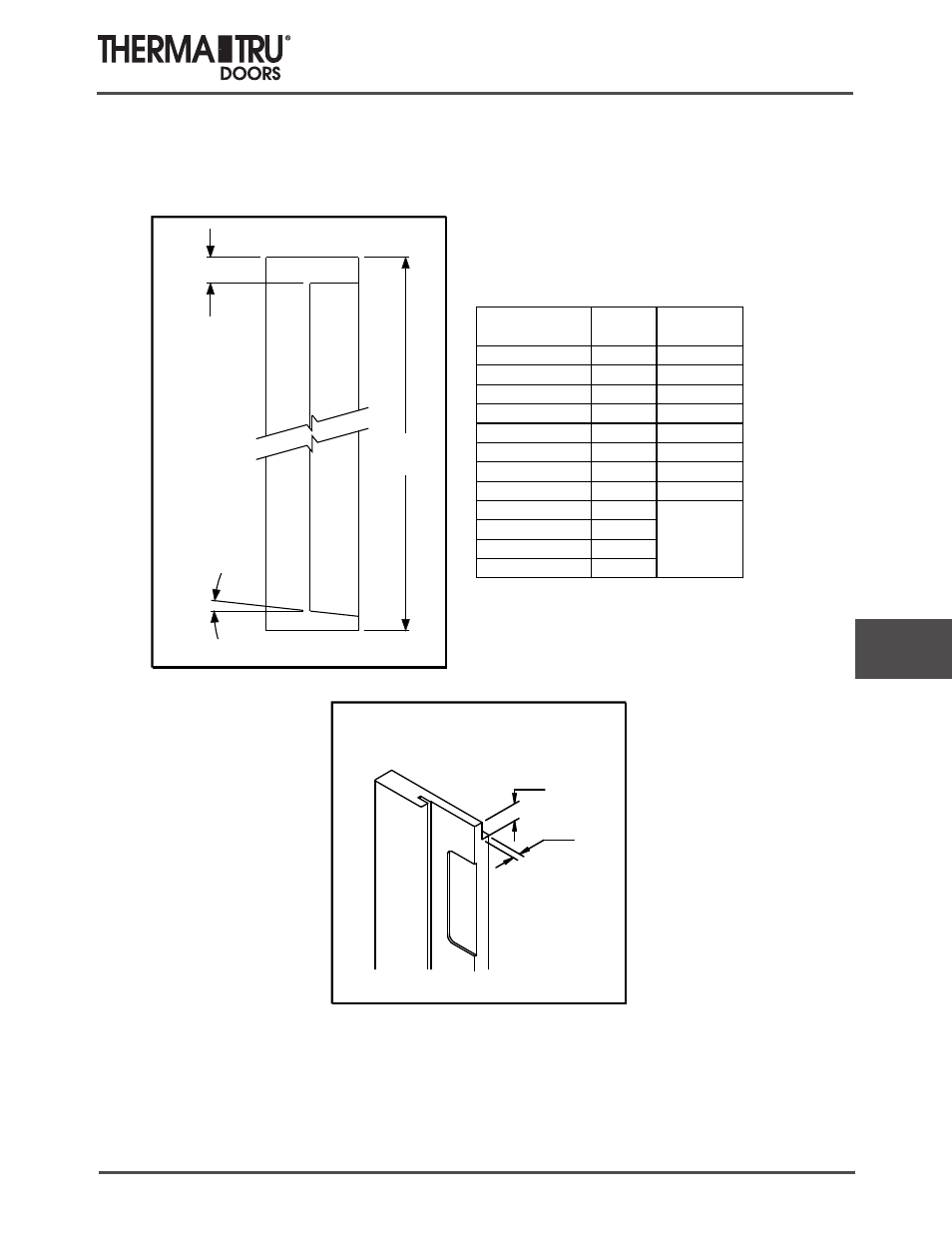

Side Jambs

Radius Head

Gain Detail

3/4"

5/16"

Head Gain

See Chart

Overall

See Chart

Sill End

Head End

6°

LENGTH

"A"

HEAD GAIN

"B"

6/6

79.483"

1.250"

6/8

82.031"

1.250"

7/0

86.031"

1.250"

8/0

98.031"

1.250"

6/8 3/0 ARCH 76.281"

1.570"

6/8 3/6 ARCH 76.531"

1.491"

8/0 3/0 ARCH 92.281"

1.570"

8/0 3/6 ARCH 92.531"

1.491"

6/8 3/0 RADIUS 62.201"

6/8 3/6 RADIUS 59.201"

8/0 3/0 RADIUS 78.201"

8/0 3/6 RADIUS 75.201"

See Figure

Below

UNIT SIZE
