Frame Parts

Comp 10

2014 (BOOK SIZE)

10.5

B

B

A

A

.875"

.750"

C

C

UNIT SIZE LENGTH

"A"

RADIUS

"B"

HEIGHT

"C"

3/0 RADIUS 35.160" 17.580" 19.830"

3/6 RADIUS 41.156" 20.578" 22.828"

3/0 ARCH 36.156" 28.486" 7.320"

3/6 ARCH 42.156" 39.751" 6.991"

.500"

1.114" for 3/0
1.085" for 3/6

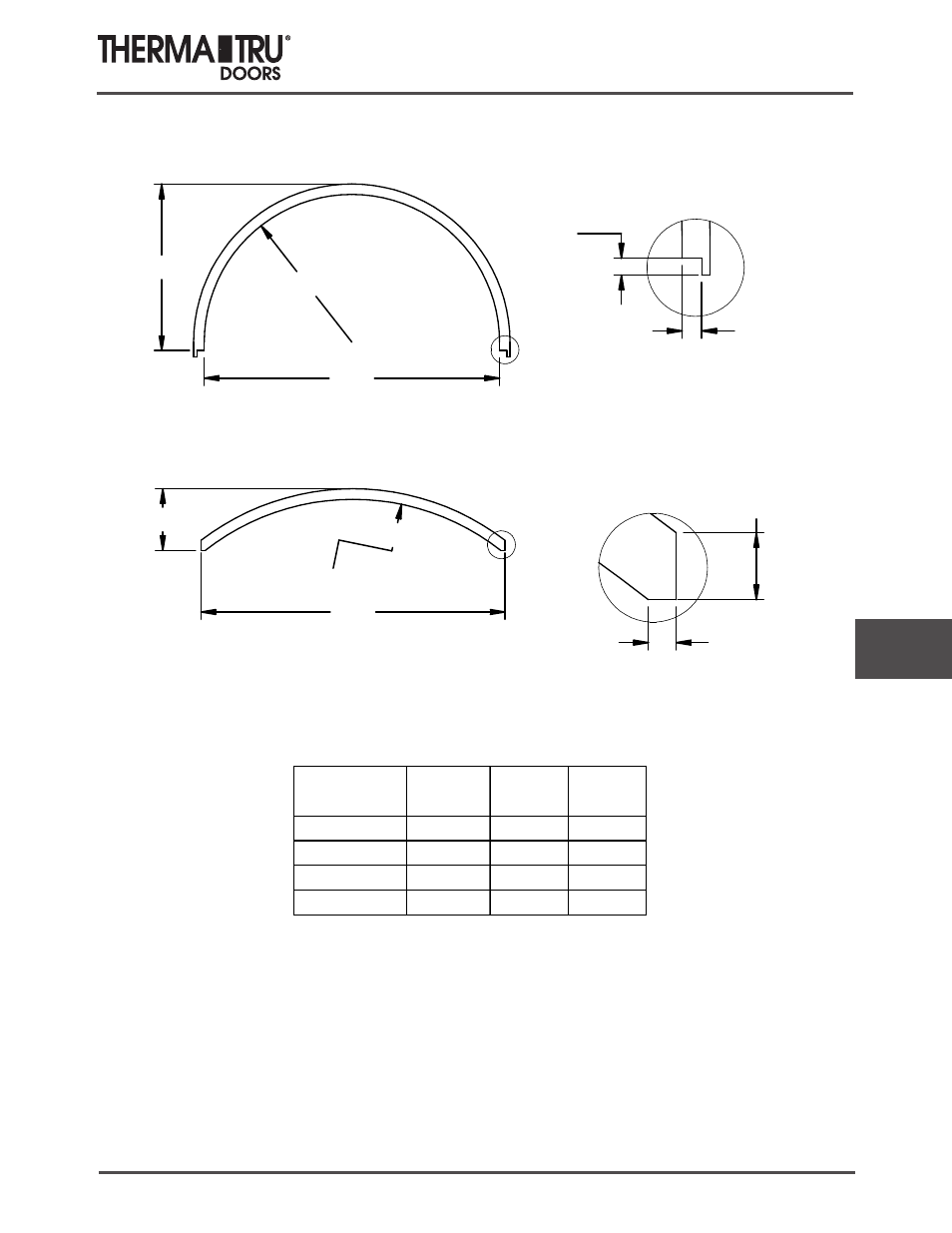

Arch & Radius Head Jambs
