Therma-Tru COMP 10 Frame Parts - Book Size - Manual (Page 34)

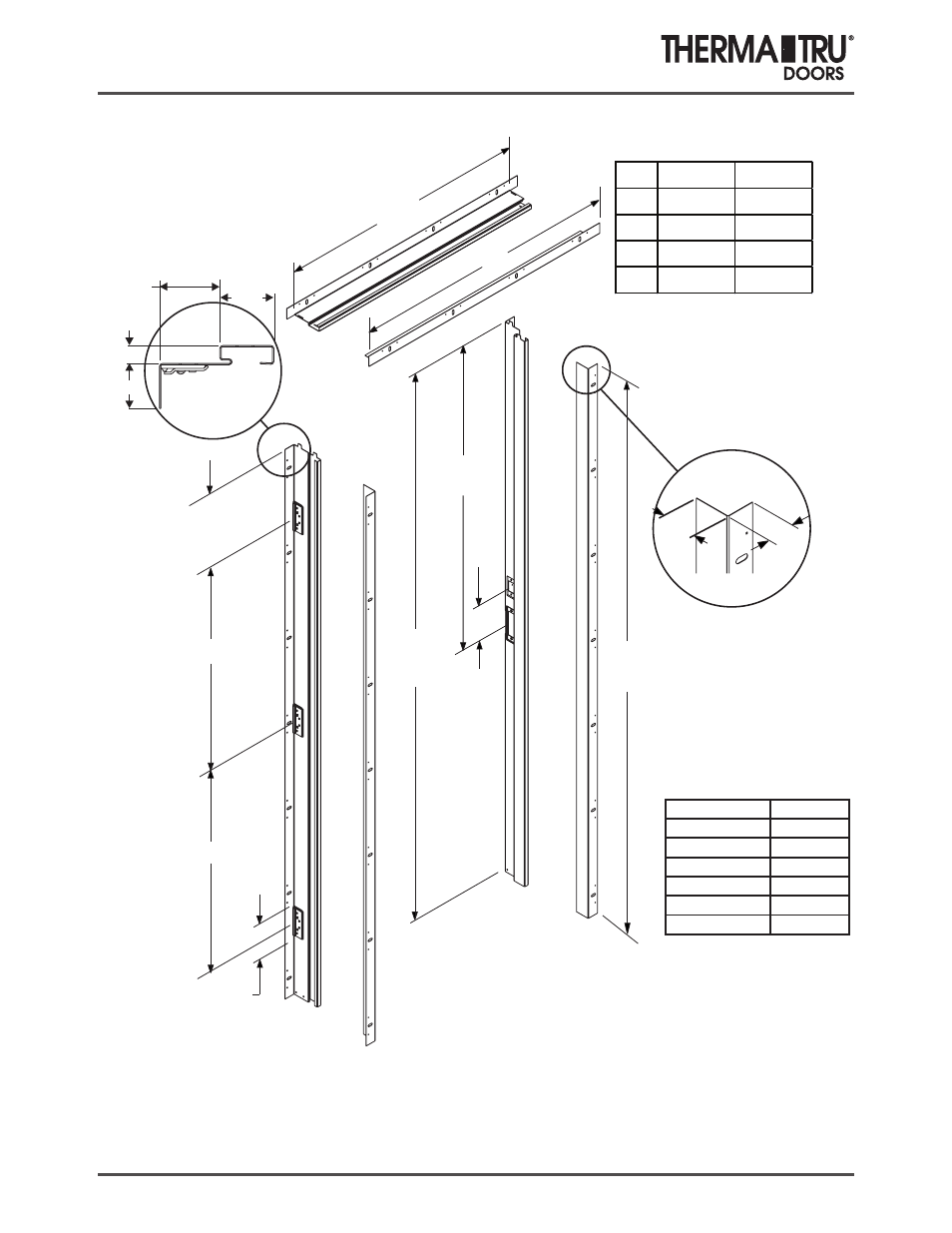

10.34 2014 (BOOK SIZE) Comp 10
Standard Adjusta-Fit © 2 - No Sill
5-1/2”
6/8 = 44-3/32”
7/0 = 48-3/32”
6/8 = 80”
7/0 = 84”
1-9/16”
6/8 = 80”
7/0 = 84”
4-1/32”
29-1/4”
29-1/4”
B
C
A
10-1/2”
1-9/16”
5/8”
2-3/32”
1-7/8”
Frame Width B
4”-5” 1-1/2”
4-1/2”-5-1/2” 2”
5-1/2”-6-1/2” 3”
6-1/2”-7-1/2” 4”
7-1/2”-8-1/2” 5”
8-1/2”-9-1/2” 6”
Size A C
2/6 33-3/16" 30-5/32"
2/8 35-3/16" 32-5/32"
3/0 39-3/16" 36-5/32"
3/6 45-3/16" 42-5/32"
