Frame Parts
10.6 2014 (BOOK SIZE) Comp 10

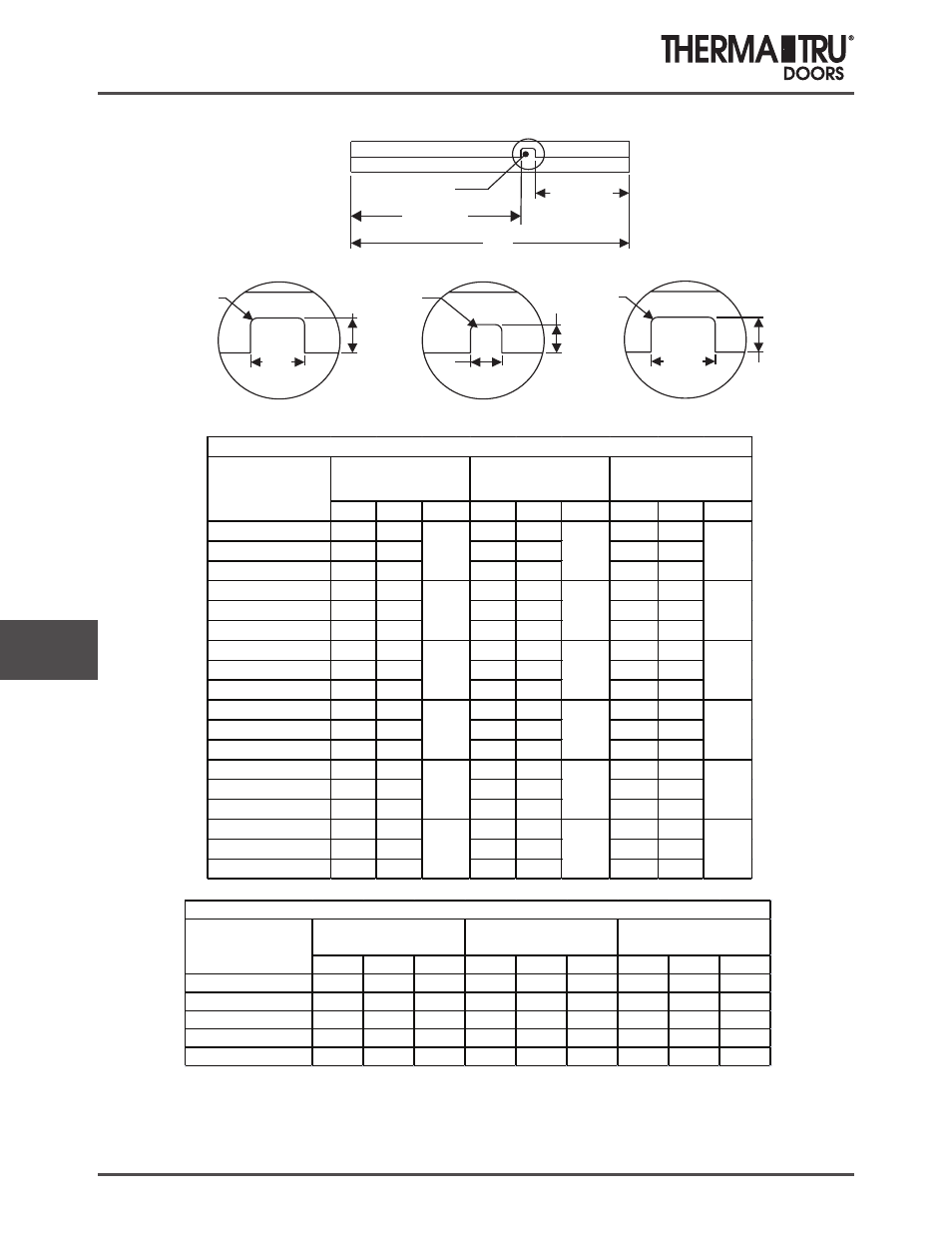

Head Jambs
A
C = Door
(Active)
B= Sidelite
(Fixed)
Inswing Active Left Shown
Flush with
Door Rabbet
Code E
2.020”
1.359”
Code P
.906”
1.234”
Code W
2.520”
1.359”
A B C A B C A B C
2/4 L(R) W/1-10" SL 39.156 9.490 39.156 10.047 39.656 9.490
2/4 L(R) W/1-12" SL 41.156 11.490 41.156 12.047 41.656 11.490
2/4 L(R) W/1-14" SL 43.156 13.490 43.156 14.047 43.656 13.490
2/6 L(R) W/1-10" SL 41.156 9.490 41.156 10.047 41.656 9.490
2/6 L(R) W/1-12" SL 43.156 11.490 43.156 12.047 43.656 11.490
2/6 L(R) W/1-14" SL 45.156 13.490 45.156 14.047 45.656 13.490
2/8 L(R) W/1-10" SL 43.156 9.490 43.156 10.047 43.656 9.490
2/8 L(R) W/1-12" SL 45.156 11.490 45.156 12.047 45.656 11.490
2/8 L(R) W/1-14" SL 47.156 13.490 47.156 14.047 47.656 13.490
2/10 L(R) W/1-10" SL 45.156 9.490 45.156 10.047 45.656 9.490
2/10 L(R) W/1-12" SL 47.156 11.490 47.156 12.047 47.656 11.490
2/10 L(R) W/1-14" SL 49.156 13.490 49.156 14.047 49.656 13.490
3/0 L(R) W/1-10" SL 47.156 9.490 47.156 10.047 47.656 9.490
3/0 L(R) W/1-12" SL 49.156 11.490 49.156 12.047 49.656 11.490
3/0 L(R) W/1-14" SL 51.156 13.490 51.156 14.047 51.656 13.490
3/6 L(R) W/1-10" SL 53.156 9.490 53.156 10.047 53.656 9.490
3/6 L(R) W/1-12" SL 55.156 11.490 55.156 12.047 55.656 11.490
3/6 L(R) W/1-14" SL 57.156 13.490 57.156 14.047 57.656 13.490
41.646 42.203 41.646
CONTINUOUS WITH 1 - SIDELITE
33.646 34.203 33.646
35.646 36.203 35.646
29.646 30.203 29.646
31.646 32.203 31.646
ENTRY MULLION
(MACHINING CODE E)
PATIO MULLION
(MACHINING CODE P)
WIDE MULLION
(MACHINING CODE W)
27.646 28.203 27.646
A B C A B C A B C
4/8 DOUBLE MULLION 57.313 27.646 27.646 57.313 28.203 28.203 57.813 27.646 27.646
5/0 DOUBLE MULLION 61.313
29.646 29.646 61.313 30.203 30.203 61.813 29.646 29.646
5/4 DOUBLE MULLION 65.313 31.646 31.646 65.313 32.203 32.203 65.813 31.646 31.646
5/8 DOUBLE MULLION 69.313 33.646 33.646 69.313 34.203 34.203 69.813 33.646 33.646
6/0 DOUBLE MULLION 73.313 35.646 35.646 73.313 36.203 36.203 73.813 35.646 35.646
WIDE MULLION
(MACHINING CODE W)
PATIO MULLION
(MACHINING CODE P)
ENTRY MULLION
(MACHINING CODE E)
DOUBLE DOOR
R 0.250” (2) R 0.250” (2) R 0.250” (2)
