Coastal astragal, Multi-point lock manual shootbolt – Therma-Tru COMP 10 Frame Parts - Book Size User Manual
Page 24
Frame Parts
10.24
2014 (BOOK SIZE)
Comp 10

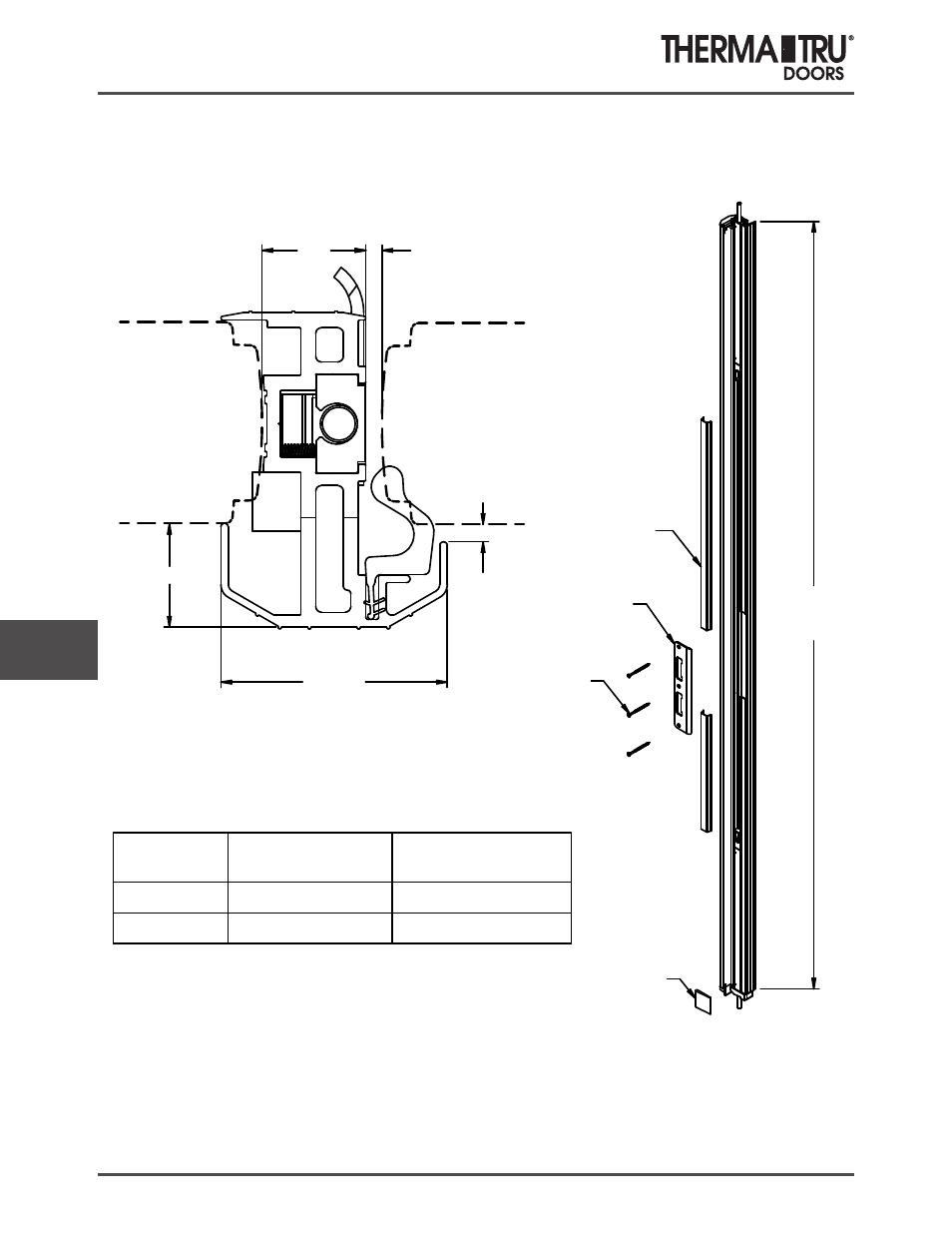

Coastal Astragal
Multi-Point Lock
Manual Shootbolt
Vinyl Cover
#8 x 1-1/2"
Screws
Strike Plate
Corner Seal Pad
Astragal
Height
(Less Boots)
Astragals come complete with the necessary hardware.
See COMP 14.
1 29/32"
7/8"
7/8"
1/8"
5/32"
DOOR HEIGHT
INSWING ASTRAGAL
OVERALL HEIGHT
OUTSWING ASTRAGAL
OVERALL HEIGHT
6/8
79.250
79.250
8/0
95.250
95.250
