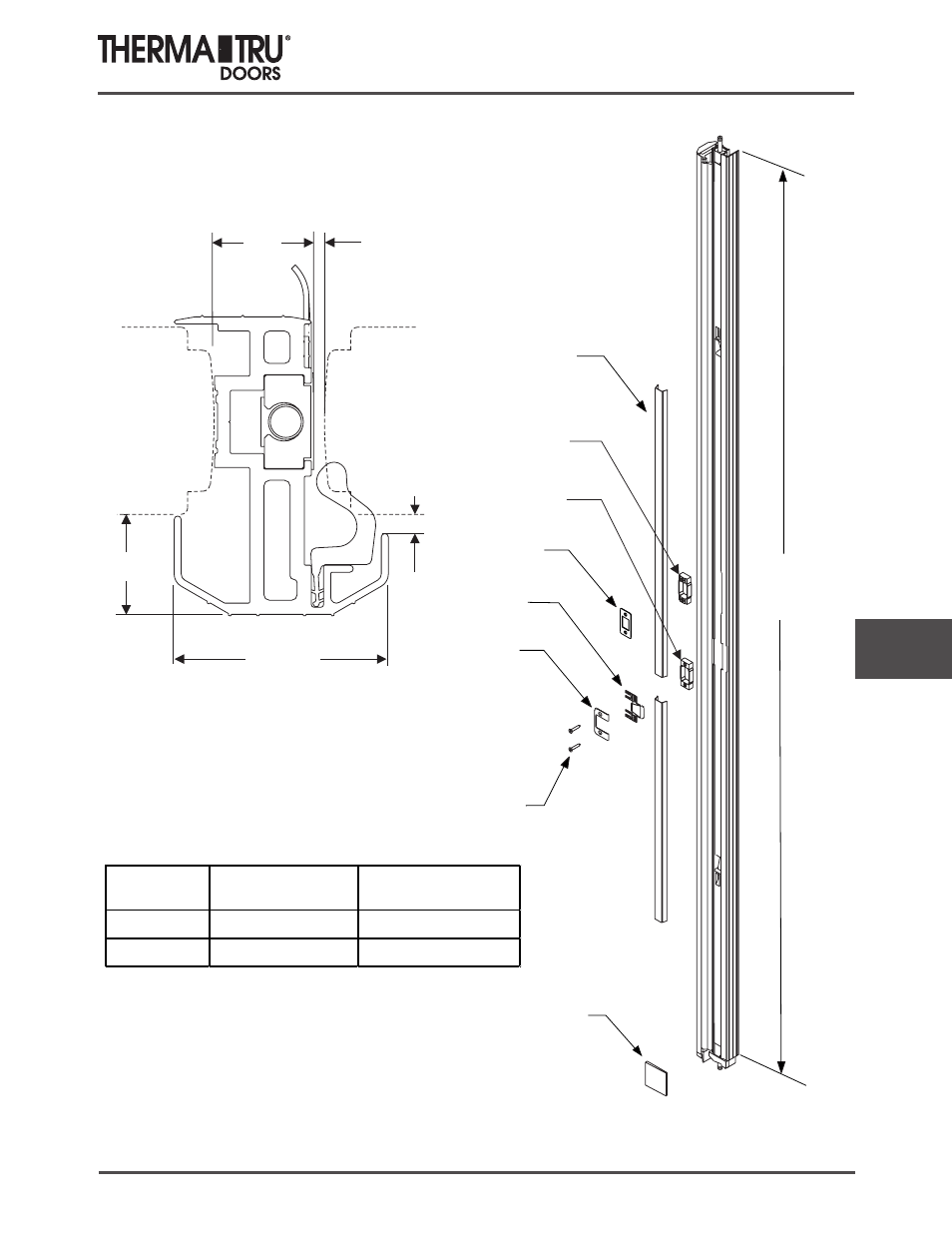

Frame Parts
Comp 10
2014 (BOOK SIZE)
10.23
Coastal Astragal
Corner Seal Pad
#8 x 2-1/2”
Screws
Strike Plate
Backing
Plate
Vinyl Cover
Astragals come complete with the necessary hardware.
See COMP 14 for individual parts.
Astragal
Height
(Less Boots)
1/8”
7/8”
7/8”
5/32”
1 29/32”
Deadbolt Plate
Strike Boss
Deadbolt Boss
(Removeable)
Standard Lock
DOOR HEIGHT
INSWING ASTRAGAL
OVERALL HEIGHT
OUTSWING ASTRAGAL
OVERALL HEIGHT
6/8
79.250
79.250
8/0
95.250
95.250
