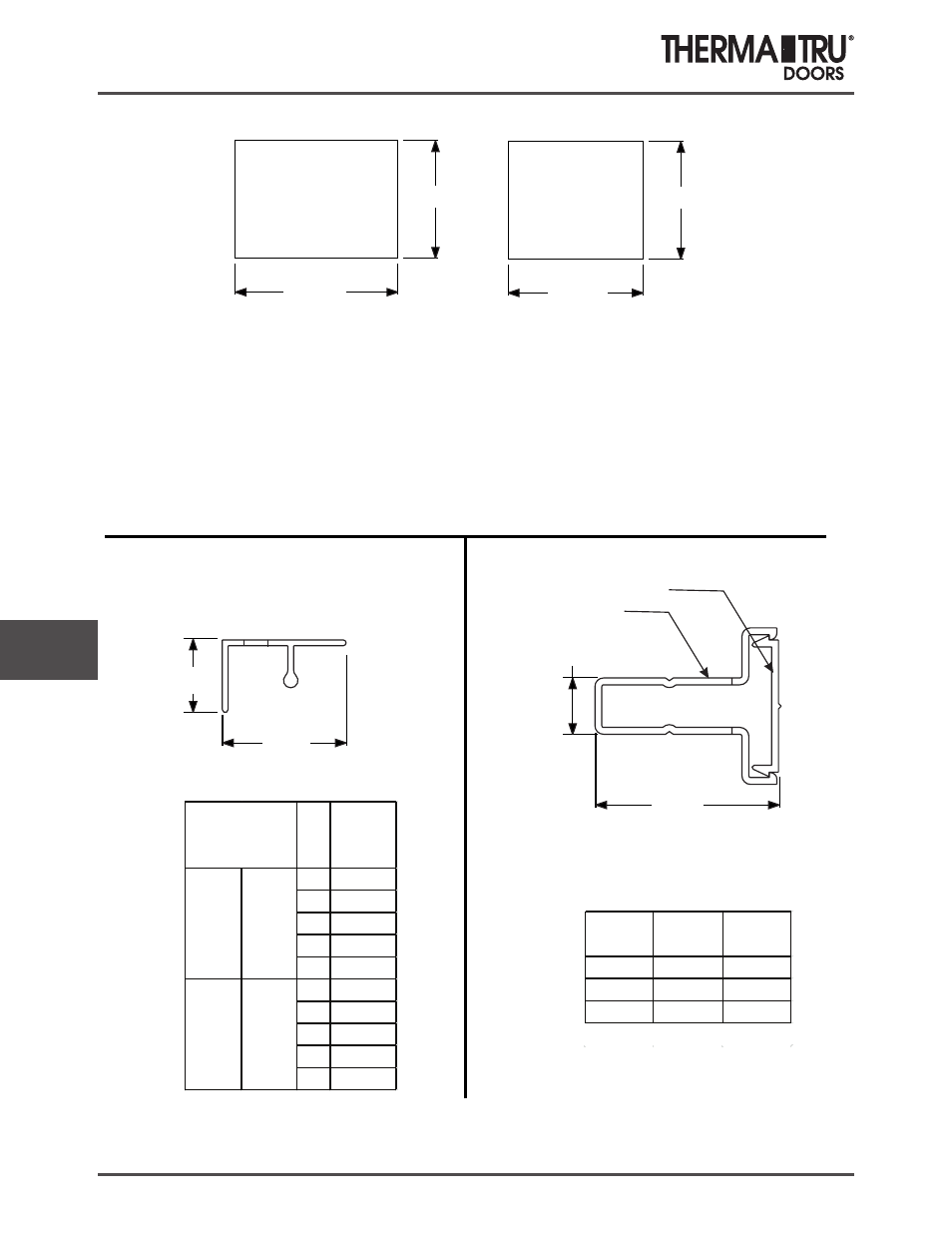

Frame Parts
10.30 2014 (BOOK SIZE) Comp 10
Mull Casing
Wood Mull Casing
Length: Standard = 81-1/4”
Transom = 95-3/4”
8/0 Height = 98”
1-15/32”
1-1/16”
1-7/32”
1-1/16”
Mull Casing - Inswing Mull Casing - Outswing
Screen Track and Stop
1.068”
.625”
Screen Track
.411”
1.340”
Screen Track Base
Screen Stop
Cover
Triple Patio Screen Stop
SIZE
"A"
OVERALL
LENGTH
4/8 57.250
5/0
61.250
5/4 65.250
5/8 69.250
6/0 73.250
4/8 57.750
5/0
61.750
5/4 65.750
5/8 69.750
6/0 73.750
ST
AN
DA
RD
M
U
LL
IO
N
ST
AN
DA
RD
DO
O
RS
W
ID
E
M
U
LL
IO
N
ST
AN
DA
RD
DO
O
RS
"BASE"
LENGTH
"COVER"
LENGTH
6/6 77.334 78.109
6/8 79.891 80.656
8/0 95.891 96.656
