43
Regency Horizon™ HZ30E-1 Gas Fireplace
INSTALLATION

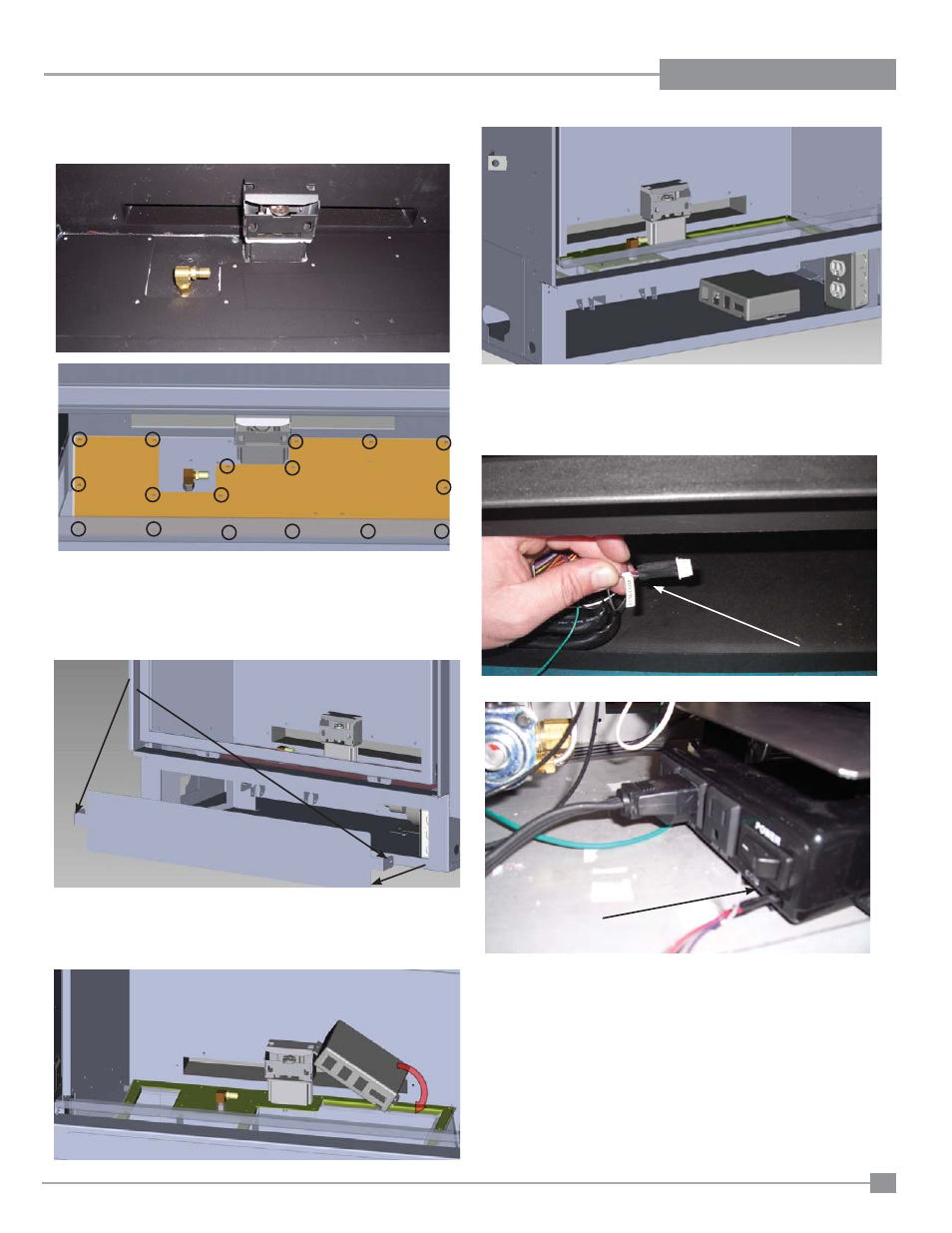

8) a) With the valve access plate removed - install the fan control module.
b) If this is a new installation - remove the installation access panel to
complete the installation.
9) The fan control module secures to the fl oor of the unit with a velcro pad.
The front of the fan control module should face toward the left. Plug the
fan control module into the receptacle in the unit.
11) See Profl ame remote instructions for coding remote to receiver as well
as operating instructions.
Note: HZ30E does not have BTU turndown, therefore this feature is inactive
on the GTMF remote.
12) Reverse steps 10-1.
10) Plug the fan power cord into the fan control module in the outlet marked
fan . Plug in the FCM wire (from the digital fi rebox control box wire har-
ness) into the location on the fan control module marked com
Location of screws on access plate
7) Remove the valve access plate by undoing the 17 outer screws - see
locations below.
FCM Wire
Com
Installation Access Panel
Screw Locations
