16
Regency Horizon™ HZ30E-1 Gas Fireplace
INSTALLATION
27
-15/16"
(709mm)
1-7/8”
(48mm)
6-1/4”
(159mm)
14-13/16
”
(379mm)
13-1/8”
(333mm)
14-13/16
”
29-1/8”
32-11/16" (830mm)
Non-combustible
Material
Non-combustible Material Non-combustible
Material
Non-combustible
Material
Metal Stud (header)
on edge
Metal Stud Metal Stud
1-7/8”
(48mm) 6-1/4”
(159mm)

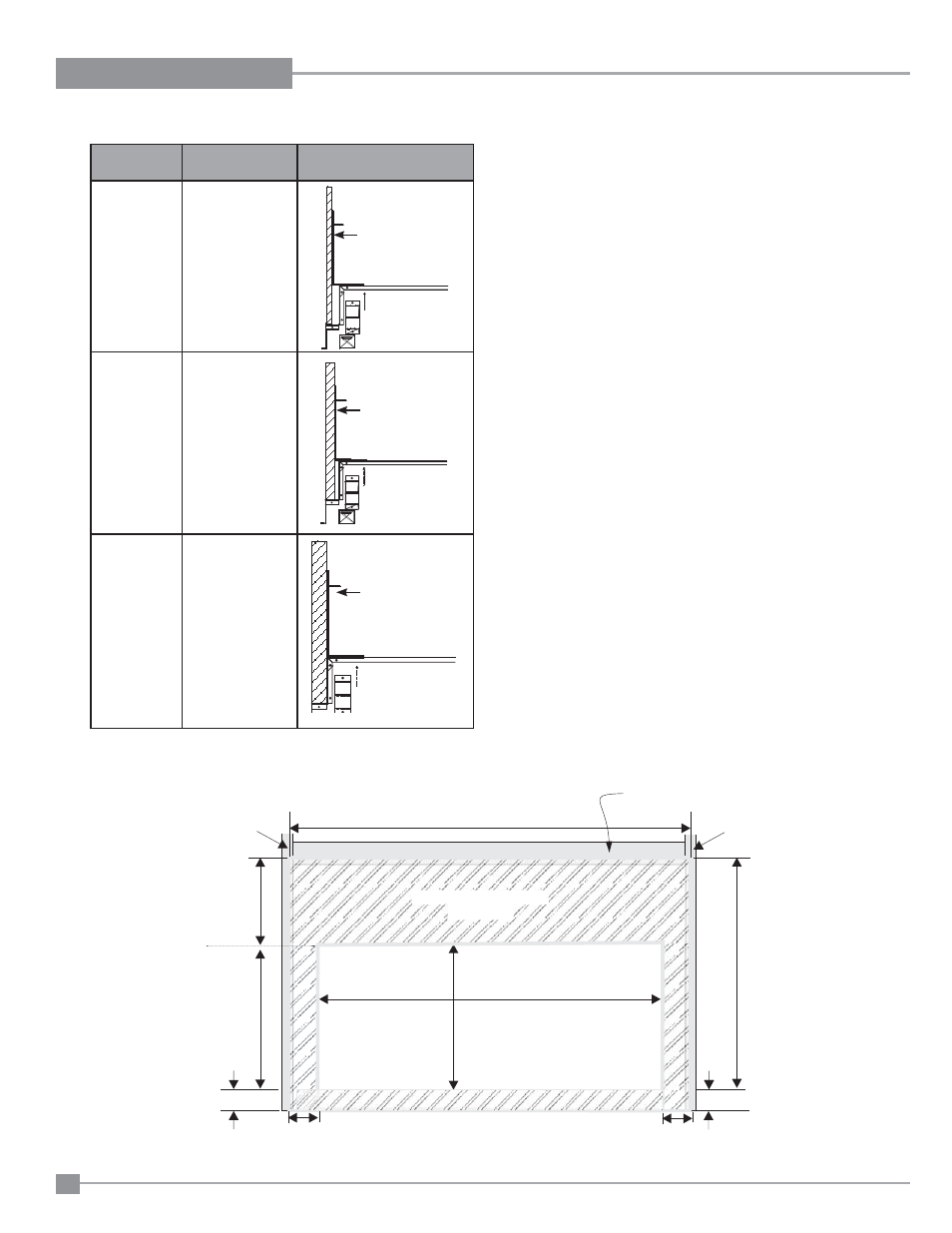

NON-COMBUSTIBLE REQUIREMENTS
FRAMING & FINISHING
Note:
Depending on the material used for fi nishing, the nailing
strips must be set accordingly so that the fi nished material
is always at the 1-1/2" edge of the fl ange.
Finished
Material
Nailing Strip
Position
1/2" 1"
1" 1/2"
1-1/2" 0" (fl ush)
Unit
Nailing Strip
1” Forward
Unit
Nailing Strip
½” Forward
Unit
Nailing Strip
Flush w/unit
Factory Set
