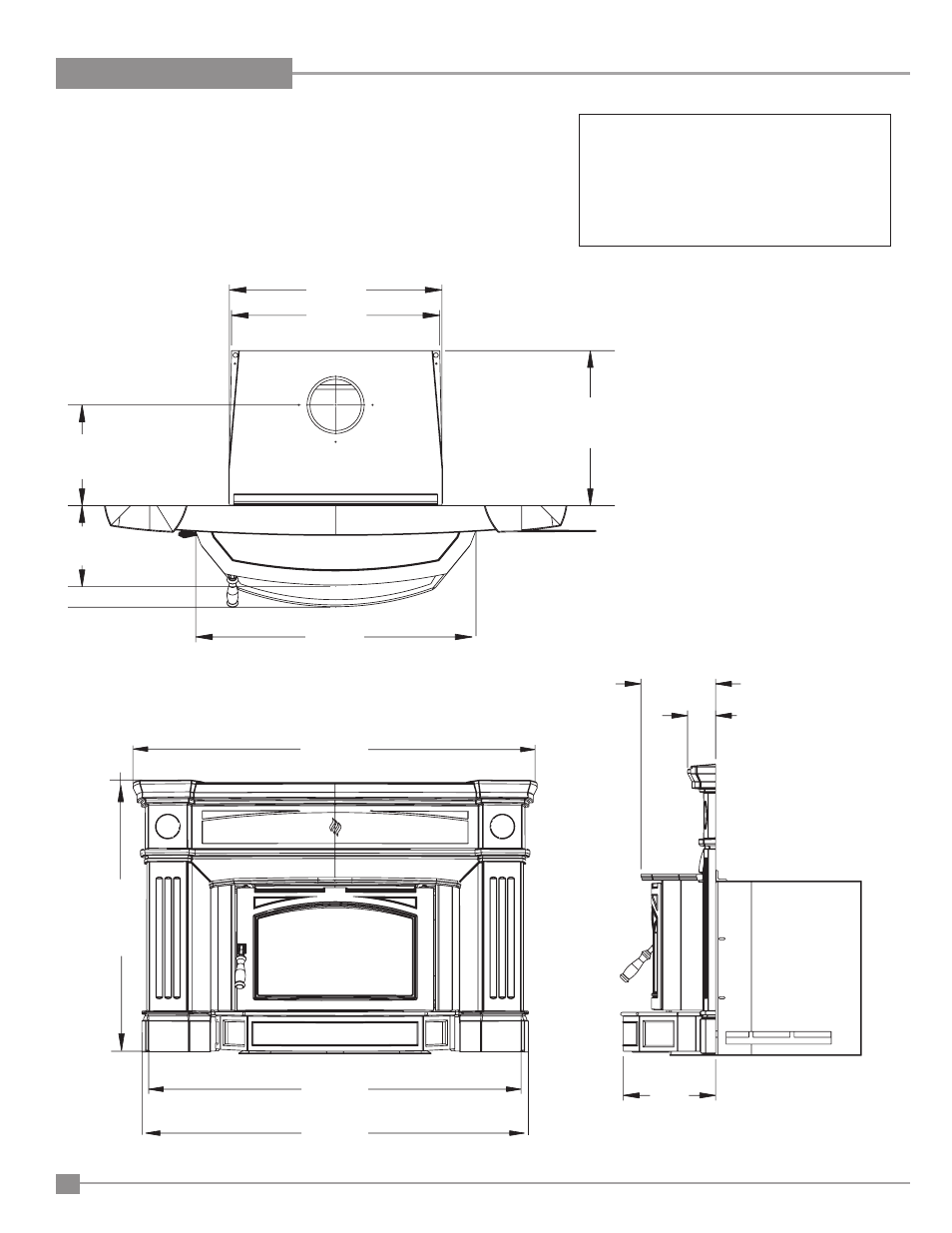

Hampton HI300 Wood Cast Insert
Dimensions
note:
Before assembling your insert, use
these dimensions to ensure appro-
priate clearances will be met (refer to
Masonry and factory Built fireplace
clearances section).
WitH oVersize
cast faceplate
16-31/1
6”
9-7/16
”
11
-1/8
”
12-1/2”
30-7/8"
23-1/4”
23-3/4”
9-7/8”
3-1/2”
12-1/8”
34-9/16
”
51-15/16”
48”
48-7/8”
