Hampton HI300 Wood Cast Insert
15
installation
918-967 05/02/11 2
HI300

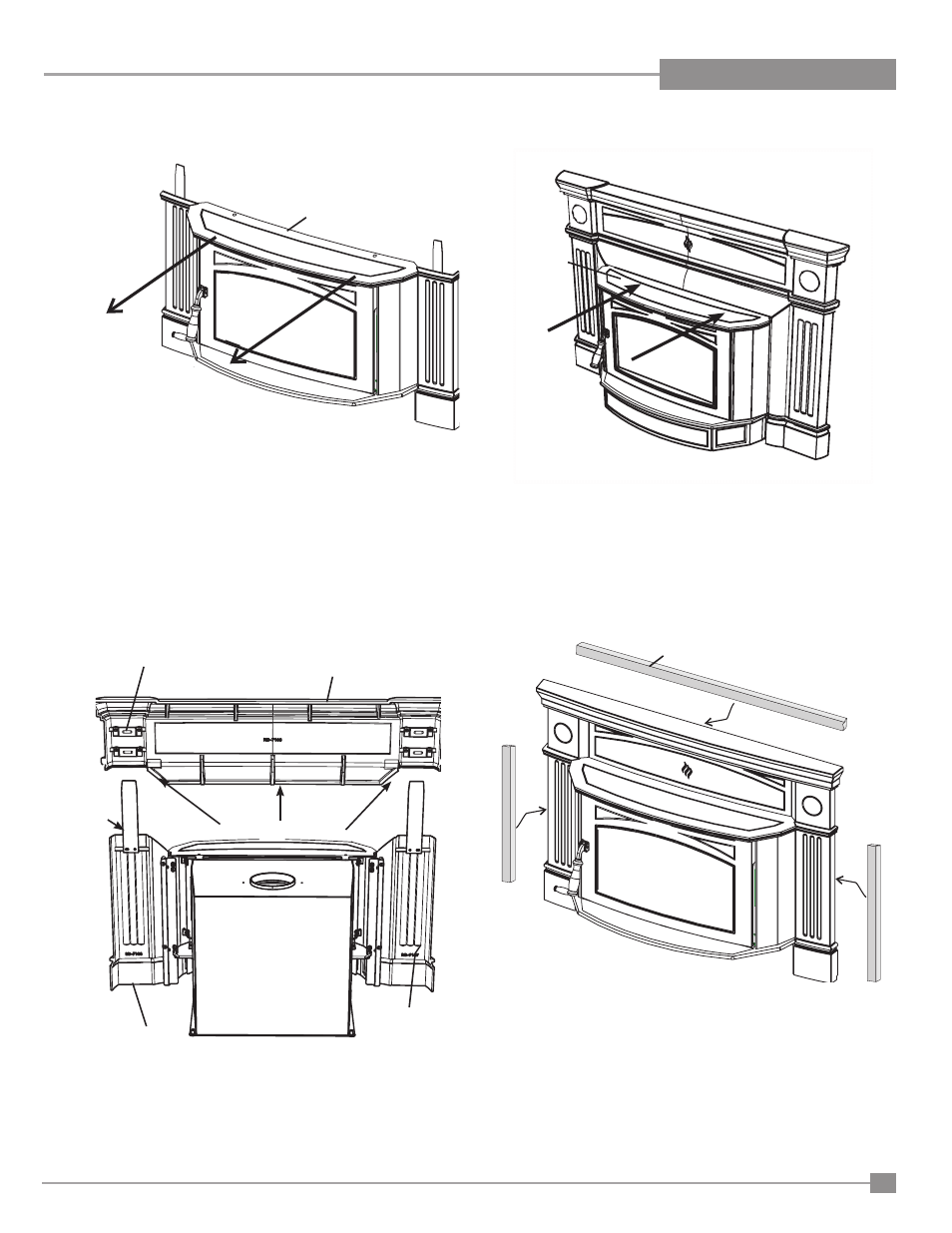

6) Place supplied gasket to bottom edge of top faceplate - continue
gasket up each side at a 45 ° angle.
7) Mount the Top Faceplate by carefully sliding the Mounting Plates on
the Left and Right Side Faceplate through the Retainers in the Top
Faceplate.
NOTE: Slowly lower the Top Faceplate into position; being careful
not to damage the Mantel Top.
Backside of Unit & Faceplate Shown.
NOTE: Installing the top faceplate will require 2 people - it is
heavy and awkward to handle.
Retainer
Mounting Plates
Gasket Location
Top Faceplate
Right Side Face-
plate
Left Side Faceplate
8) Carefully slide the Mantel Top back into position.
Slide Mantel
Top back.
9) Adjust Left Side Faceplate and tighten bolts. Repeat step for Right
Side Faceplate.
10) Location of Insulation:
a) Place 1 piece of Insulation behind the Mantel Top.
b) Cut the second piece of Insulation in half, then install behind both
the Left and Right Sides as shown.
11) The unit may now carefully be slid into fi nal position.
See side cast adjustments if faceplate needs aligning.
Insulation
5) Slowly slide the Mantel Top forward until it stops.
Slide Mantel Top
