Regency ® CLASSIC C34-3 Direct Vent Freestanding Gas Stove

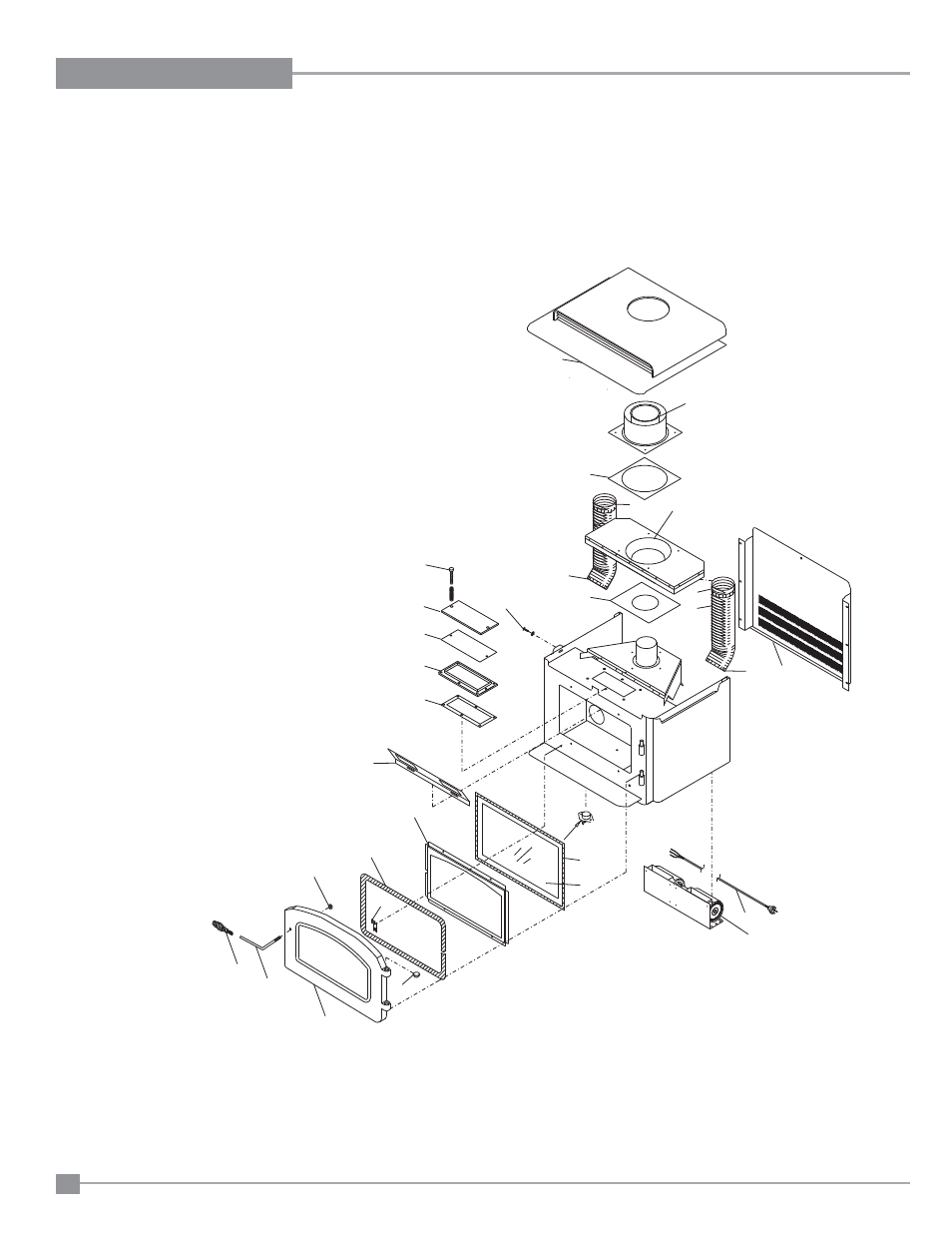

PARTS LIST
3
12
4
20
13
14
19
DOOR
6
7
22
FAN ASSEMBLY (OPTIONAL)
41
5
38
30
31
32
33
35
26 37
26
25
26
27
28
24
40
26
1
17
21
MAIN ASSEMBLY
Part # Description
1) 490-550 Door Assembly-Gold (no glass)
490-552 Door Assembly-Black (no glass)
490-941 Small Door - Black
490-942 Small Door - Gold
490-943 Small Door - Nickel Accent
490-944 Small Door - Gold Accent
3) 846-302 Small
Glass
4) 936-240 Glass Gasket (1/8")
5) * Nut - 3/8 N/C Jam
6) 490-028 Glass Frame
7) 948-074/15 Door Handle
12) 936-233 Door Gasket
13) 846-918 Hinge Cap (set of 2)
14) * Screw 10-24 x 3/4"
17) 471-031 Door Retainer Clip
19) 948-101 Spring Handle (Large)
20) 490-917 Complete Fan Assembly (Optional)
910-157/P Blower Motor (120V)
21) 910-142 Fan Auto on/off Thermodisc
22) 910-794 Power Cord (120V)
24) * Gasket - Air Passage
25) * Flex Pipe - 3" ID
26) * Stainless Steel Hose Clamp
27) 936-197 Gasket - Flue Collar/Starter Collar
28) 936-194 Gasket - Starter Collar/Air Passage
30) W260260 Relief Frame Gasket
31) 942-117 Top Relief Plate Frame
32) W260280 Top Relief Plate Gasket
33) 290-021 Air Baffl e Plate
35) * Capscrew 1/4 x 1-3/4" NC
37) * Upper Air Passage Assembly
38) 490-081 Flue Restrictor
40) 490-520 Top Assembly
41) 490-042 Rear Panel
918-512 Manual
*Not available as a replacement part.
