22
Regency ® CLASSIC C34-3 Direct Vent Freestanding Gas Stove
INSTALLATION
DURA-VENT
TERMINATION KIT
Planning Your Dura-Vent
Installation
There are two basic types of Dura-Vent Direct
Vent System installations: horizontal termination
and vertical termination. Confi rm the maximum
horizontal run and maximum vertical rise from the
diagrams in "Venting Arrangments" section.
When planning your installation, it will be nec-
essary to select the proper length of vent pipe
for your particular requirements. For horizontal
installations, determine the minimum clearance
from the rear of the unit to the wall. It is also
important to note the wall thickness. (The wall
thimble is suitable for 2 x 4 or 2 x 6 wall construc-
tion.) Select the amount of vertical rise desired
for "vertical-to-horizontal" type installations.
Warning: Always maintain required
clearances (air spaces) to nearby com-
bustibles to prevent a fi re hazard. Do
not fi ll air spaces with insulation.
The minimum clearance of 1-1/4" (32mm) is re-
quired between the outer wall of the vent pipe and
nearby combustible surfaces. Be sure to check
the vent termination clearance requirements
from decks, windows, soffi ts, gas regulators, air
supply inlets and public walkways as specifi ed
in the "Exterior Vent Terminal Locations" section
and in your local building codes.
To determine the length of vent pipe required
for vertical installations, measure the distance
from the unit fl ue outlet to the ceiling, the ceiling
thickness, the vertical rise in an attic or second
storey, and allow for suffi cient vertical height
above the roof line.
For multi-storey applications, fi re stops are
required at each fl oor level. If an offset is
needed, additional pipe, elbows and supports
will be required.
You will require the following Dura-Vent venting
components with your new CLASSIC Direct
Vent Freestanding Gas Stove. Please review
your product to make sure you have everything
you need. In the event that you are missing any
part, contact your dealer.
Note: These are the minimum components
required. Other parts may be required
for your particular installation. See
"Rigid Pipe Venting Components
List" section.
If installing termination on a siding covered wall,
a vinyl siding standoff or furring strips can be
used in order to ensure that the termination is
not recessed into siding.
The vinyl siding standoff is required for walls
with vinyl siding.

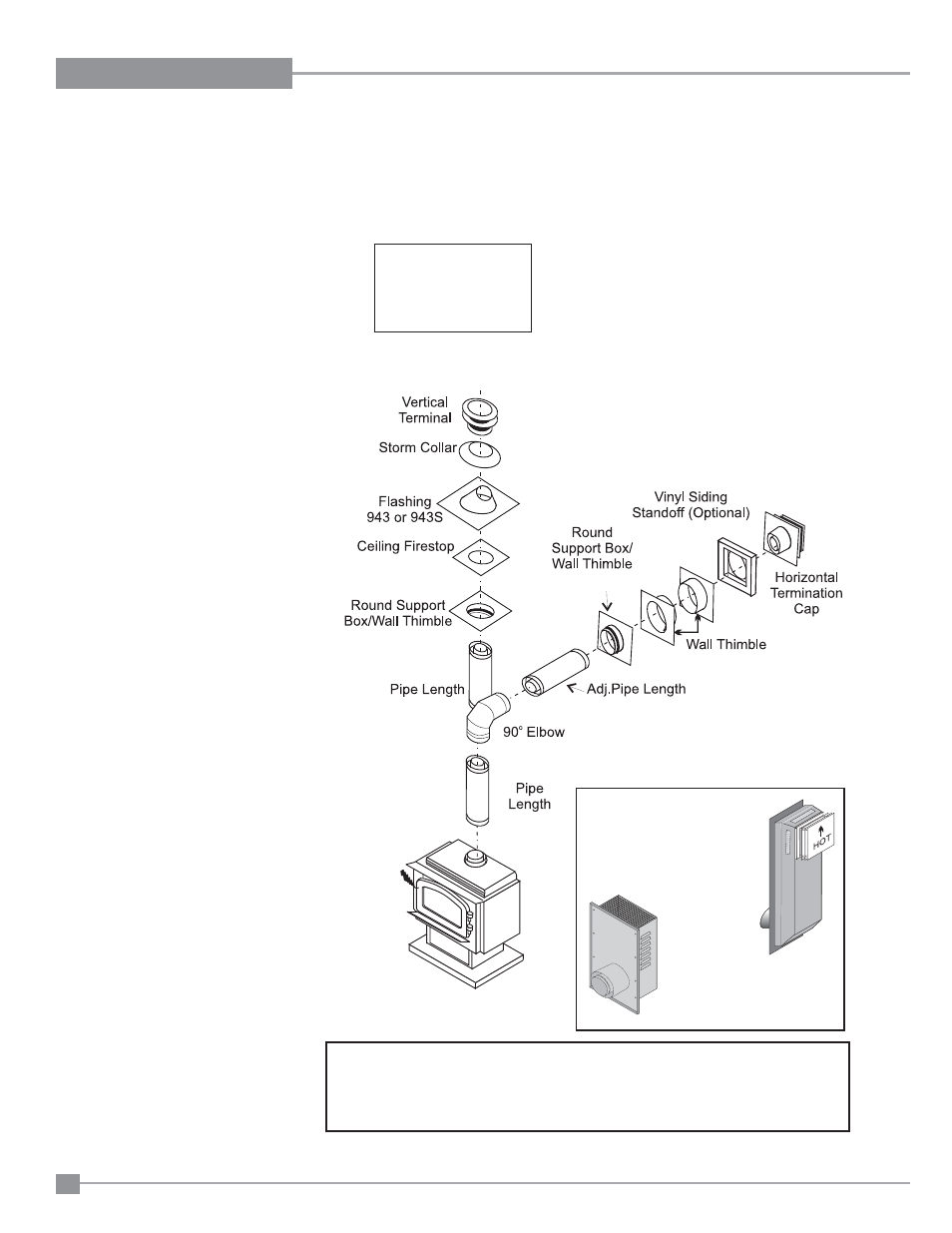

Basic
Horizontal Kit
1 90 o Elbow
1 Wall Thimble Cover
1 Horiz. Sq. Term. Cap
Alternate Horizontal
Termination Caps
Alternate Horizontal
Riser Vent Terminal
Part# 640-530/P
Alternate Snorkel
Termination Cap
The FPI AstroCap TM and FPI Riser Vent terminal are certifi ed for installations using FPI venting sys-
tems as well as Simpson Dura-Vent ® Direct Vent , American Metal Products Ameri Vent Direct Vent,
Security Secure Vent ® , Selkirk Direct-Temp. AstroCap TM is a proprietary trademark of FPI Fireplace
Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks
of Simpson Dura-Vent Co. Inc.
