MAINTENANCE

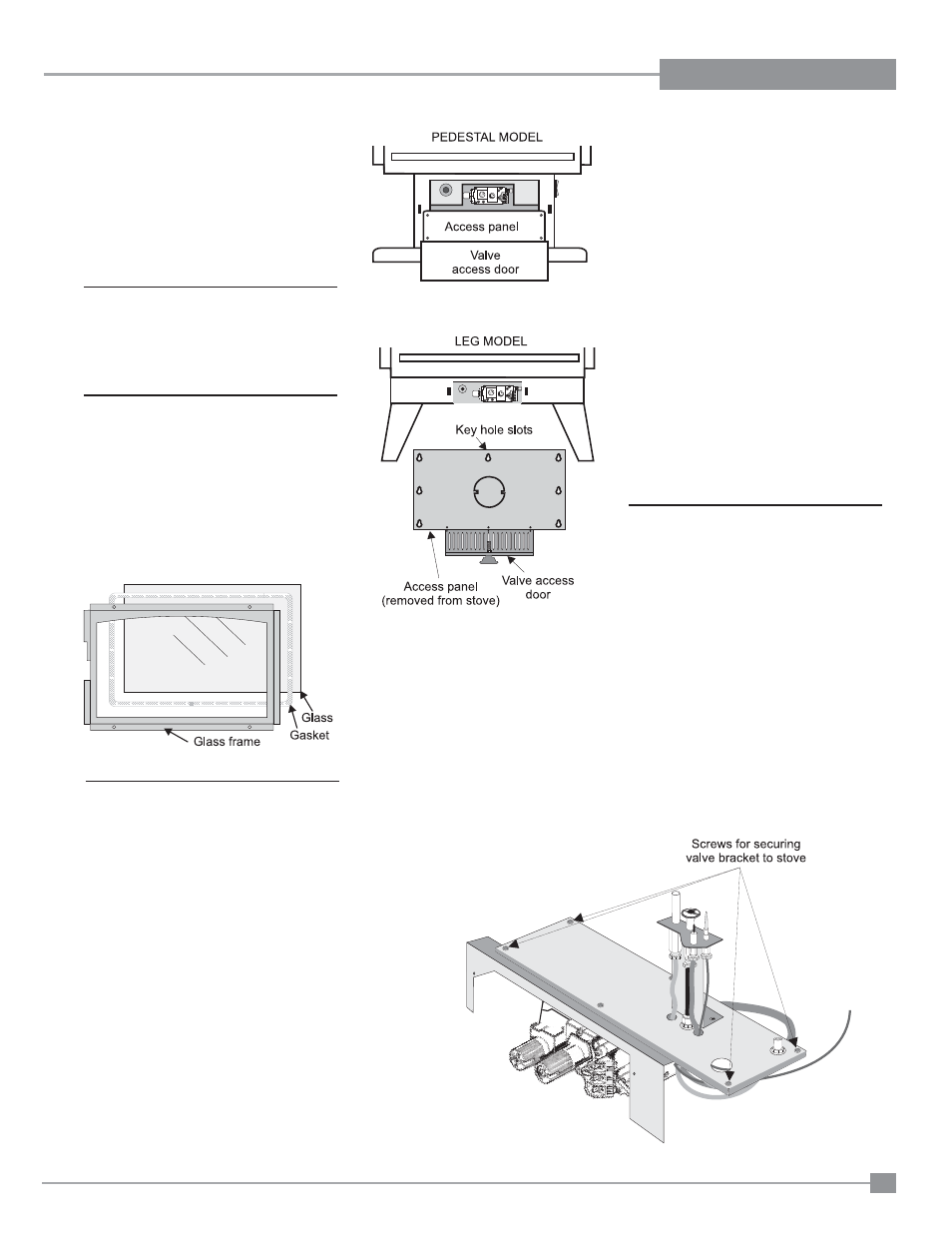

REMOVING VALVE
ASSEMBLY
1) Shut off gas supply.
2) If optional fan is installed, disconnect power
source to stove.
3) Remove access panel.
a) Front panel on pedestal model. See
diagram 1.
b) Panel from bottom of leg shield. See
diagram 2.
Note: Access panel only has to be loosened
to be taken out.
4) Remove front cover with piezo igniter by
removing two (2) sheet metal screws.
5) Disconnect piezo wire.
Diagram 2
Diagram 1
6) Disconnect gas line to stove.
7) Disconnect 3/8" NPT pipe from 90 o elbow
on valve.
8) Disconnect the two (2) switch wires from
valve.
9) Remove orifi ce.
10) Loosen four (4) phillips head M5 valve mount-
ing screws from underside of fi rebox. Drop
valve assembly down.
To remove valve from valve assembly,
continue.
11) Remove two (2) thermopile wires.
12) Remove thermocouple with a 9 mm (metric)
wrench.
13) Remove pilot nut with an 11 mm wrench.
14) Remove valve to orifi ce nut with a 13/16"
wrench.
15) Remove inlet pipe with pipe wrench. Note
orientation of 90 o elbow.
16) Remove two (2) phillips head M5 screws on
each side of the valve.
17) Remove valve and remove gas out 90 o brass
fi tting. Note orientation of fi tting.
See diagram in "Optional Fan Installation"
section for more detail.
INSTALLING
VALVE ASSEMBLY
1) To install a new valve assembly, reverse
instructions for removing valve. See as-
sembly steps 1-10.
2) Check for leaks and manifold pressure. See
Gas Pressure Test instructions.
3) To reinstall valve, reverse instructions for
removing valve assembly, steps 11-17.
GOLD-PLATED DOORS
The 24 carat gold plated fi nish on the door
requires little maintenance, and need only
be cleaned with a damp cloth. DO NOT use
abrasive materials or chemical cleaners, as
they may harm the fi nish and void the warranty.
Clean any fi ngerprints off before turning
the unit on.
GLASS GASKET
If the front glass requires replacement use a
front glass gasket (Part # 936-243).
GLASS
REPLACEMENT
Your CLASSIC stove is supplied with high tem-
perature, 5 mm Neoceram ceramic glass that
will withstand the highest heat that your unit will
produce. In the event that you break your glass
by impact, purchase your replacement glass from
an authorized Regency
® dealer only.
