Component description

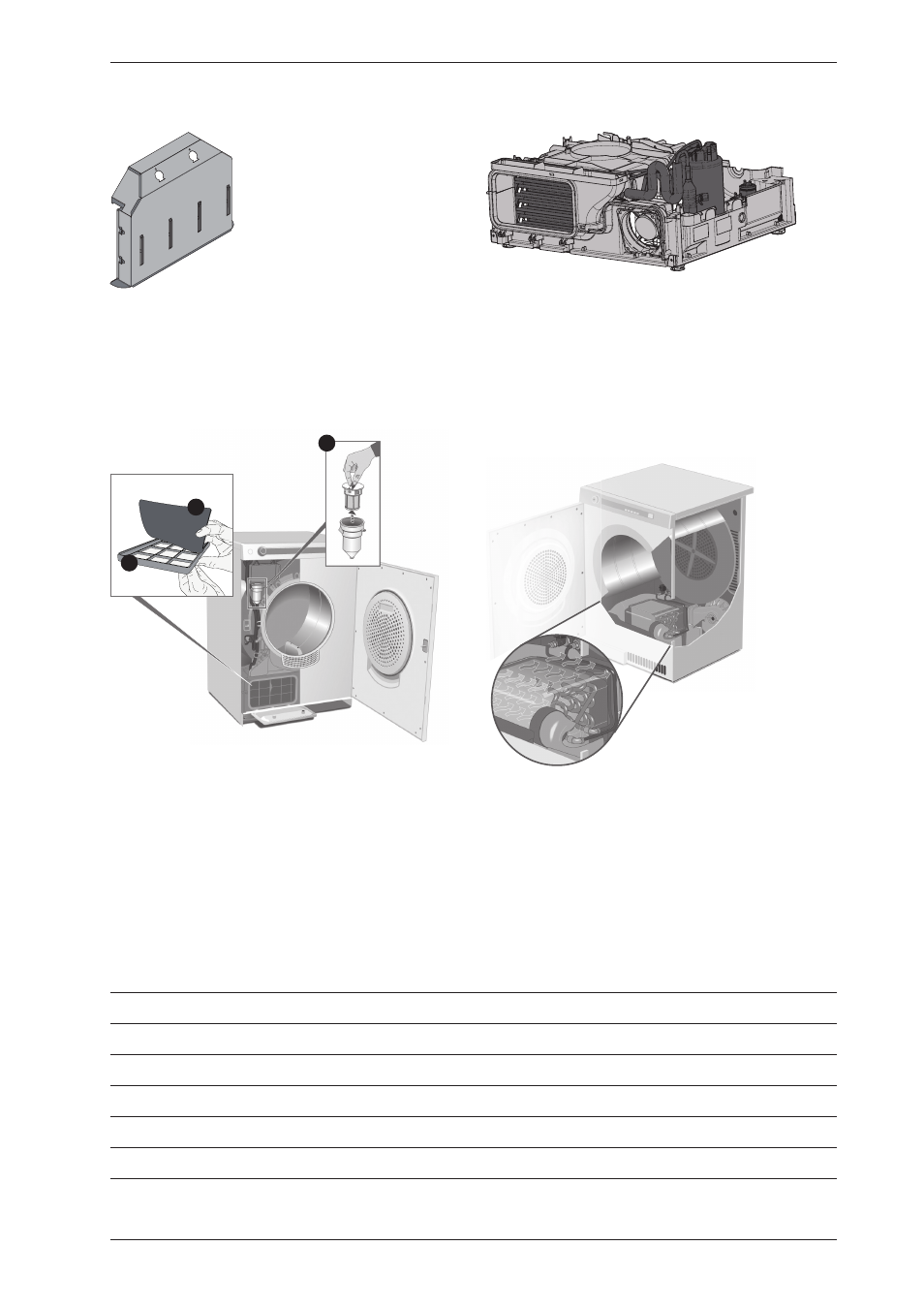

Heating element
The heating element is located in the rear section
and consists of two separate heating coils. Each
heating coil is made from resistance wire.
Purpose: To heat the drying air to the right
temperature.
1B
1A
2
Evaporator filter and Auto filter
for Heat pump (HP)
Tumble dryers with heat pump are fitted with
evaporator filter containing a net filter (1A)
and a foam filter (1B). Some dryers can also be
fitted with auto filter, which consists of a water
filter (2), that is located under the condensed
water container.
Heat pump (HP)
Certain types of machine are fitted with heat
pump systems. These systems are closed
circuits that are replaced by replacing the
machine’s base plate with a new module.
The function settings are adjusted in the
service menu.
Heating Water Circuit (HWC)
A certain type of machine is adapted for
connection to the building’s existing heated
water supply (such as district heating) to
reduce energy consumption.
The function settings are adjusted in the
service menu.
