THIS PAGE FOR FRONT LOADING UNITS ONLY.
Parcel Locker Installation
1. Construct wall and parcel locker support structure with drywall,
2x4 lumber, and 3/8” plywood. 2x6 lumber may be used for a
stronger wall. See illustration on Page 4.
2. Cut a hole(s) in the wall according to the rough opening
dimensions. Each parcel locker unit assembly should have its own
opening in the drywall.
3. Open parcel locker door. See illustration below.

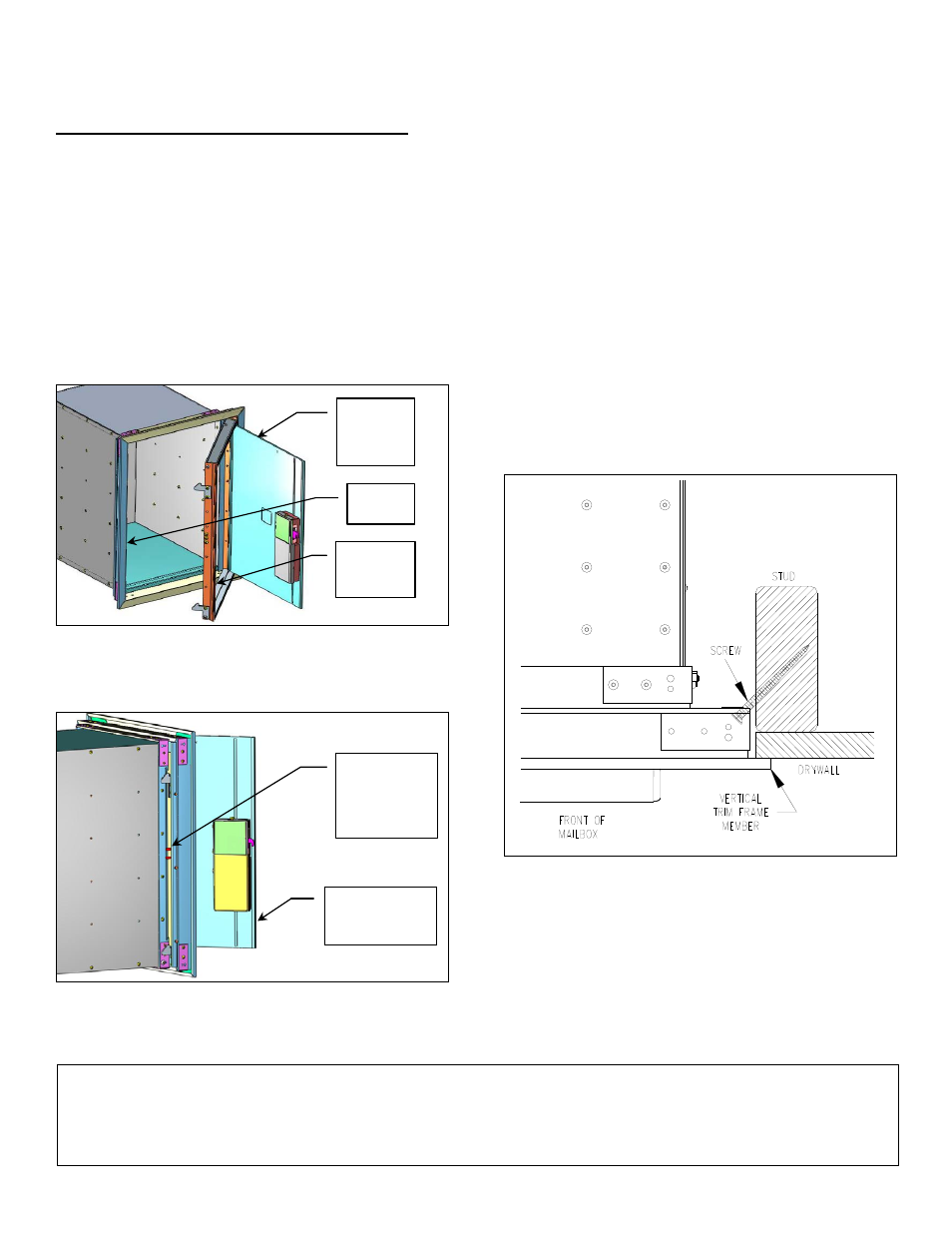

Illustration 2 - Door and Trim Frame Location
SALSBURY INDUSTRIES
1010 East 62
nd
Street, Los Angeles, CA 90001-1598
Ph: 1-800-624-5269 Int’l Ph: 323-846-6700
Fx: 1-800-624-5299 Int’l Fx:
323-846-6800
www.mailboxes.com [email protected]
Installation instructions are provided as general guidelines. It is advised that a professional installer be consulted. Salsbury Industries assumes no product assembly or installation liability.
Copyright © 2009 Salsbury Industries. All rights reserved. (P/N 370178, Rev. 08, 9/23/09) Page 2 of 5
4. Open door frame using lockbar by lifting lockbar screws. See
illustration below.
Illustration 3 - Rear View Showing Lockbar Screws
5. Place unit(s) into rough opening(s). Note the mounting hole
locations and drill pilot holes into the studs. Securely fasten to the
framing with the 4 screws provided. See illustration below. Install all
4 screws into the 2 holes provided in each of the right and left side
vertical trim frame members.
Caution: Do not deform, force, or twist the parcel locker frame
to fit an incorrect rough opening or against an irregular surface.
Do not over-tighten the installation screws. If necessary, shim
the small space between the stud and the vertical trim frame
member.
6. Close the door frame into the lockbar with sufficient force to lock.
Caution: Once closed, you will not be able to open the door
frame.
7. Test each parcel locker door to ensure that it opens and swings
freely without binding or sticking.
PARCEL
LOCKER
DOOR
OPEN Illustration 4 - Fastening Mailbox Unit to Framing
TRIM
FRAME
DOOR
FRAME
OPEN
RAISE
TWO (2)
SCREWS
TO LIFT
LOCKBAR
PARCEL
LOCKER
OPEN
