25 • Overview of the Data Cal 2000 Software
• Instrument calibration controlled by the Calibration button
Main Program Window
The main program window is where the current status of the software
operation is shown. Any docking modules and instruments that are
connected to it and any instruments that have been but are not currently
connected to it are also shown. The program’s various functions are
initiated or accessed from this screen. The current date and time are
always displayed in the lower right corner of the main window.
Control Buttons
The Solenoids, Cylinders, Config, Logs, and Exit control buttons are
located along the top left of the window. The Bump test and Calibration
control buttons are located in the lower right of the window along with a
Force Calibration selection box. The use of these control buttons and the
Force Calibration selection box is described in other parts of this manual.

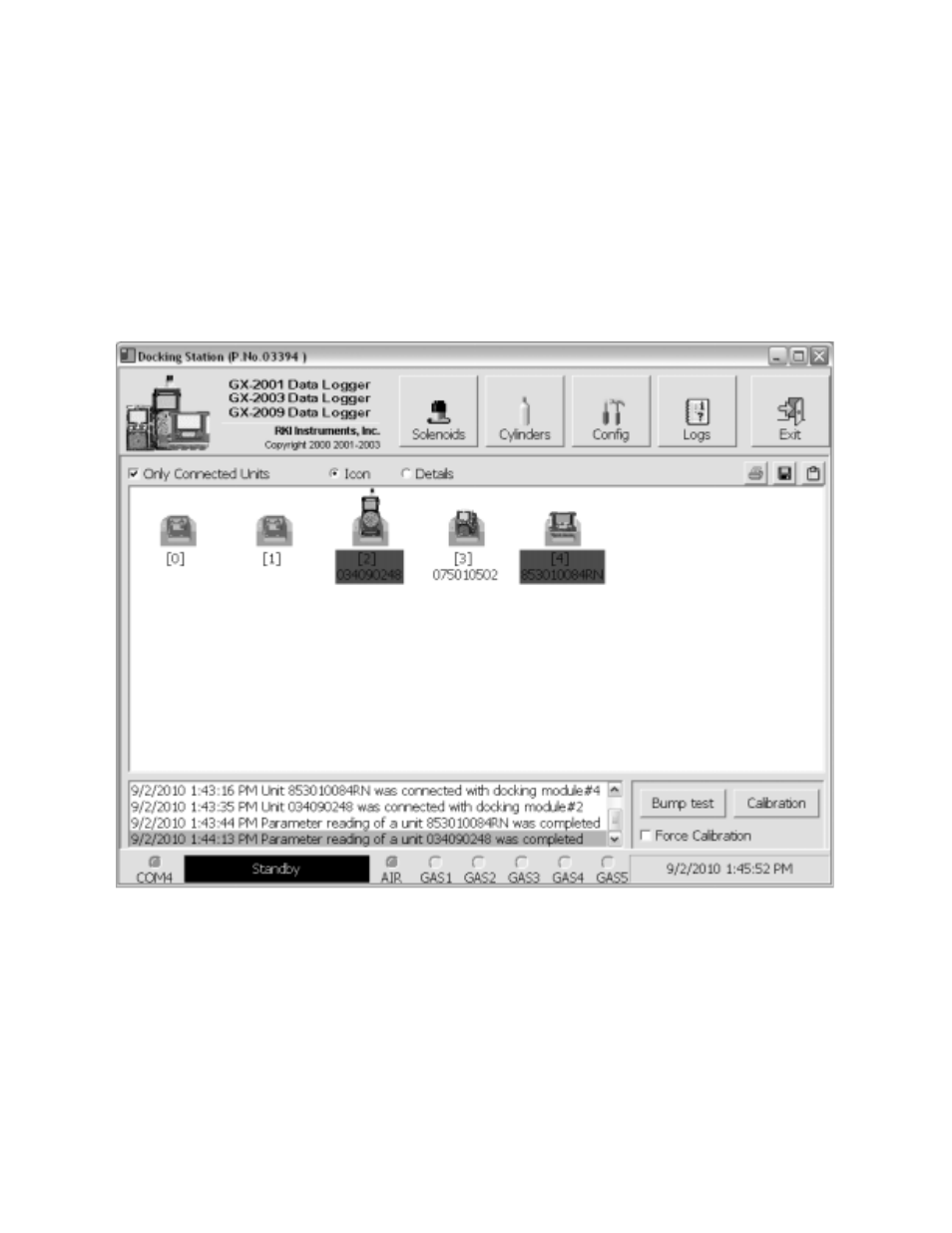

Figure 16: Parts of the Main Program Window
