35 • Maintenance SC-01 Operator’s Manual
6. With the sensor plug gently touching sensor socket, turn the sensor
clockwise or counterclockwise while pushing the sensor very lightly until
you feel it drop into place as the sensor plug aligns with the sensor
socket and partially engages it. With the sensor plug and sensor socket
partially engaged, the sensor will no longer rotate freely.
Notch for Sensor Retainer Tab
Sensor Socket
Sensor Opening

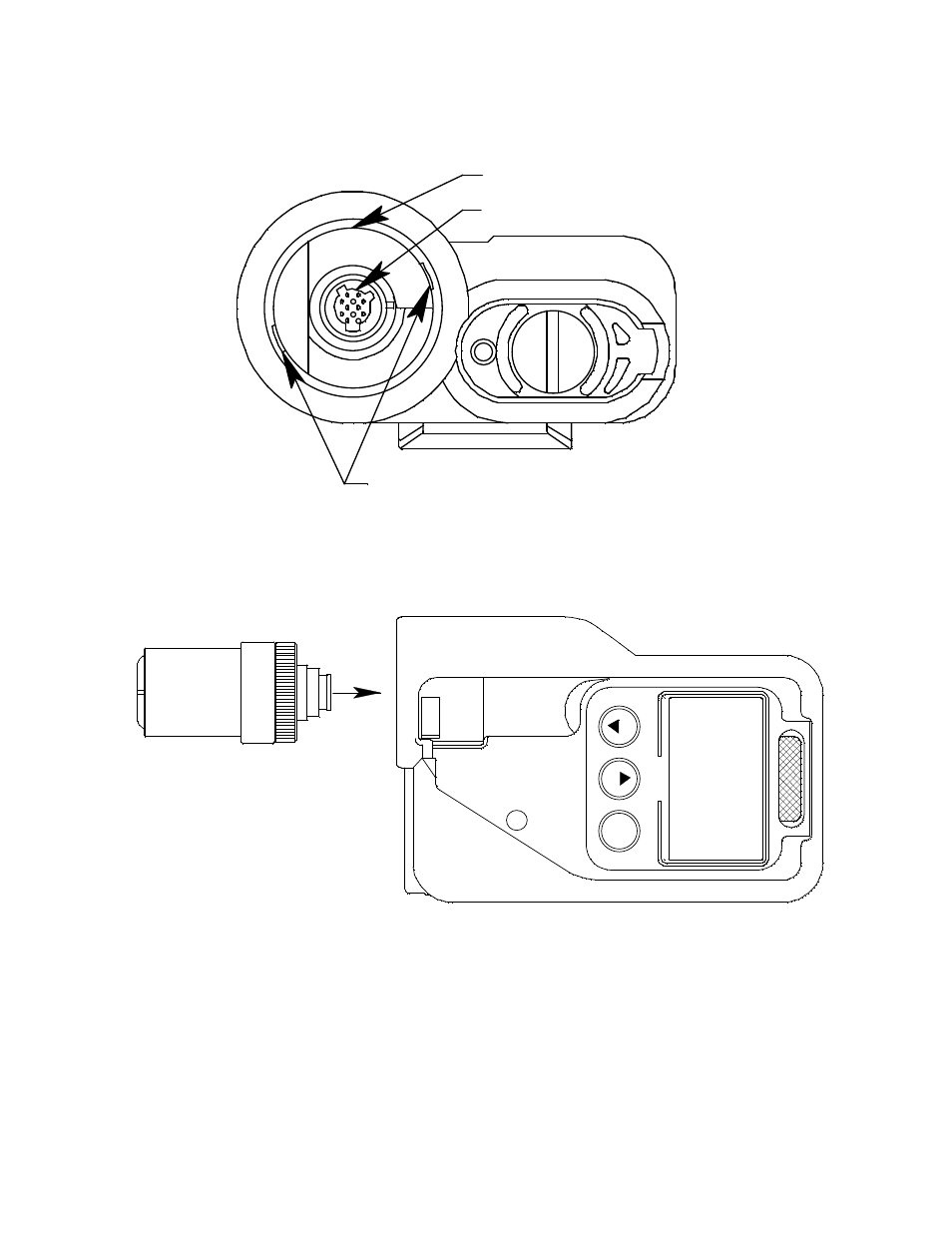

Figure 7: Sensor Opening & Sensor Socket in SC-01
DI
S
P
PO
W
E
R
RK
I
AI
R
Sensor
Figure 8: Inserting the New Sensor
