SET UP INSTRUCTIONS
169216 Revision E 7
C
A
B
M150 / M200 RAIL WITHOUT ADAPTER
E
D - REMOVE

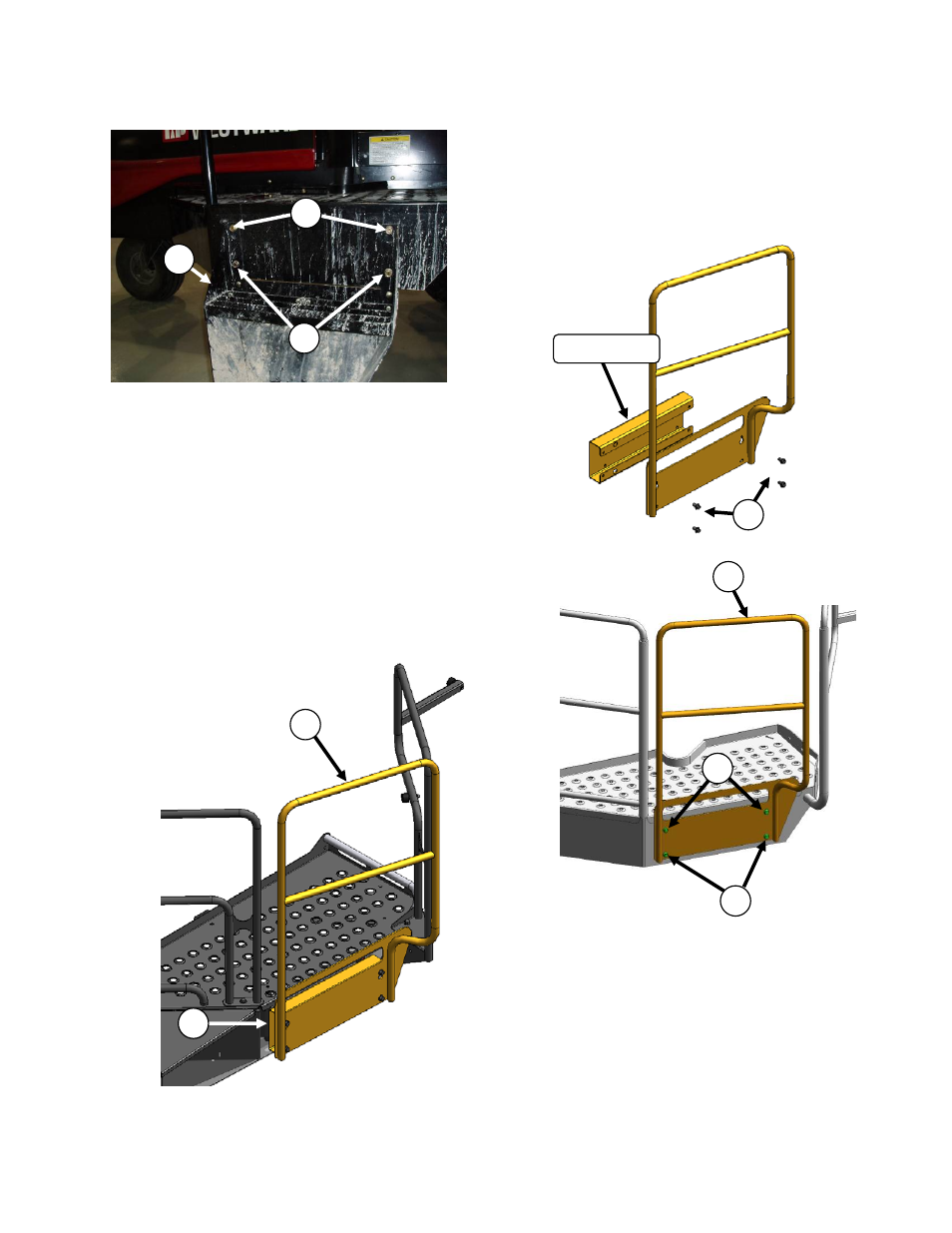

Platform rail installation
To install the platform rail, follow these steps:
1. Remove right hand steps (S) from platform
by loosening two top bolts (A) and removing
two bottom bolts (B). Lift steps to detach at
top keyhole slots (A). Retain bolts for
next step.
2. Install rail (C) to right hand platform as
follows:
M155/M205: Hang rail (C) complete with
adapter plate (D) by engaging keyhole slots
on top bolts (A). Install two bottom bolts (B)
and tighten all four bolts.
M150 / M200: Remove adapter plate (D) by
removing four 1/2 NC x 1 in. flange bolts (E)
and nuts. Hang rail (C) without spacer plate
by engaging keyhole slots on top bolts (A).
Install two bottom bolts (B) and tighten all
four bolts.
M155 / M205 RAIL WITH ADAPTER
D
C
A
S
B
