MacDon DWA for M Series User Manual

Page 11

SET UP INSTRUCTIONS

169216

Revision

CAB END



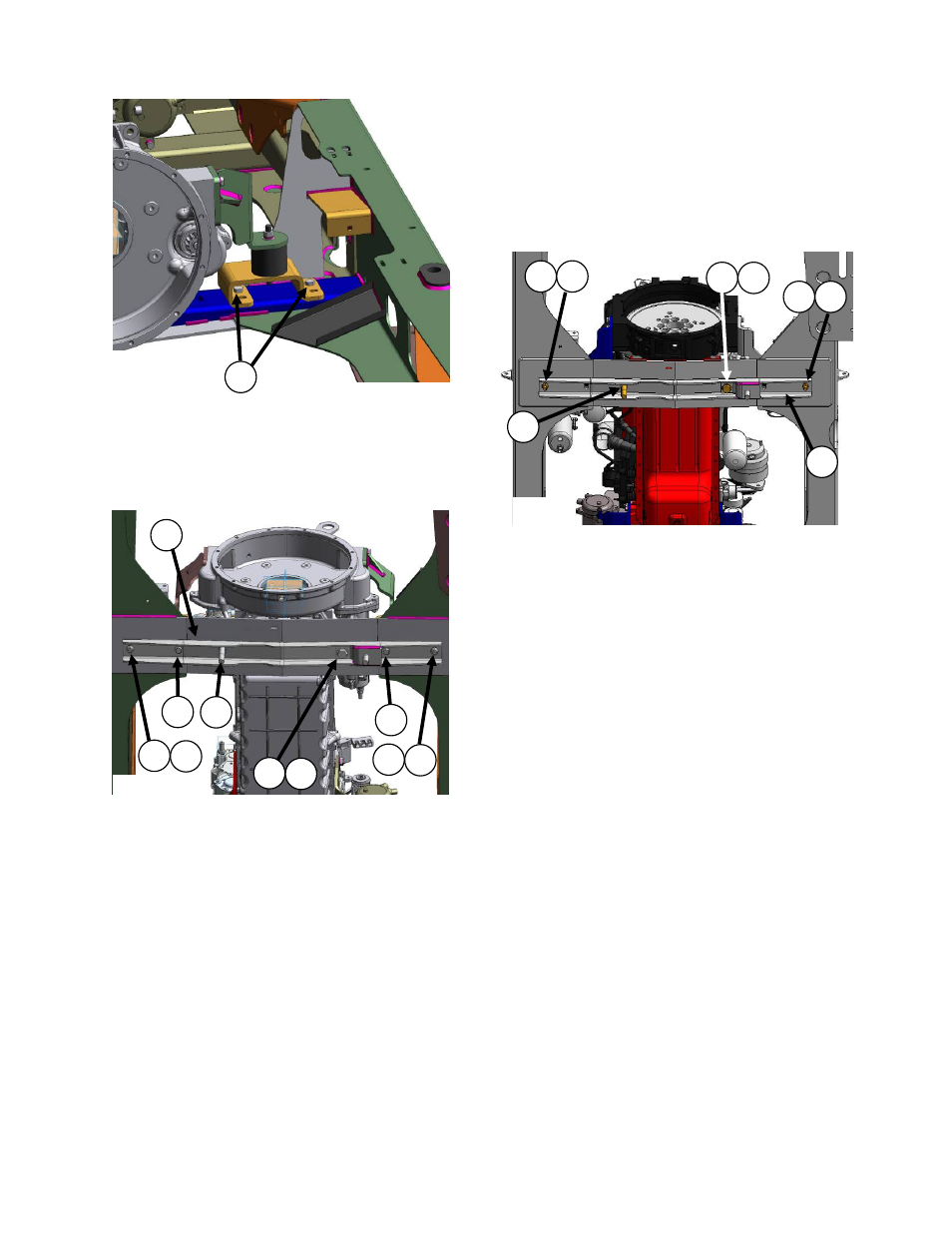

VIEW FROM UNDERNEATH WINDROWER

M205

5. M200: Remove four bolts (D) from the front

engine mounts, two on left side and two on
right side. Retain nuts for reuse.

6. M200: Mount support (A) to windrower

frame with four 1/2 x 2-3/4 in. long hex head
bolts (F), flat washers (under bolt heads)
and nuts (E). These bolts replace the engine
mount bolts (D) removed in step 5.
NOTE: Outer two bolts (F) are installed with
heads on topside and inner two bolts (F) are
installed with heads underneath.

• From underneath, install a 3/4 x 3-1/2 in.

long hex head bolt (G) with flat washer
(H) under bolt head. Secure with flat
washer, lock washer and nut on
top side.

• From top side, install a 3/4 x 5-1/2 in.

long hex head bolt (J) with flat washer
(H) under bolt head. Do not install nut
on bolt (J).

• Go to Step 8.

7. M205: Mount support (A) to windrower

frame with two 1/2 x 2-3/4 in. long hex head
bolts (F), flat washers (under bolt heads)
and nuts (E).
