Wiring 7

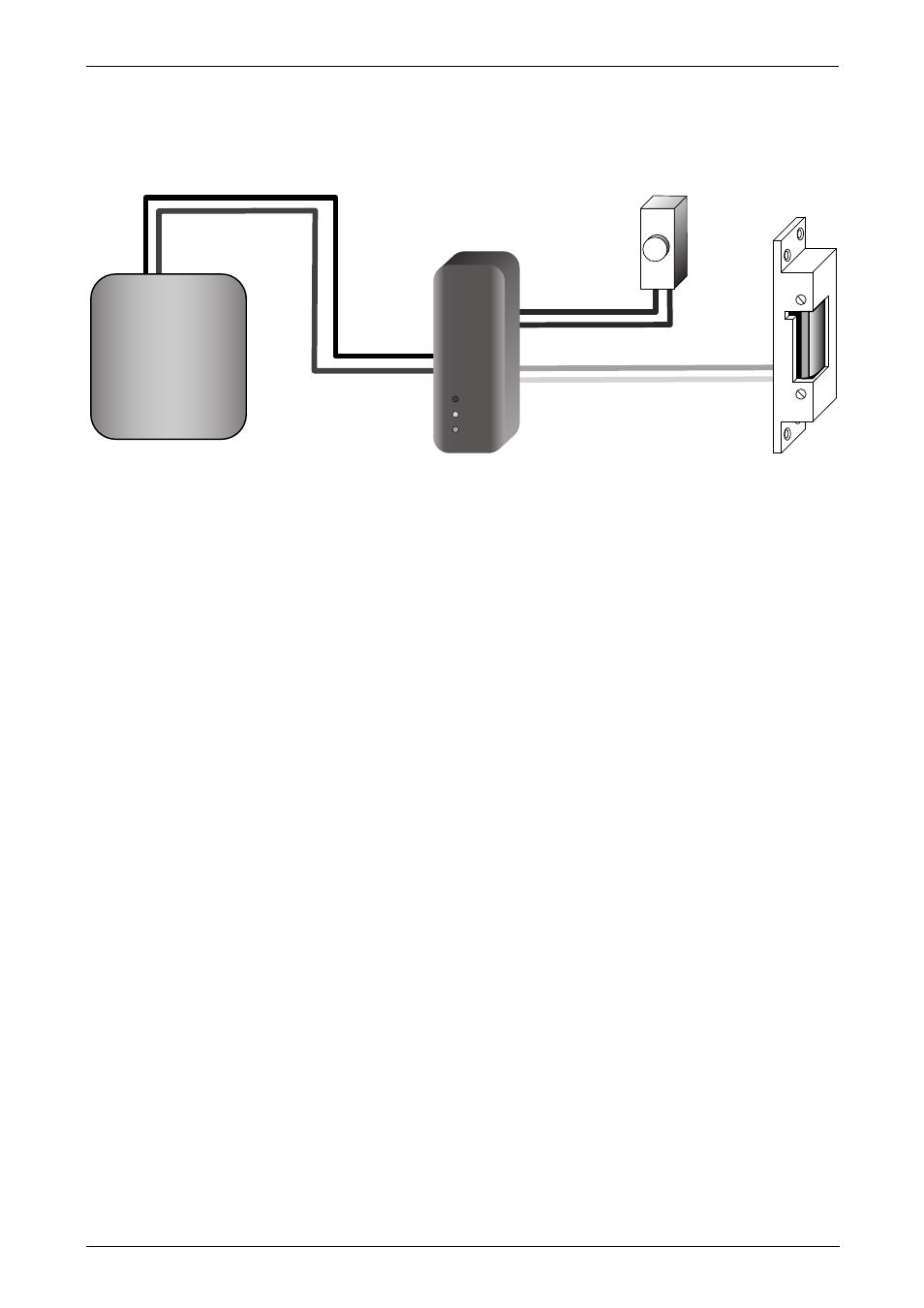

Wiring
D.C. POWER
SUPPLY
12V
DO NOT USE
A.C. SUPPLY
PROXIMITY compact slimline
reader black 569-117BL
Green/yellow lock wires
will drive up to:
500mA continuous
(750mA for up to 7 seconds)
Positive wire is yellow
Total load must not exceed PSU capacity.
Door exit (push to make).
Note - this input can be
connected to an entryphone
but only via voltage free contacts
+12V d.c.
0V d.c.
+12V d.c.
0V d.c.
Yellow
Green
Blue
Blue
Red
Black
