Paxton Hands free read range tester - Manual

Ins-30094 Hands free read range tester
25/03/2010
Technical Support
Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT)
Saturday from 09:00 - 13:00 (GMT)
01273 811011 [email protected]
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/

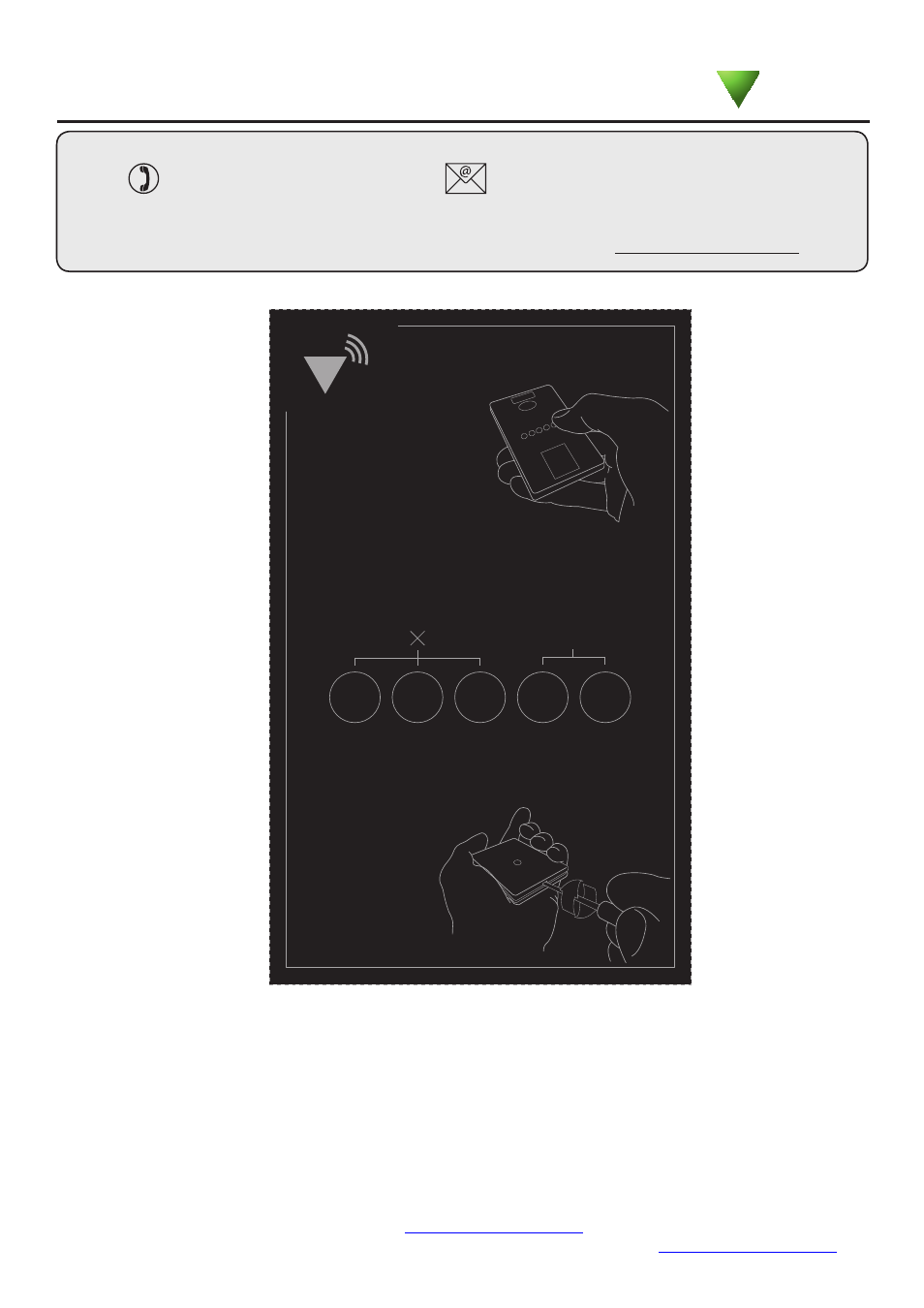

Hold the card at the
test distance from
the reader, press &
hold the button.
The lights will flash once to
indicate, battery condition & start of test.
Continue to hold the button, the lights will
display the read range condition. Perform
this test 3 times to confirm the field.
OK
Read Range Tester
Technical Support:
+44(0)1273 811011
[email protected]
To replace the battery, remove the screw,
insert a flat blade tool into the slot & twist
to release the casing. To close engage the
two clips & press together firmly.
Replace the screw.
The test card is used to determine the range of the 125 kHz P series reader and its ability to transmit
data to a hands free token. This will determine the range of the hands free system as the token must
first receive the interface address before sending its own token number to the interface itself.
If the tester shows a Green indication confirming receipt of the reader data but the hands free system
is still unreliable, then the interface will need to be relocated to a better position.
The above label is attached to the test card itself.
Please contact Technical Support or see the website if you require any further assistance.
AN1082 - Hands free - How does it work? < http://paxton.info/815 >
AN1091 - How to achieve the best read range with hands free equipment < http://paxton.info/867 >
