Paxton Net2 Evaluation Kit - Manual

Ins-30108 Net2 Evaluation Kit
20/11/2009
Quickstart guide

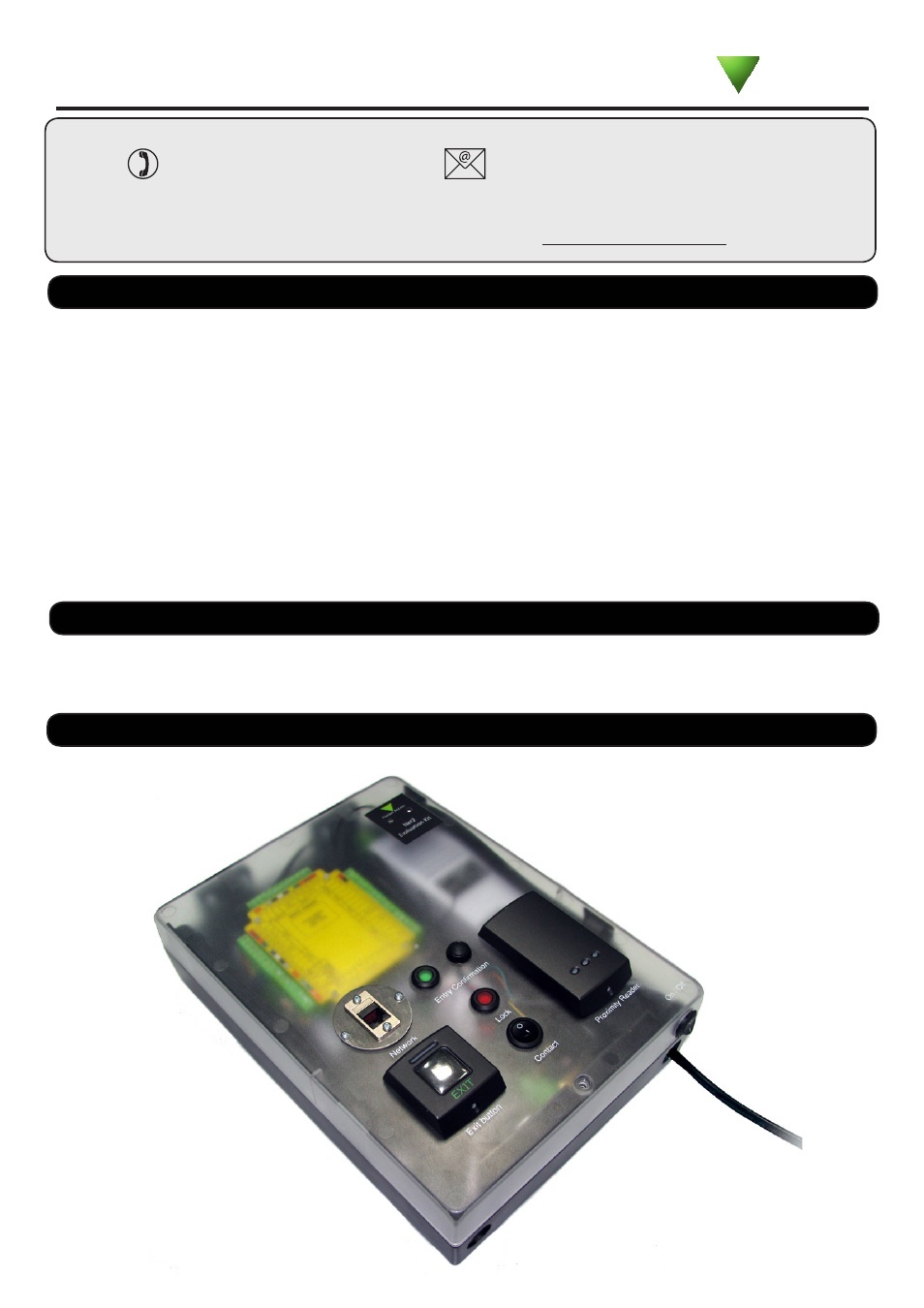

The evaluation kit contains the hardware required to show the layout of an operating Net2 system.
The unit is based on a Paxton power supply housing arranged as it would be in a live installation.
A hands free interface is located beneath the Net2 classic ACU.
To power the unit, remove the lid holding screw and plug the mains cable into the power supply connection. The
cable may be tied to the base if required. Close and secure the lid.
Power on the unit by means of the front switch and the power LED should illuminate. The ACU should display 5v,
12v and a flashing OK LED.
Connect your PC to the Network port and set up the ethernet connection as per the instructions on page 2.
P series reader
On/Off
Switch
Power LED
Exit button
A full range of application notes and tutorials are available to guide you through the set-up and operation of the
Net2 system. - Just click on the Documentation icon on the Net2 welcome screen for the complete list.
Documentation
AC Mains
Connection
Technical Support
Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT)
Saturday from 09:00 - 13:00 (GMT)
01273 811011 [email protected]
Entry confirmation button
Door contact switch
Door lock LED indicator
Network
connection for a PC
Features
Hands free interface
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/
