Applications 12
Applications

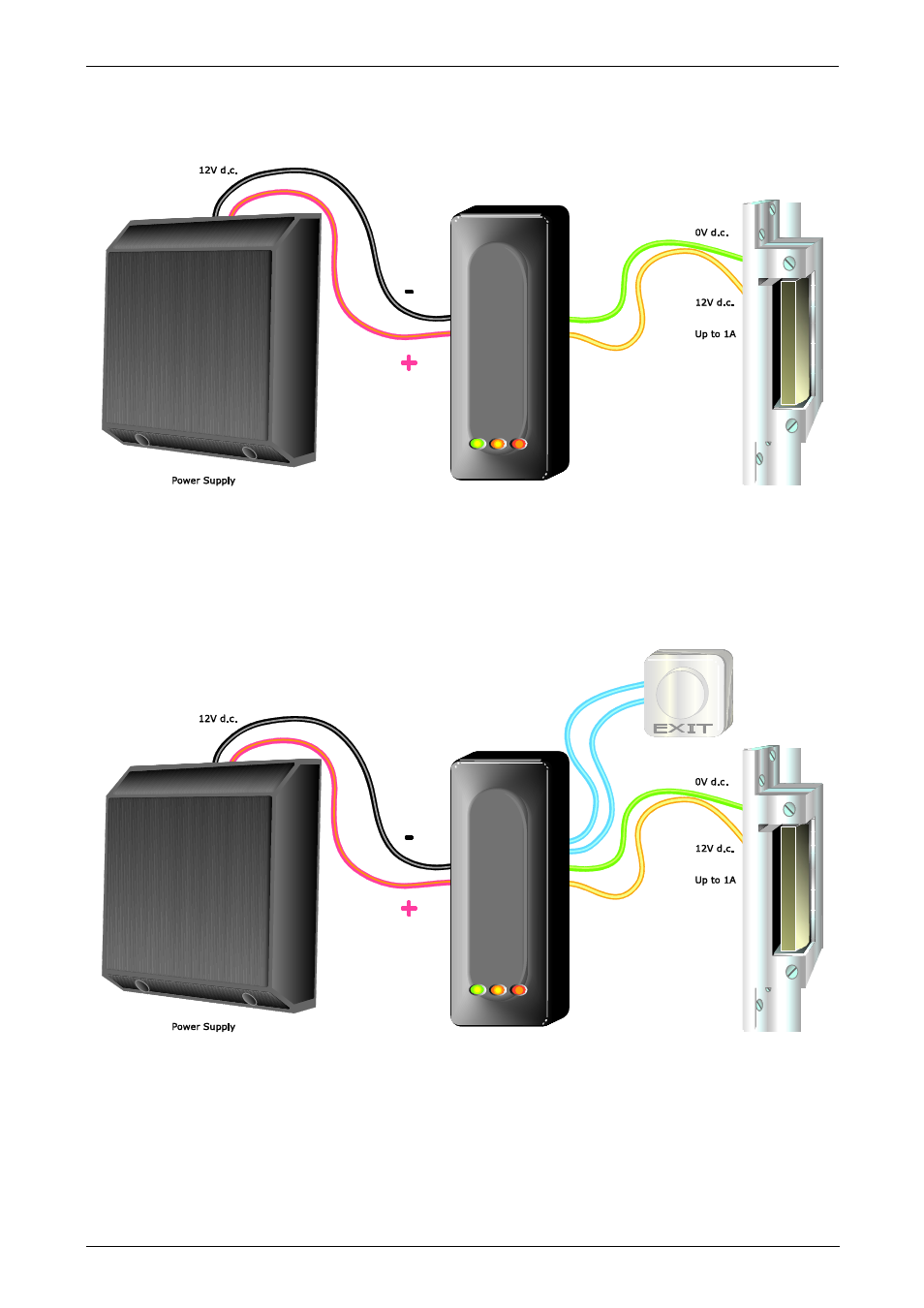

Standard Installation
If the correct token is presented to the reader, the release is powered and the door unlocks. The lock output
can drive a 12V dc load directly up to 500mA continuously or 750mA for 7 seconds. Positive wire is yellow.
Total load must not exceed PSU.
Exit button
A standard bell push button (push-to-make) can be used to provide electronic exit. When the button is
pressed the door’s electric release is activated. Any number of exit buttons can be fitted. The exit button can
be connected to an entryphone but only via voltage free contacts.
