Presenting a valid user token to the unit will cause the LED to briefly flash Green and the door will unlock.
The presentation of a barred or unknown user token is indicted by a Red LED display.
The external handle is only engaged once access has been granted. The inside handle is always engaged.
Normal Operation

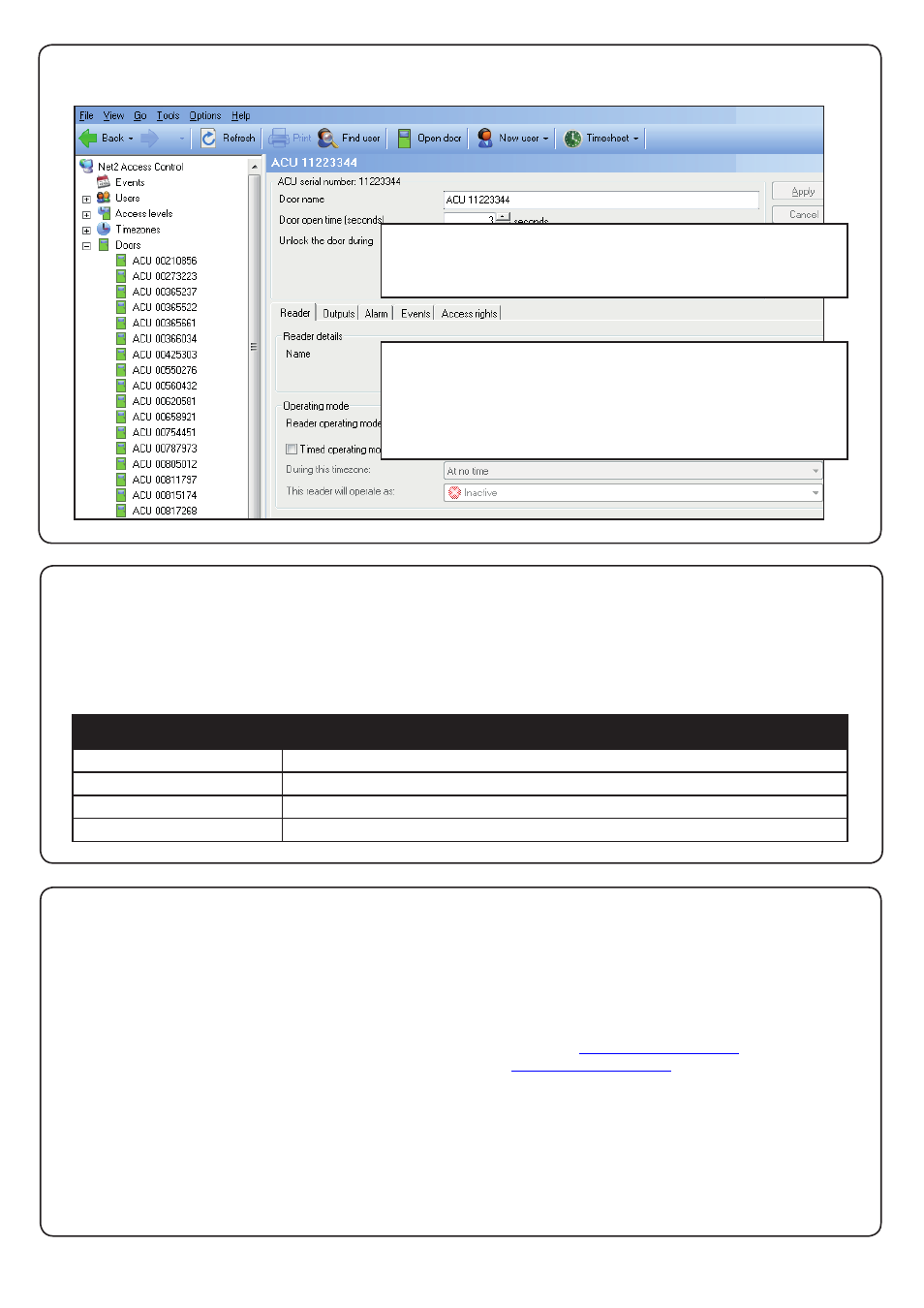

Software Configuration
Reader: Local settings for the reader.
Output: Configures the lock for timed release or toggle mode.
Alarm: Enables/Disables the door alarm functions.
(requires contact switch)
Events: Shows the events for this control unit only.
Access Rights: Lists users who have access through this door.
Door name: Name the Door.
Door open time: Set the door open time.
Unlock the Door during: Holds the door unlocked during this
timezone. - Set to 'At No Time' for normal user operation.
Red flash
Red and Green flash together
A valid user card has been presented and the handle is engaged
An invalid user card has been presented - No access granted
LED indications
Green flash
The unit is configuring - Please wait.
The access control unit connects to the Net2 system using Paxton Net2Air proprietary wireless technology
through a Net2Air bridge.
Radio signals do not always behave as you might expect. For example, a mobile phone that displays a full signal
on one part of the site will lose signal completely only a few metres away.
See also: X AN1095 - Net2 wireless access control - How does it work? < http://paxton.info/974 >
X AN1096 - How to plan a Net2 wireless installation < http://paxton.info/975 >
Net2Air wireless communication
Radio frequency
This product should not be installed within 3 metres of other wireless equipment operating on a 2.4Ghz
frequency. To ensure optimum performance other wireless networks should avoid WiFi channels 11, 12 and 13
to reduce the possibility of interference.
Red and Green flash alternately
The unit is not bound to a bridge.
